GRID 16W–36W Surface-Mounted LED Downlight
Tax excluded. Shipping calculated at checkout
GRID SURFACE · 16W / 36W
GRID Surface is a square surface-mounted LED downlight with 16W and 36W optical layouts. Choose a 24° or 38° beam, a white or black body, and fixed 3000K, 4000K or 6000K light with a True LED driver. CRI is 80+.

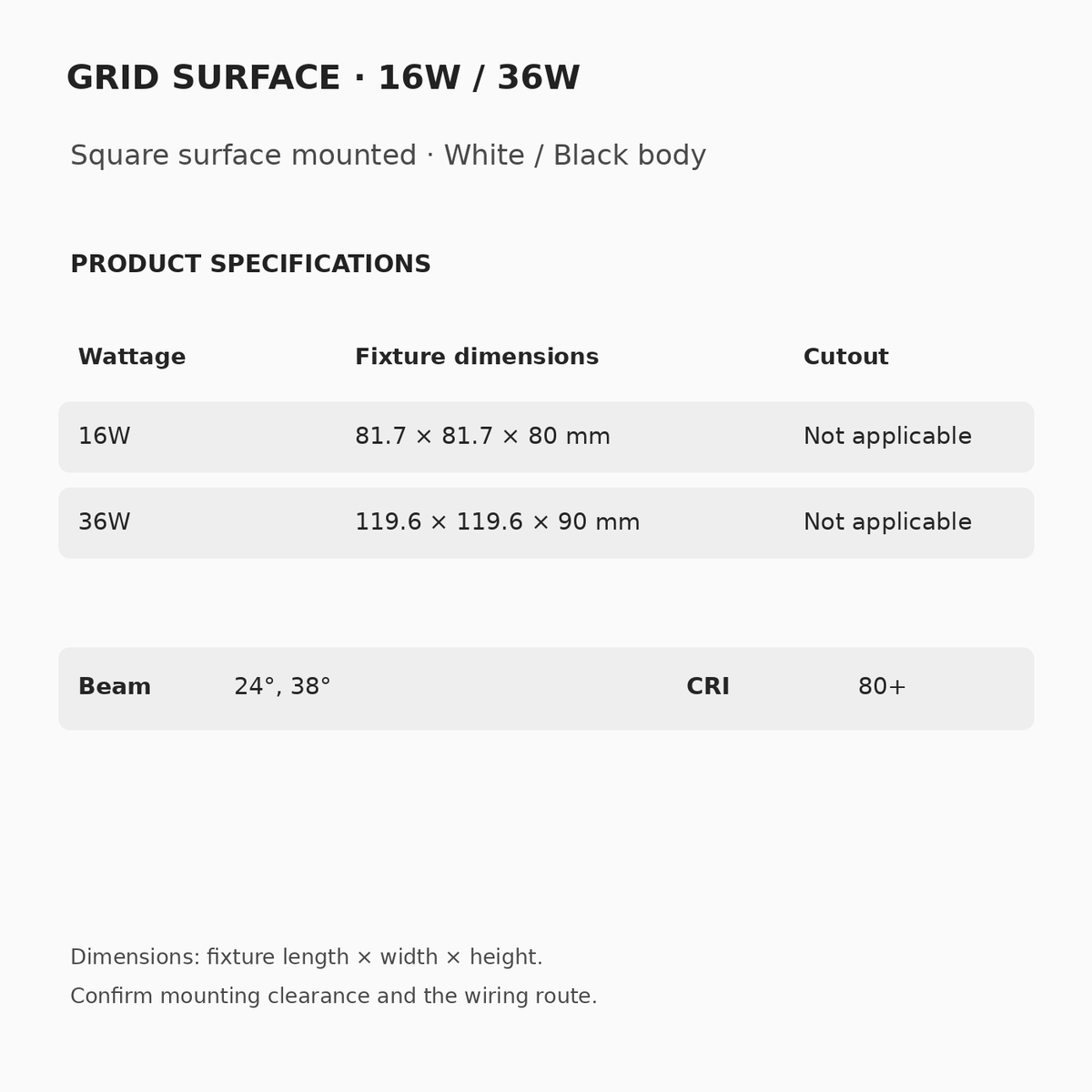

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 16W | 81.7 × 81.7 × 80 mm | Not applicable |
| 36W | 119.6 × 119.6 × 90 mm | Not applicable |
Beam options: 24°, 38°. CRI: 80+. These specifications apply to every listed wattage.
Surface mounting; no recessed ceiling cutout applies. Listed fixture length × width × height is 81.7 × 81.7 × 80 mm for 16W and 119.6 × 119.6 × 90 mm for 36W. Confirm mounting clearance and the wiring route before installation. Allow separate space for the selected driver, wiring and installation clearance.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

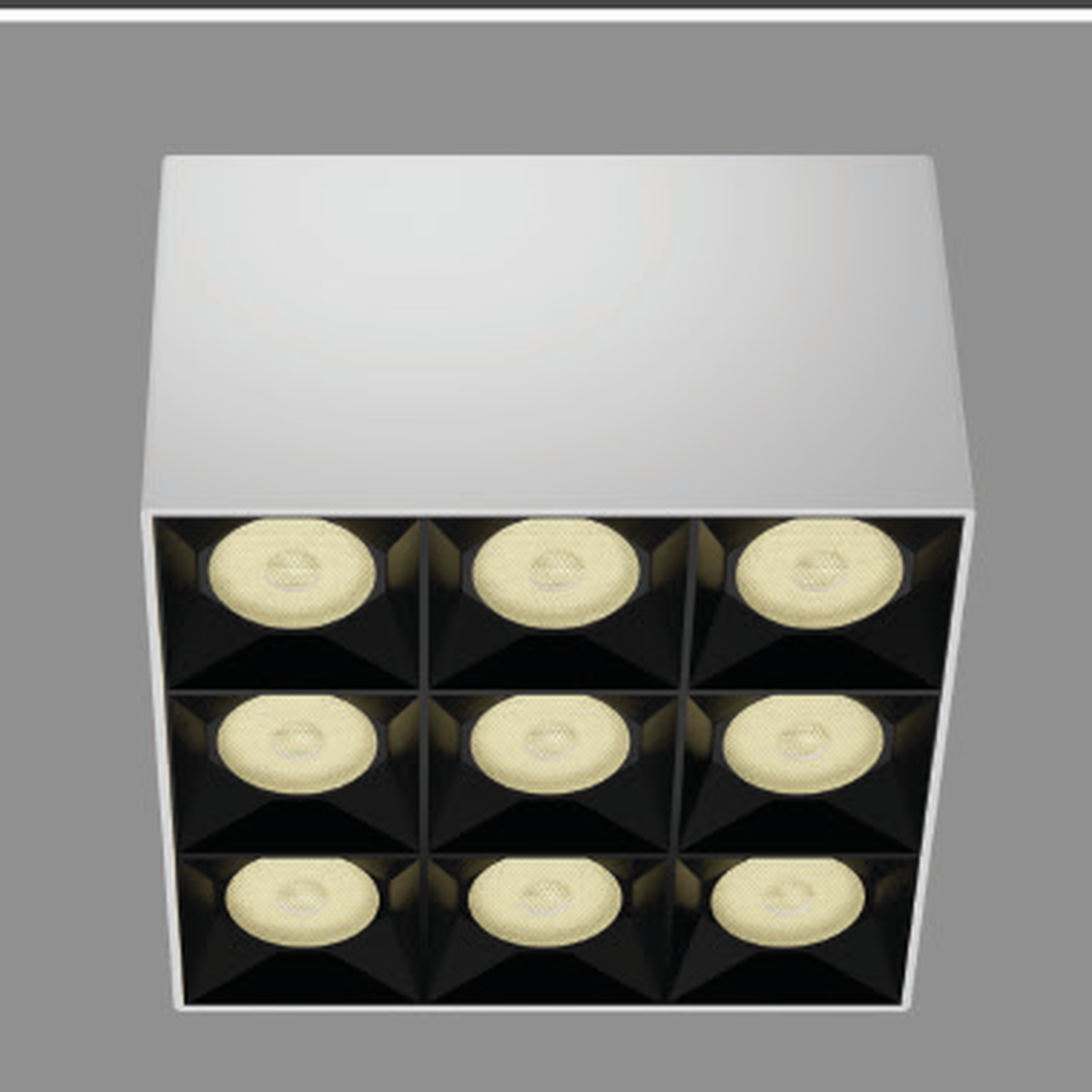

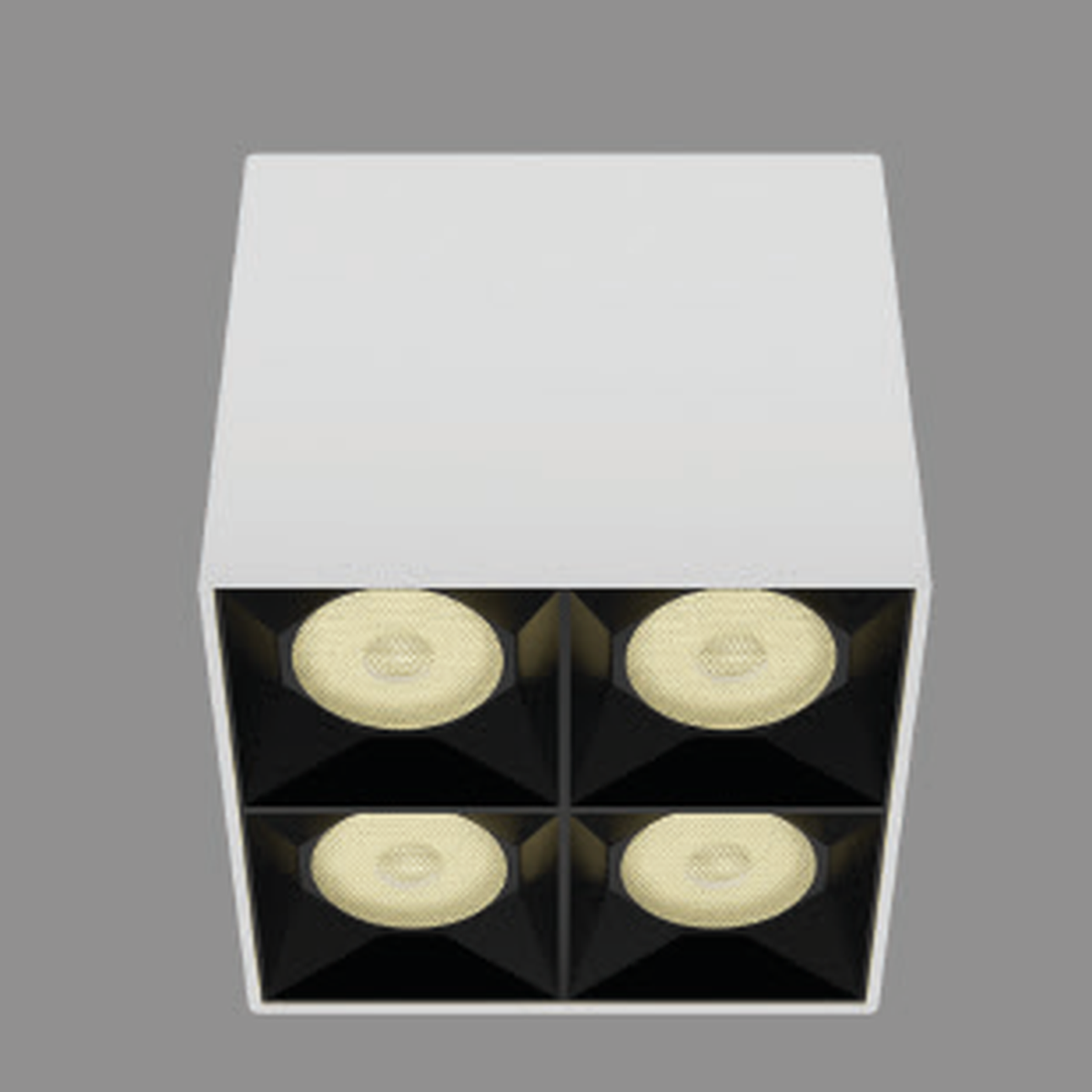

The original catalogue labels separate 16W-SF and 36W-SF white-body photographs. Each photograph is assigned only to the matching white-body wattage. Black-body photographs are unavailable; the gallery does not show the selected black finish.
Light colour and control
- Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 16W, 36W.
Only fixed-white True-driver configurations are offered for these surface models. RF, smart and DALI options are not priced in the source.
Configuration prices excluding GST
16W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹5,252.50 |
| CCT-RF remote | Not offered |
| Alexa/Tuya smart | Not offered |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
36W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹7,452.50 |
| CCT-RF remote | Not offered |
| Alexa/Tuya smart | Not offered |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
Prices apply to the listed body finishes and beam angles. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Confirm fitting dimensions, mounting clearance and the wiring route with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
