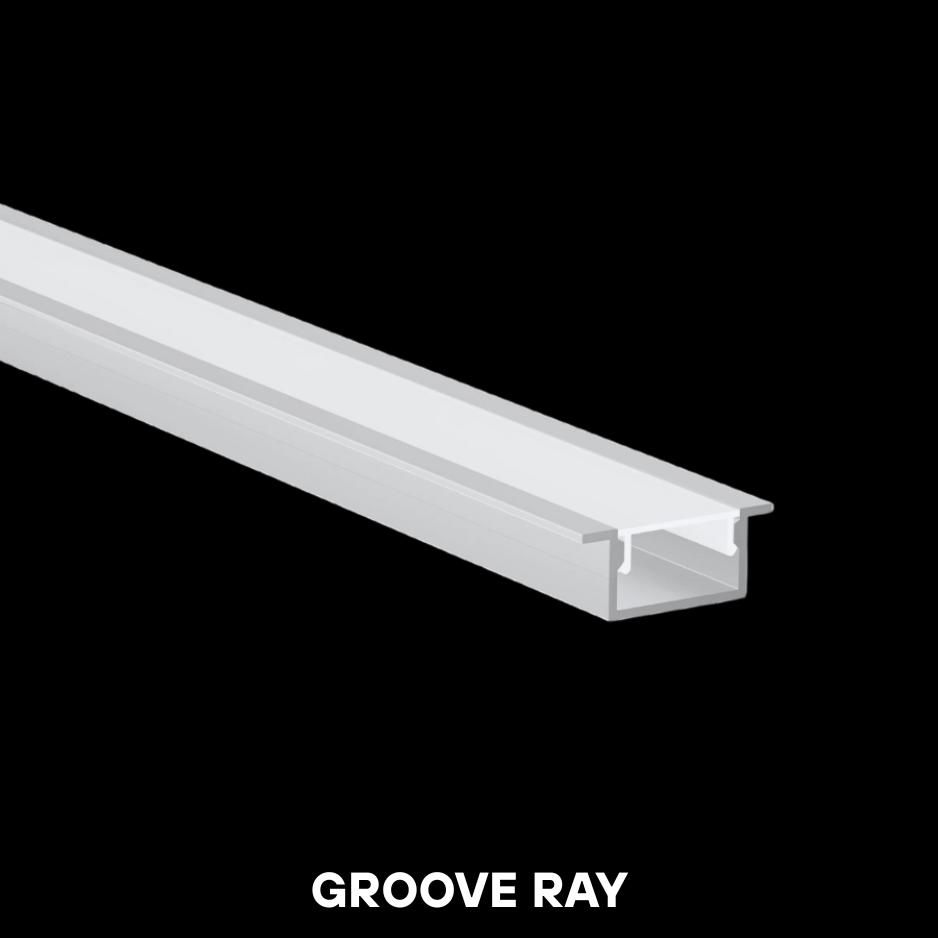

GROOVE RAY 10MM

The GROOVE RAY 10MM is a compact recessed LED aluminum profile, engineered for seamless integration into surfaces such as wood, gypsum, or furniture panels. It offers a clean, streamlined look while delivering high-quality linear lighting with wide-angle illumination.

Key Dimensions:

• Outer Width: 14 mm

• Recess Width (Cutout): >10 mm

• Height: 6 mm

Technical Specifications:

Product Features:

• Sleek Recessed Mounting – Designed for flush, integrated installation with minimal surface projection

• Frosted Diffuser – Offers smooth and uniform light diffusion for glare-free performance

• Aluminum Body – Enhances durability and acts as a heat sink for efficient thermal management

• Discreet Lighting – Ideal for applications requiring elegant, subtle illumination

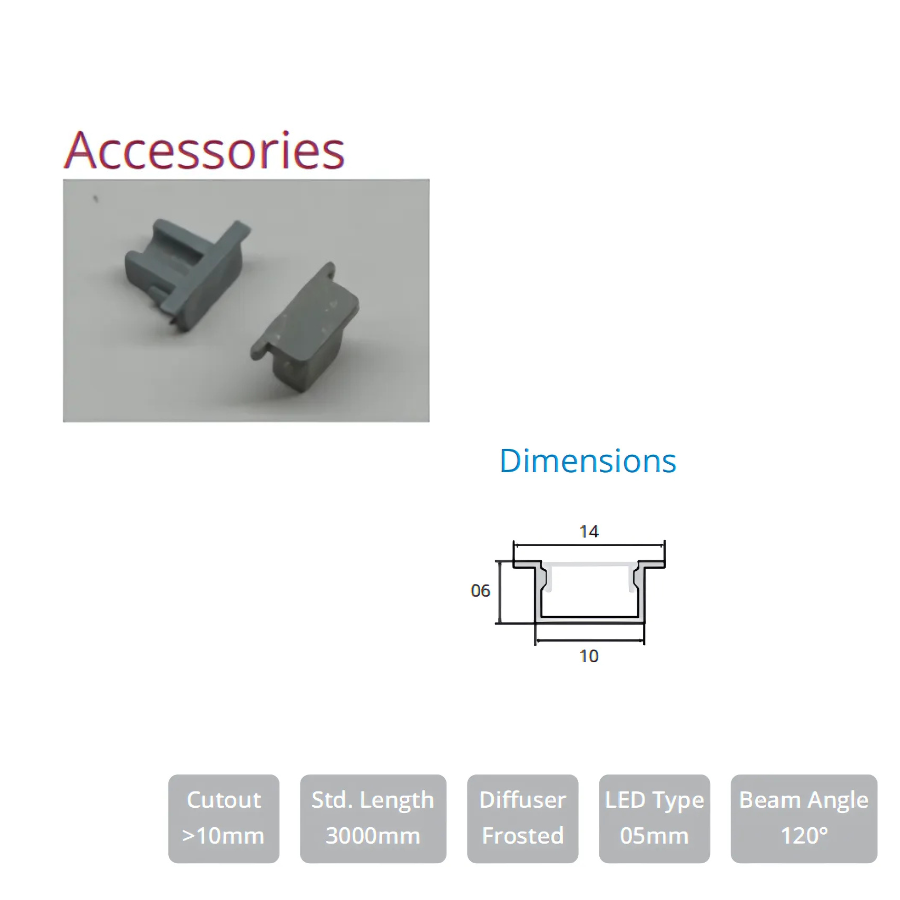

Accessories Included:

• End Caps – Neatly finish the installation and protect the LED strip ends
  (Shown in the image: 2 plastic end caps)

Applications:

• Furniture and cabinetry integration

• Shelves, wardrobes, and drawers

• Retail display fixtures

• Architectural grooves or wall coves
