HELIX 7W, 12W & 18W Round Recessed Downlight
Tax excluded. Shipping calculated at checkout
HELIX · 7W, 12W & 18W
HELIX is a round recessed LED downlight available in 7W, 12W and 18W, with CRI 80+ and 24°, 36° or 60° beam options. Choose the wattage, a white or black body and the light-colour and control configuration for your installation.

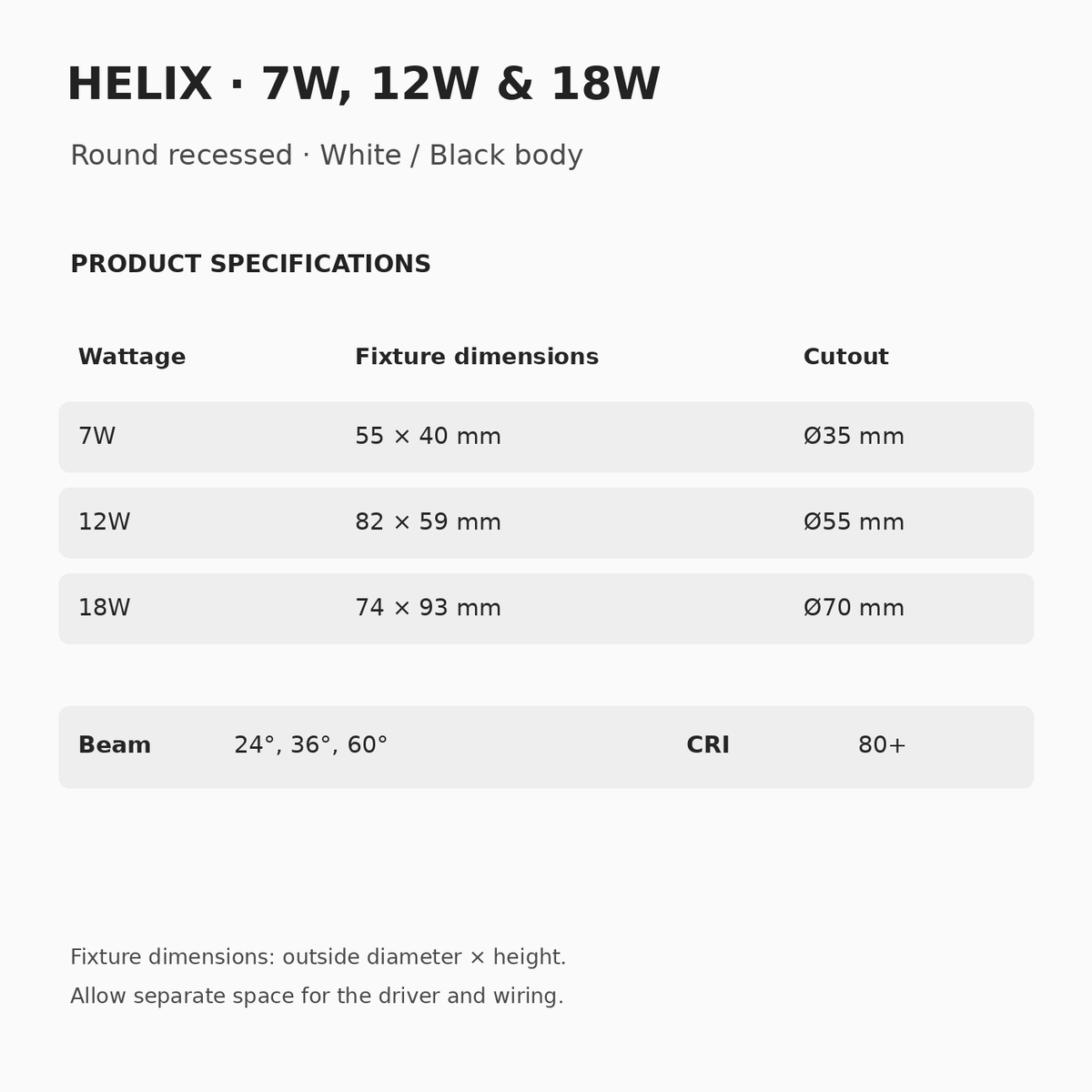

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 7W | 55 × 40 mm | Ø35 mm |
| 12W | 82 × 59 mm | Ø55 mm |
| 18W | 74 × 93 mm | Ø70 mm |
Beam options: 24°, 36°, 60°. CRI: 80+. These specifications apply to every listed wattage.
Recessed mounting. Fixture dimensions are outside diameter × height. The outside diameters listed for 12W and 18W are 82 mm and 74 mm respectively; check the selected fitting and ceiling cutout with your installer before cutting. Allow separate space for the selected driver, wiring and installation clearance.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

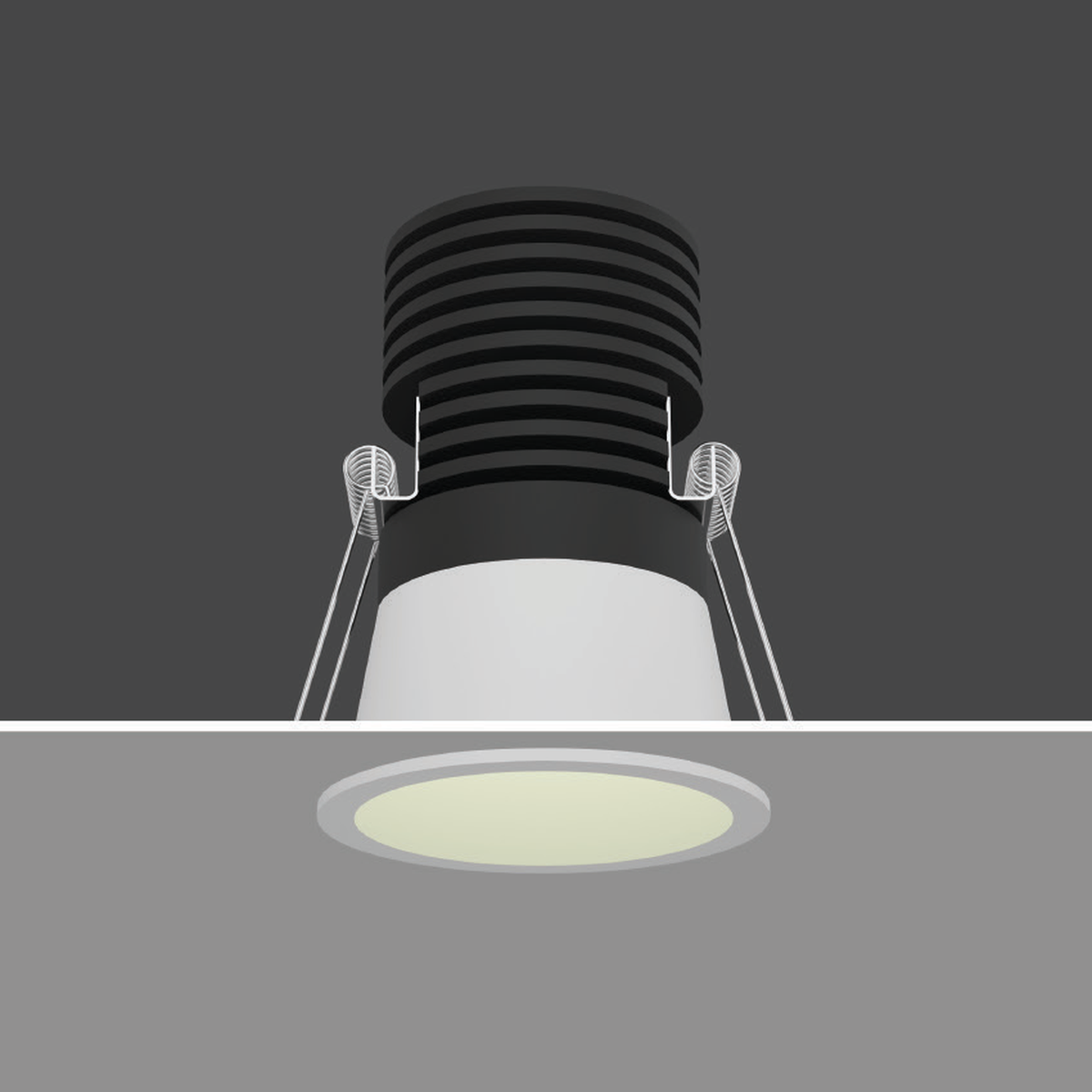

The product image is a white-body HELIX installation reference; the exact wattage shown is not identified. A black-body reference image is not available, so the gallery image does not show the selected black finish.
Light colour and control
- Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 7W, 12W, 18W.
- CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 7W, 12W, 18W.
- Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 7W, 12W, 18W.
- DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 7W, 12W, 18W.
- DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 7W, 12W, 18W.
DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.
Configuration prices excluding GST
7W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹1,529.00 |
| CCT-RF remote | ₹3,656.40 |
| Alexa/Tuya smart | ₹3,656.40 |
| DALI / True DT6 | ₹3,808.20 |
| DALI Tunable / True DT8 | ₹5,261.30 |
12W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹1,666.50 |
| CCT-RF remote | ₹3,093.20 |
| Alexa/Tuya smart | ₹3,298.90 |
| DALI / True DT6 | ₹3,905.00 |
| DALI Tunable / True DT8 | ₹5,508.80 |
18W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹3,041.50 |
| CCT-RF remote | ₹5,359.20 |
| Alexa/Tuya smart | ₹5,566.00 |
| DALI / True DT6 | ₹5,639.70 |
| DALI Tunable / True DT8 | ₹7,598.80 |
Prices apply to the listed body finishes and beam angles. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Check the selected wattage’s ceiling cutout, fitting dimensions and available ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
