INTRO 3W–15W Adjustable Recessed Downlight

INTRO is an adjustable recessed LED downlight series in white aluminium, available as a round or square 3W fitting and rectangular 6W, 9W, 12W and 15W fittings with two to five heads.

• Light colour: 3000K or 4000K.
• Optics: 35° beam, 40° tilt and CRI ≥80.
• Protection: IP20.
• Light source: Philips LED in the 3W fittings; Bridgelux LED in the 6W–15W fittings.

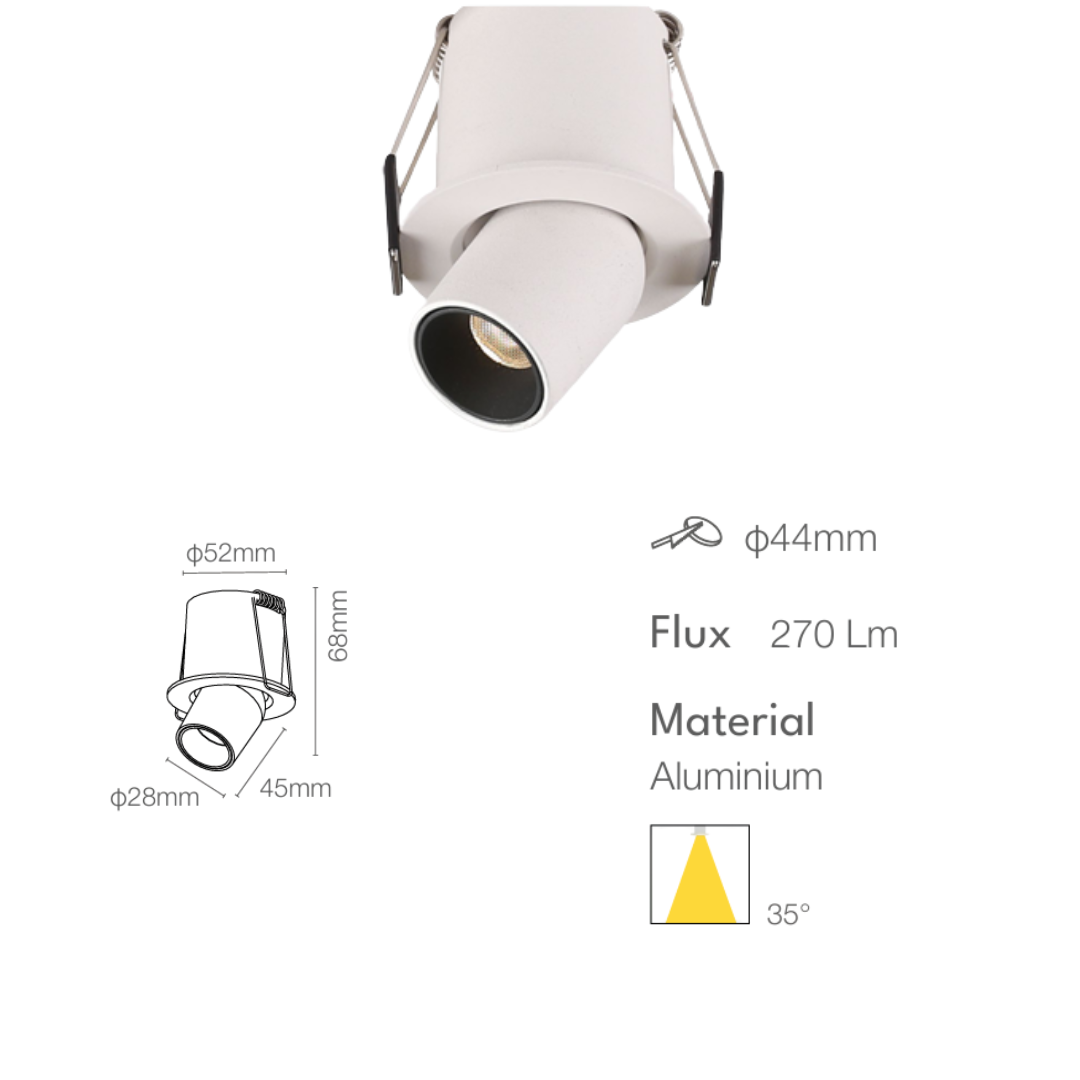

• 3W round: Ø52 × 68 mm fitting; Ø44 mm ceiling cutout; 270 lm.

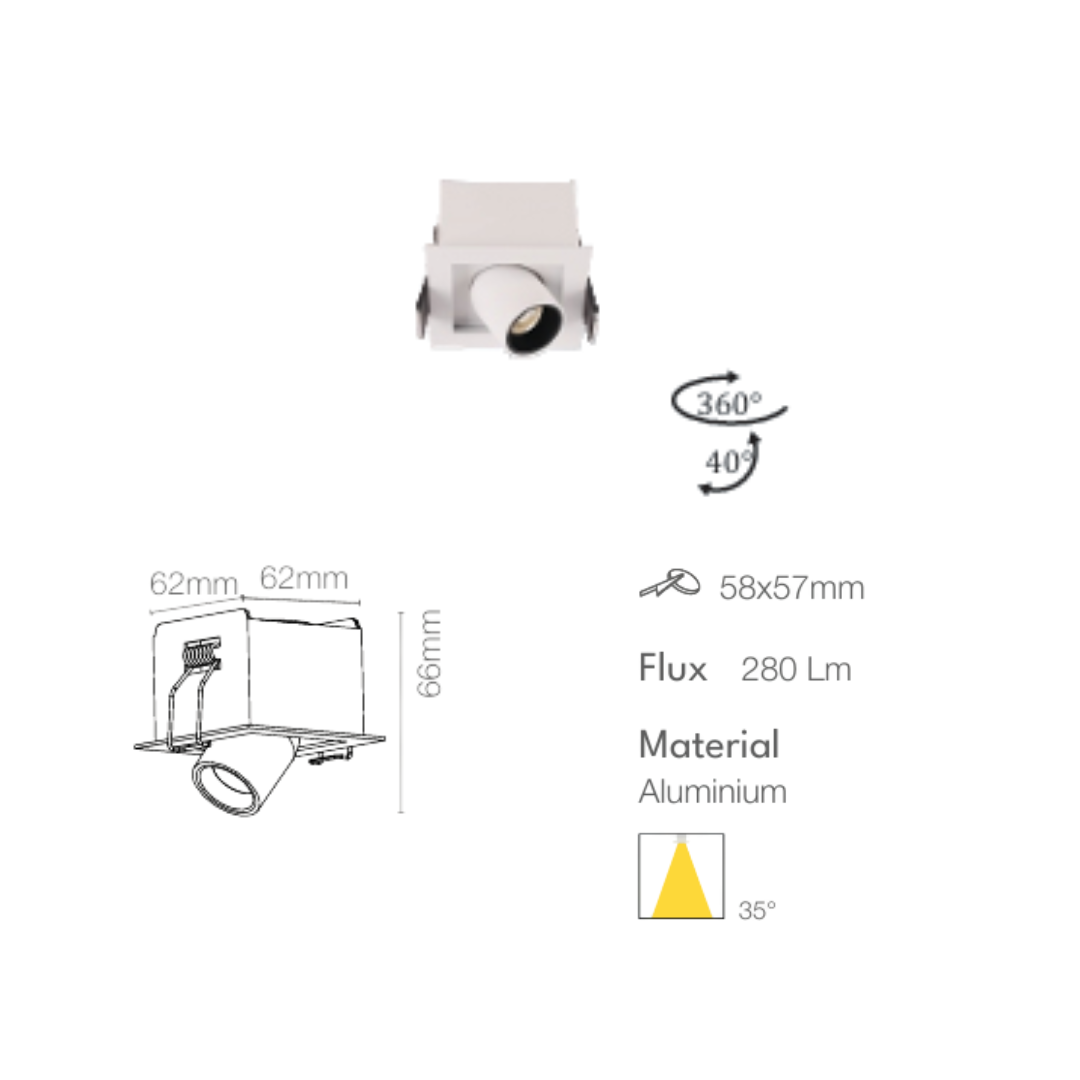

• 3W square: 62 × 62 × 66 mm fitting; 58 × 57 mm ceiling cutout; 280 lm.

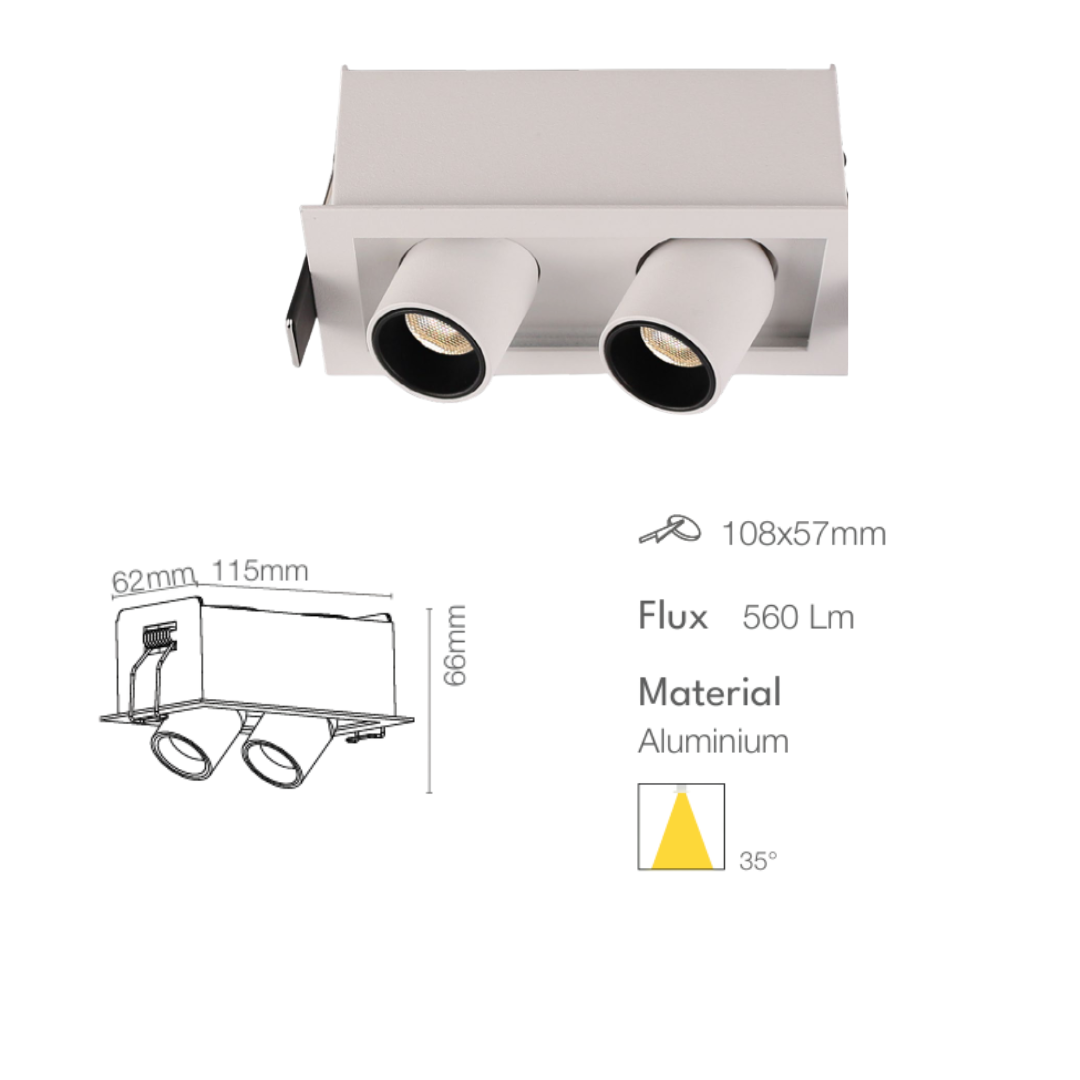

• 6W, 2 heads: 115 × 62 × 66 mm fitting; 108 × 57 mm ceiling cutout; 560 lm.

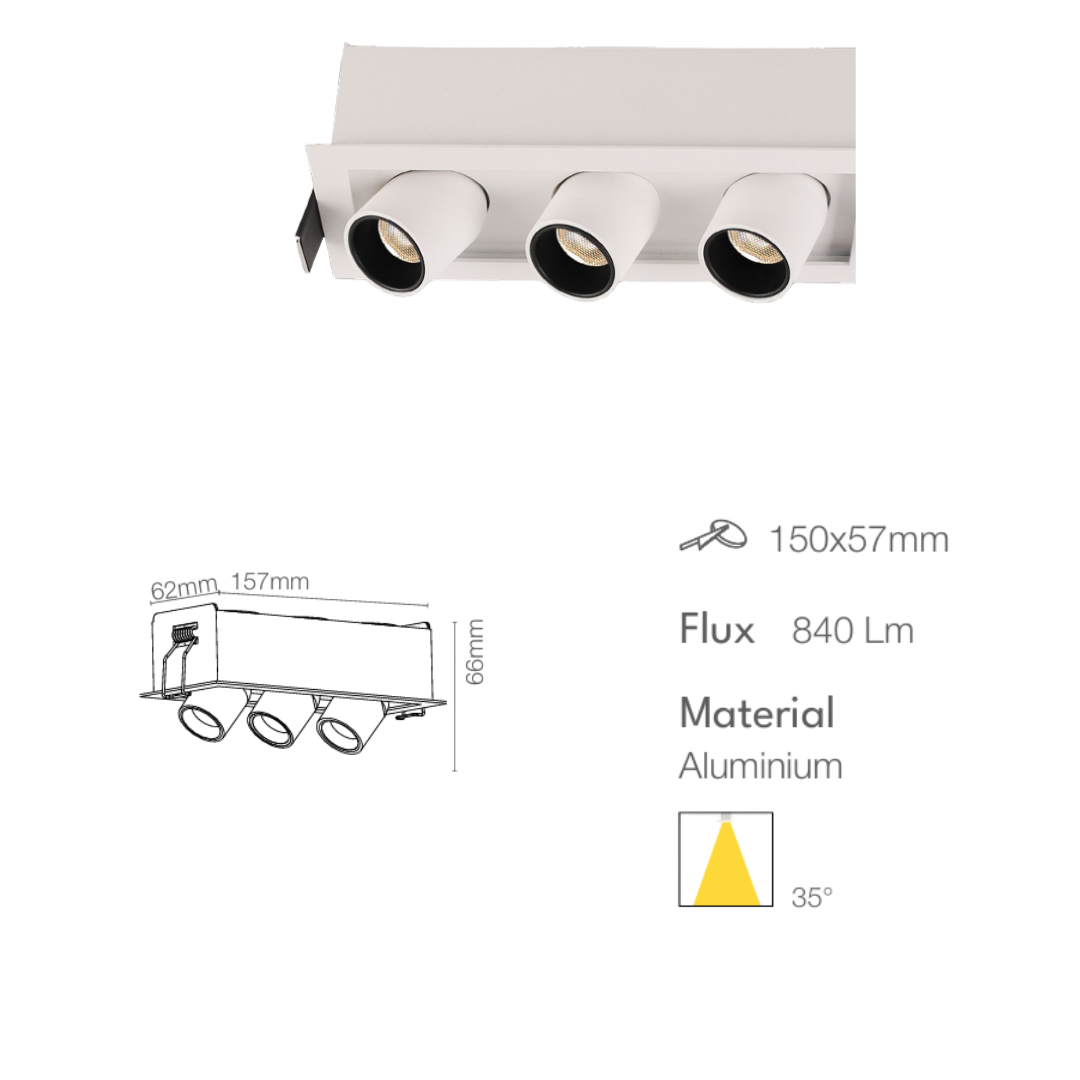

• 9W, 3 heads: 157 × 62 × 66 mm fitting; 150 × 57 mm ceiling cutout; 840 lm.

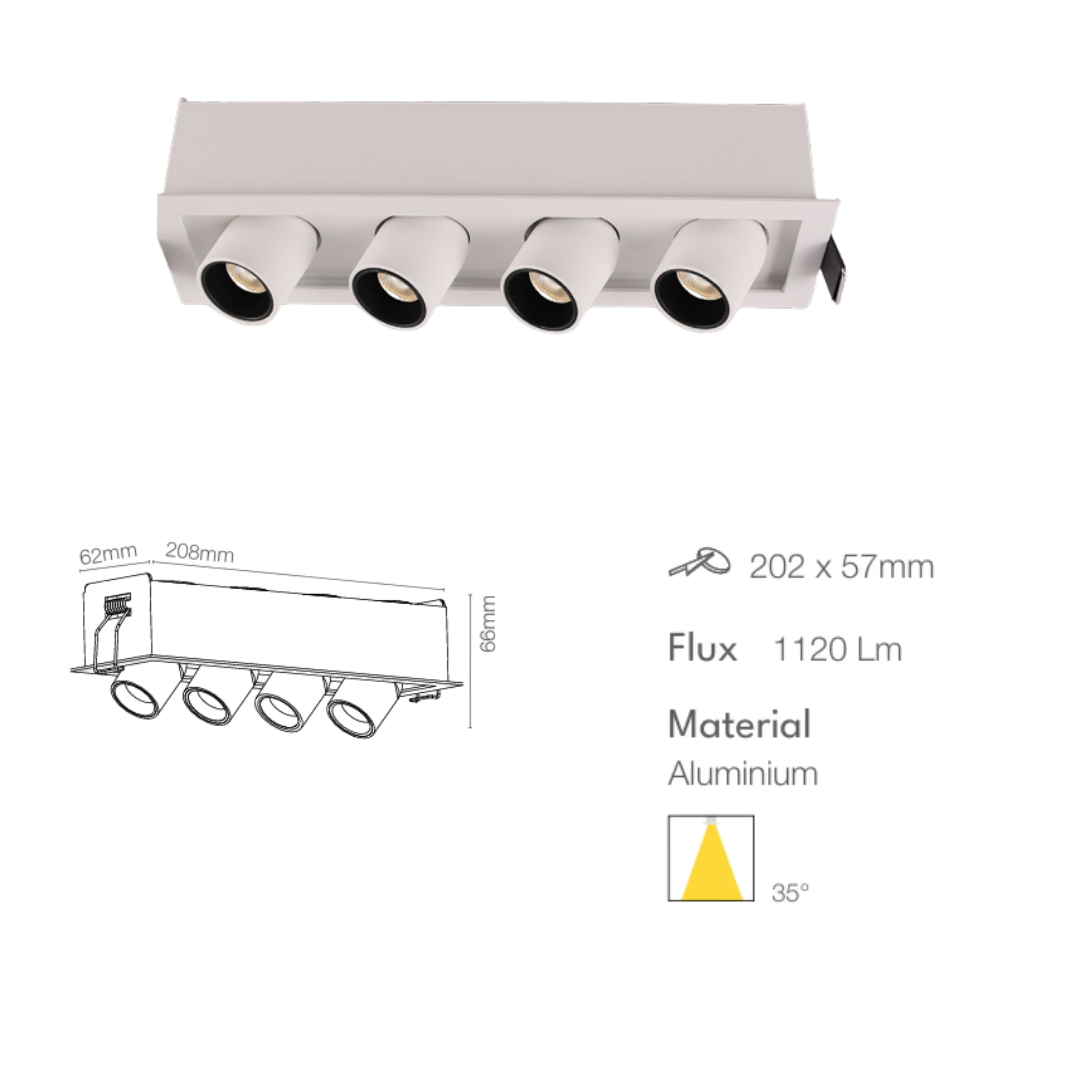

• 12W, 4 heads: 208 × 62 × 66 mm fitting; 202 × 57 mm ceiling cutout; 1120 lm.

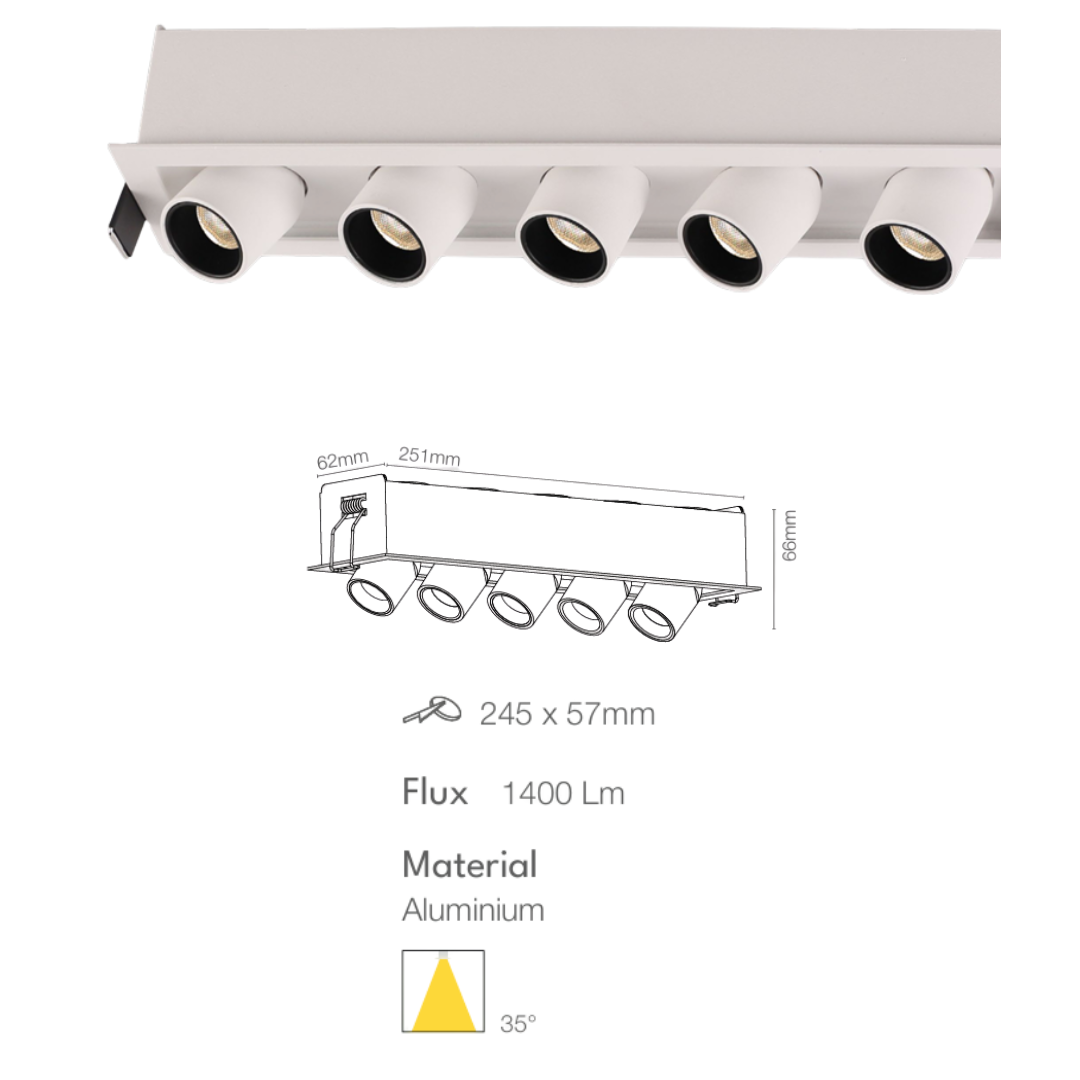

• 15W, 5 heads: 251 × 62 × 66 mm fitting; 245 × 57 mm ceiling cutout; 1400 lm.

Fitting dimensions are diameter × height for the round model and length × width × height for the square and rectangular models. Check the selected fitting size and ceiling cutout before installation.
