IOTA-02 3W–25W Compact Recessed Downlight
Tax excluded. Shipping calculated at checkout
IOTA-02 · 3W–25W
IOTA-02 is a compact recessed LED downlight family in 3W, 5W, 7W, 10W, 12W, 16W and 25W, with a 36° beam, CRI 80+ and white or black body. Choose fixed-white True-driver, RF remote or Alexa/Tuya smart configurations, plus True DALI DT6 and DT8 for 10W–25W.

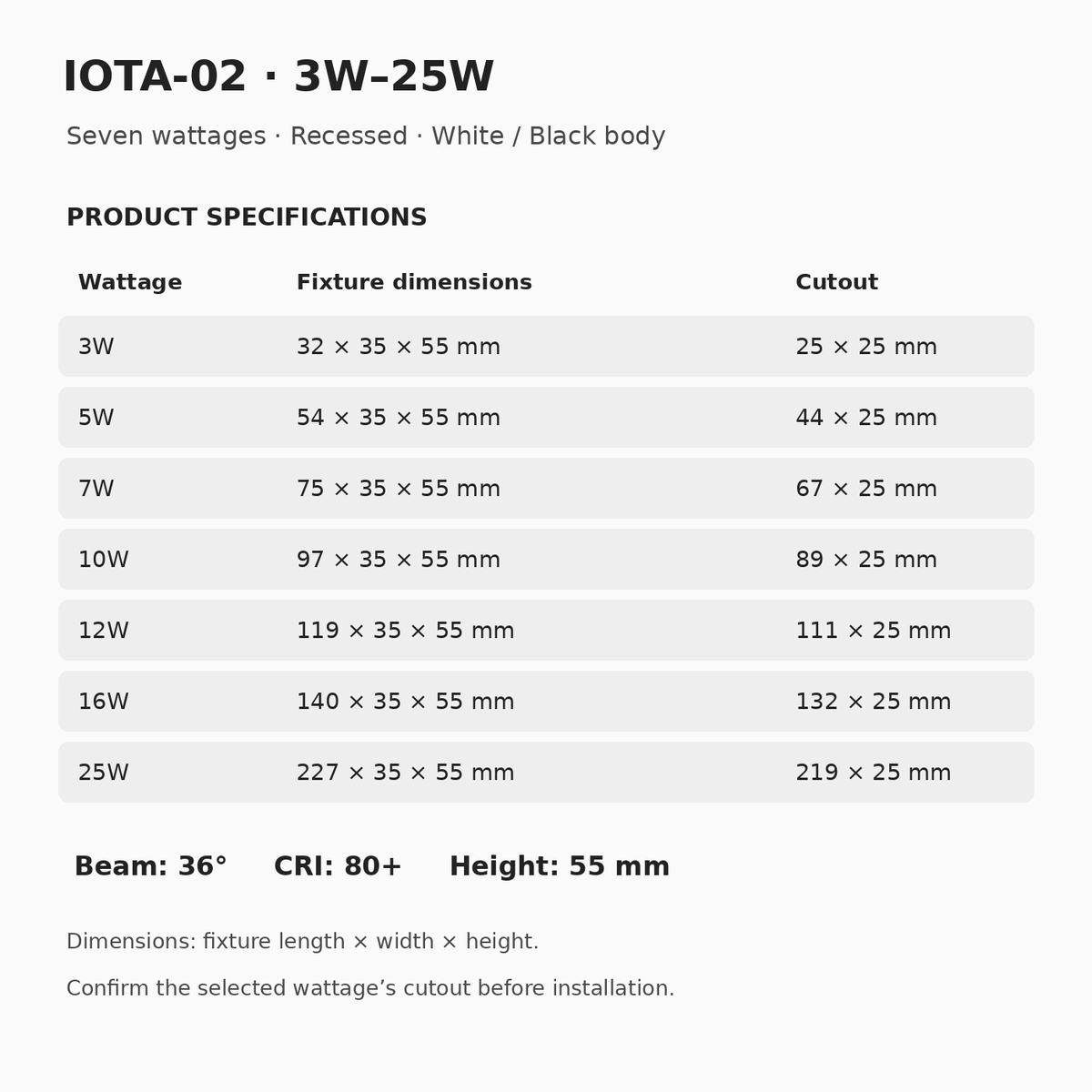

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 3W | 32 × 35 × 55 mm | 25 × 25 mm |
| 5W | 54 × 35 × 55 mm | 44 × 25 mm |
| 7W | 75 × 35 × 55 mm | 67 × 25 mm |
| 10W | 97 × 35 × 55 mm | 89 × 25 mm |
| 12W | 119 × 35 × 55 mm | 111 × 25 mm |
| 16W | 140 × 35 × 55 mm | 132 × 25 mm |
| 25W | 227 × 35 × 55 mm | 219 × 25 mm |
Beam options: 36°. CRI: 80+. These specifications apply to every listed wattage.
Dimensions are listed as fixture length × width × height. Every listed fitting is 55 mm high; width is 35 mm, except the 3W fitting has a 32 × 35 mm face. Match the wattage-specific dimensions and cutout in the table, and confirm the mounting template before cutting. Allow separate space for the selected driver, wiring and installation clearance.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

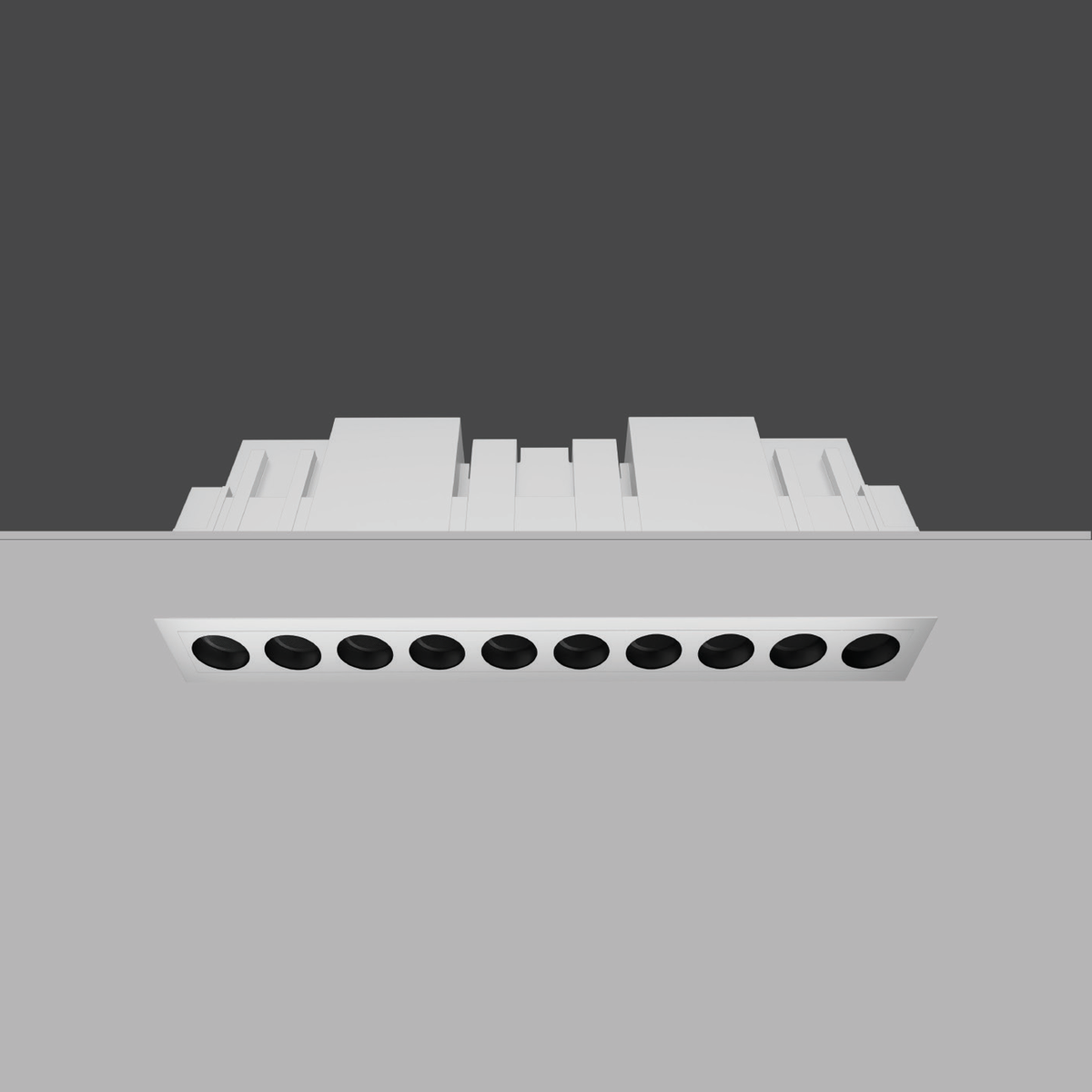

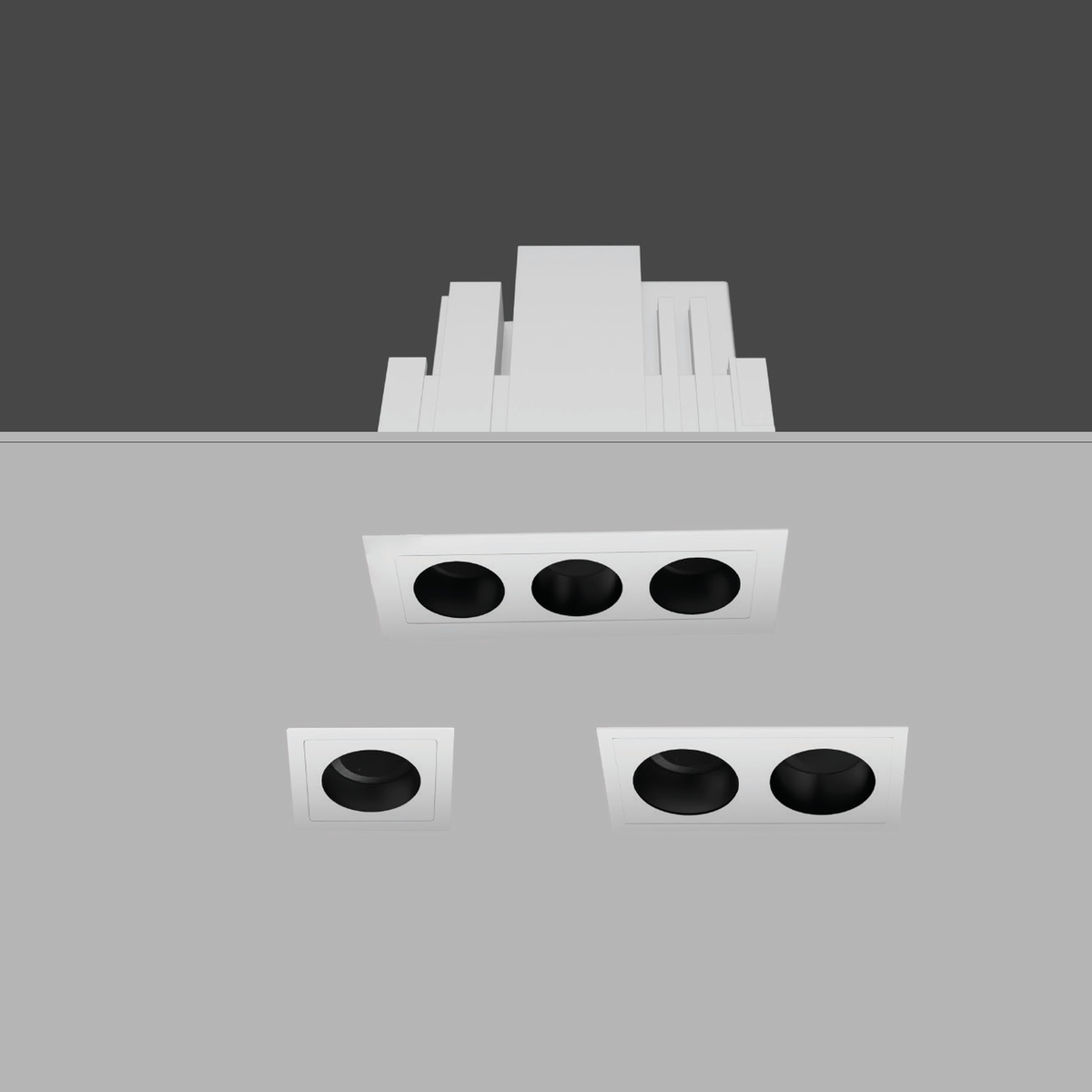

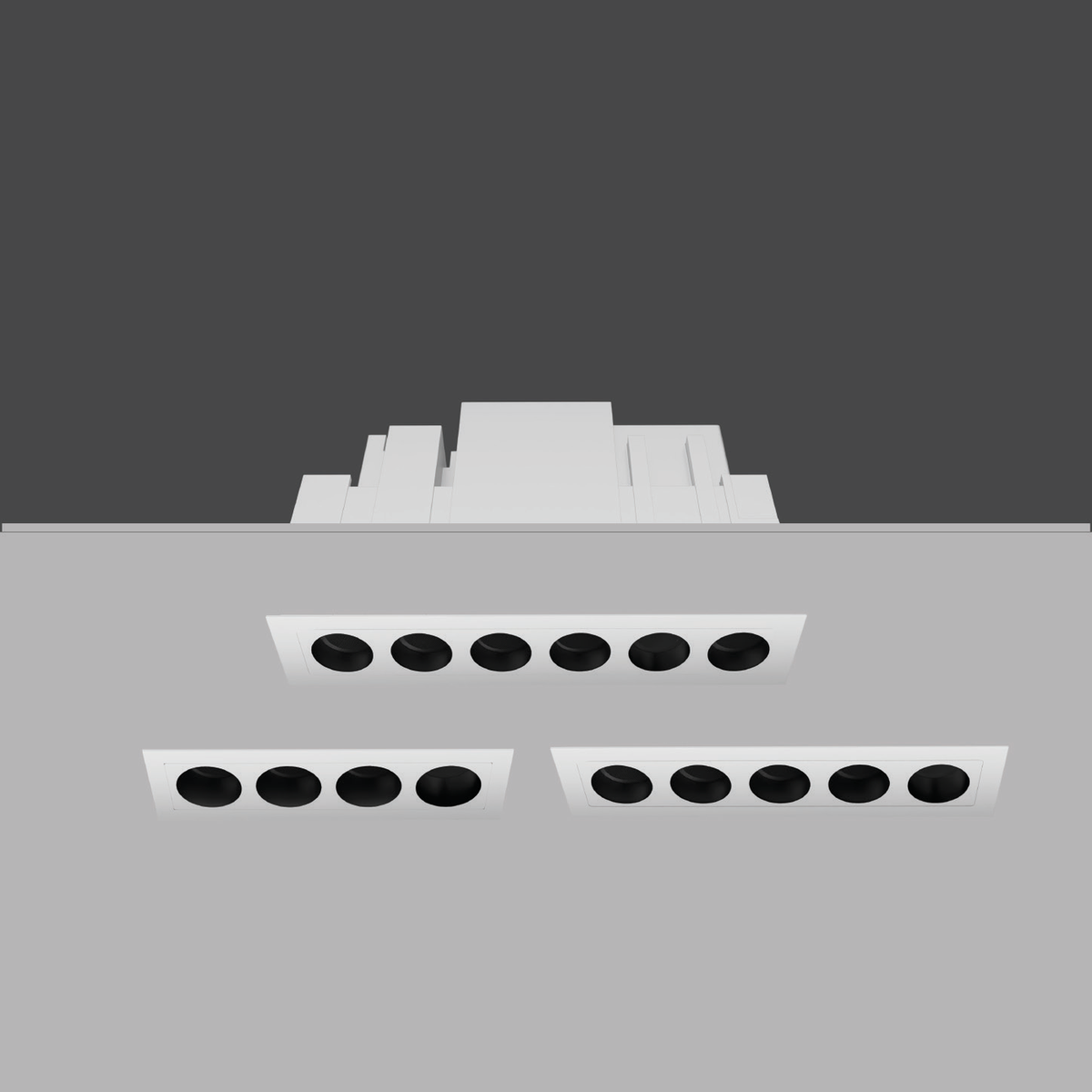

The original white-body family images show unlabelled optical layouts for the 3W–7W and 10W–16W ranges, so they are retained as unassigned references. The separate 25W white-body image is associated only with 25W white variants. Black-body photographs are unavailable.
Light colour and control
- Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 3W, 5W, 7W, 10W, 12W, 16W, 25W.
- CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 3W, 5W, 7W, 10W, 12W, 16W, 25W.
- Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 3W, 5W, 7W, 10W, 12W, 16W, 25W.
- DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 10W, 12W, 16W, 25W.
- DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 10W, 12W, 16W, 25W.
DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.
Configuration prices excluding GST
3W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹2,178.00 |
| CCT-RF remote | ₹4,578.20 |
| Alexa/Tuya smart | ₹4,578.20 |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
5W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹2,656.50 |
| CCT-RF remote | ₹5,177.70 |
| Alexa/Tuya smart | ₹5,177.70 |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
7W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹3,333.00 |
| CCT-RF remote | ₹5,975.20 |
| Alexa/Tuya smart | ₹5,975.20 |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
10W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹4,037.00 |
| CCT-RF remote | ₹6,140.20 |
| Alexa/Tuya smart | ₹6,345.90 |
| DALI / True DT6 | ₹6,275.50 |
| DALI Tunable / True DT8 | ₹8,096.00 |
12W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹4,911.50 |
| CCT-RF remote | ₹7,135.70 |
| Alexa/Tuya smart | ₹7,341.40 |
| DALI / True DT6 | ₹7,150.00 |
| DALI Tunable / True DT8 | ₹9,091.50 |
16W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹5,714.50 |
| CCT-RF remote | ₹9,020.00 |
| Alexa/Tuya smart | ₹9,226.80 |
| DALI / True DT6 | ₹8,312.70 |
| DALI Tunable / True DT8 | ₹10,730.50 |
25W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹7,711.00 |
| CCT-RF remote | ₹11,500.50 |
| Alexa/Tuya smart | ₹11,707.30 |
| DALI / True DT6 | ₹10,309.20 |
| DALI Tunable / True DT8 | ₹13,211.00 |
Prices apply to the listed body finishes. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Check the selected wattage’s ceiling cutout, fitting dimensions and available ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
