IOTA-T 6W–24W Linear Recessed Downlight
Tax excluded. Shipping calculated at checkout
IOTA-T · 6W / 12W / 24W
IOTA-T is a linear recessed LED downlight in 3 × 2W, 6 × 2W and 12 × 2W module layouts, equivalent to 6W, 12W and 24W total respectively. It offers a 30° beam, CRI 80+, a white or black body and the listed True-driver, RF, Smart, True DALI DT6 and True DALI DT8 configurations.

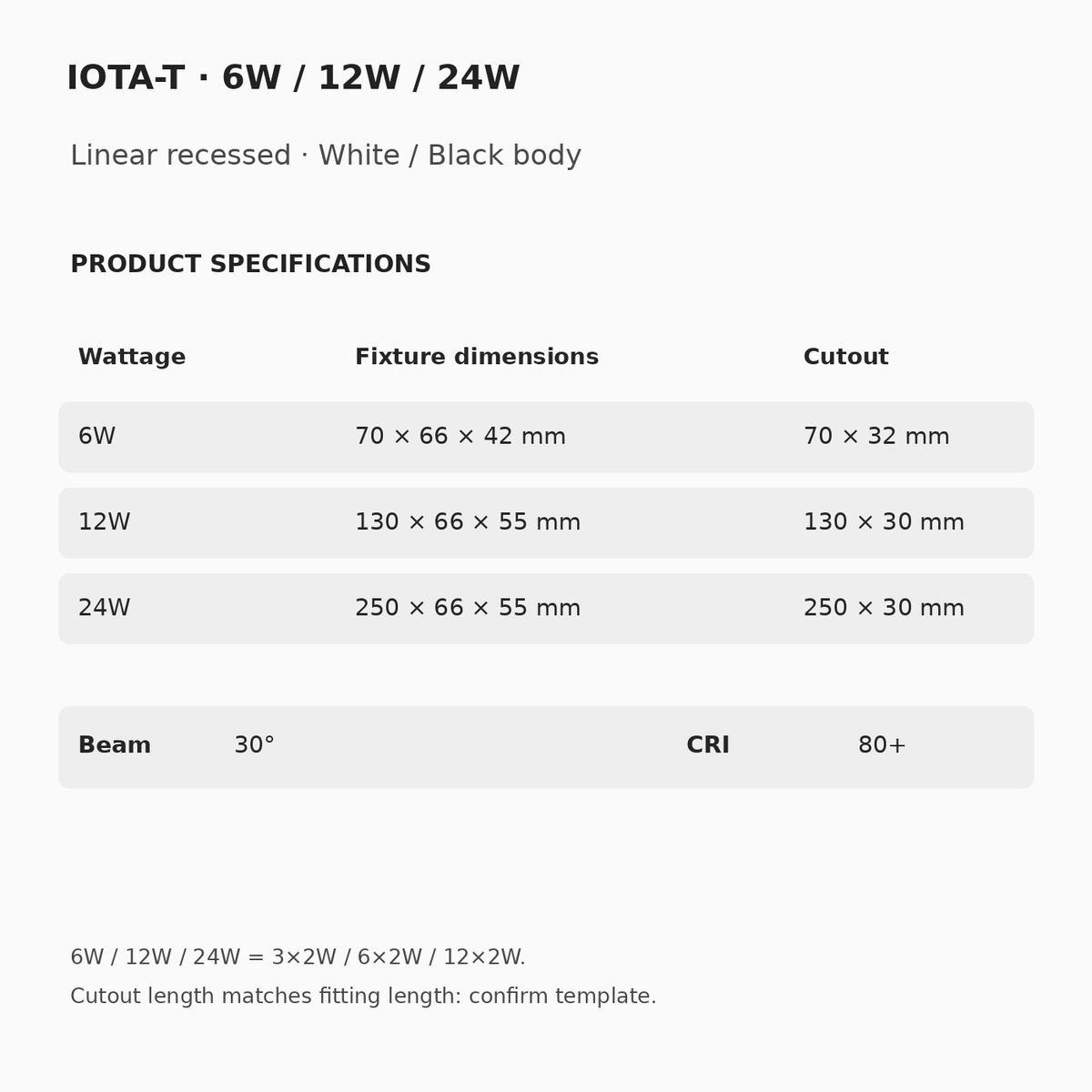

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 6W | 70 × 66 × 42 mm | 70 × 32 mm |
| 12W | 130 × 66 × 55 mm | 130 × 30 mm |
| 24W | 250 × 66 × 55 mm | 250 × 30 mm |
Beam options: 30°. CRI: 80+. These specifications apply to every listed wattage.
Dimensions are recorded as length × width × height. The source cutout length equals the stated fitting length for all three sizes. These values are preserved as printed; confirm the complete mounting template and installation profile before cutting or ordering. Allow separate space for the selected driver, wiring and installation clearance.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

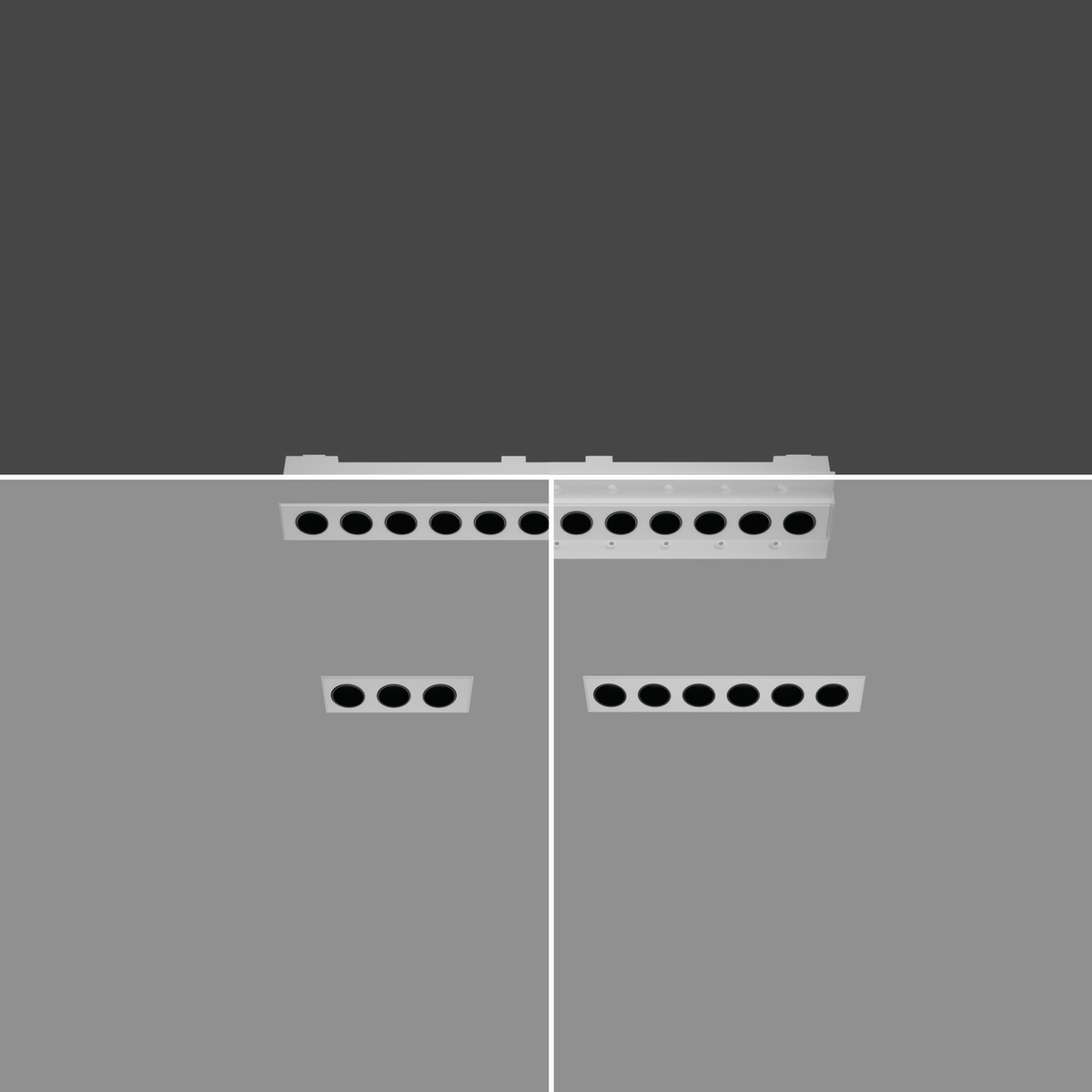

The original white-body family photograph shows finished and exposed installation views of the three optical layouts. It is retained as an unassigned family reference. No tilt-angle or adjustable-mechanism claim is made. Black-body photographs are unavailable.
Light colour and control
- Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 6W, 12W, 24W.
- CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 6W, 12W, 24W.
- Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 6W, 12W, 24W.
- DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 6W, 12W, 24W.
- DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 6W, 12W, 24W.
DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.
Configuration prices excluding GST
6W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹3,327.50 |
| CCT-RF remote | ₹6,332.70 |
| Alexa/Tuya smart | ₹6,332.70 |
| DALI / True DT6 | ₹5,606.70 |
| DALI Tunable / True DT8 | ₹7,628.50 |
12W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹5,197.50 |
| CCT-RF remote | ₹7,542.70 |
| Alexa/Tuya smart | ₹7,748.40 |
| DALI / True DT6 | ₹7,436.00 |
| DALI Tunable / True DT8 | ₹9,498.50 |
24W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹6,655.00 |
| CCT-RF remote | ₹10,686.50 |
| Alexa/Tuya smart | ₹10,893.30 |
| DALI / True DT6 | ₹9,253.20 |
| DALI Tunable / True DT8 | ₹12,397.00 |
Prices apply to the listed body finishes. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Check the selected wattage’s ceiling cutout, fitting dimensions and available ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
