LINEAR

LINEAR Recessed Downlight Series: Compact & Powerful Illumination with Toyonia/Osram LED

Discover the LINEAR series of recessed downlights, offering a sleek, rectangular design and efficient Toyonia/Osram LEDs. These fixtures provide focused and powerful light distribution, available in various wattages to suit diverse lighting needs. With options for tuneable white light and a sophisticated white or black finish, the LINEAR series is perfect for enhancing contemporary residential, commercial, and retail environments where precise, discreet, and adaptable linear lighting is desired.

Key Features & Benefits Across the LINEAR Series:

• Compact Linear Design: Features a contemporary rectangular form factor that integrates seamlessly into ceilings, providing a clean, sophisticated, and unobtrusive look.

• High-Performance LED Source: Utilizes Toyonia or Osram LEDs, known for their efficiency, consistent high lumen output, and reliable performance, ensuring long-lasting and bright illumination.

• Comprehensive Wattage Range: Available in 3W, 6W, 15W, and 30W, offering a wide spectrum of light outputs to match various room sizes and lighting requirements.

• Versatile Color Temperatures (CCT):

  • Standard: Selectable options of 3000K (Warm White) and 4000K (Neutral White) to set the ideal mood.

  • Tuneable White (2700K-6500K): Seamlessly adjust from warm to cool white light, offering dynamic ambiance control (available with RF TW and Tuya TW versions).

• Focused Beam Angle: Features a 30° beam angle for precise light distribution, ideal for accent lighting or creating directed light patterns.

• Durable Construction: Crafted from high-quality Aluminium, ensuring efficient heat dissipation and robust product longevity.

• IP20 Rated: Suitable for indoor use in dry environments.

• Diverse Finish Options:

  • Body Colour: White / Black (for 6W) and White (for 3W).

  • Reflector Colour: Grey/Purple/Black (for 15W & 30W) offering design flexibility.

• Smart Control Options (for 15W & 30W models):

  • RF Tuneable White (RF TW): Enables convenient wireless control over color temperature to create dynamic lighting scenes.

  • Tuya Tuneable White (TUYA TW): Integrates seamlessly with the Tuya smart home platform for comprehensive control via app, voice commands (with compatible assistants), and advanced automation.

  • Single CCT: Standard fixed color temperature option for straightforward lighting needs.

LINEAR-3W

• Wattage: 3W

• LED: Toyonia / Osram Led

• Luminous Flux: 224Lm

• Size: 45x45x49mm

• Cut Out: 37x37mm

• CCT: 3000K/4000K

• Beam Angle: 30°

• IP Code: 20

• Material: Aluminium

• Body Colour: White

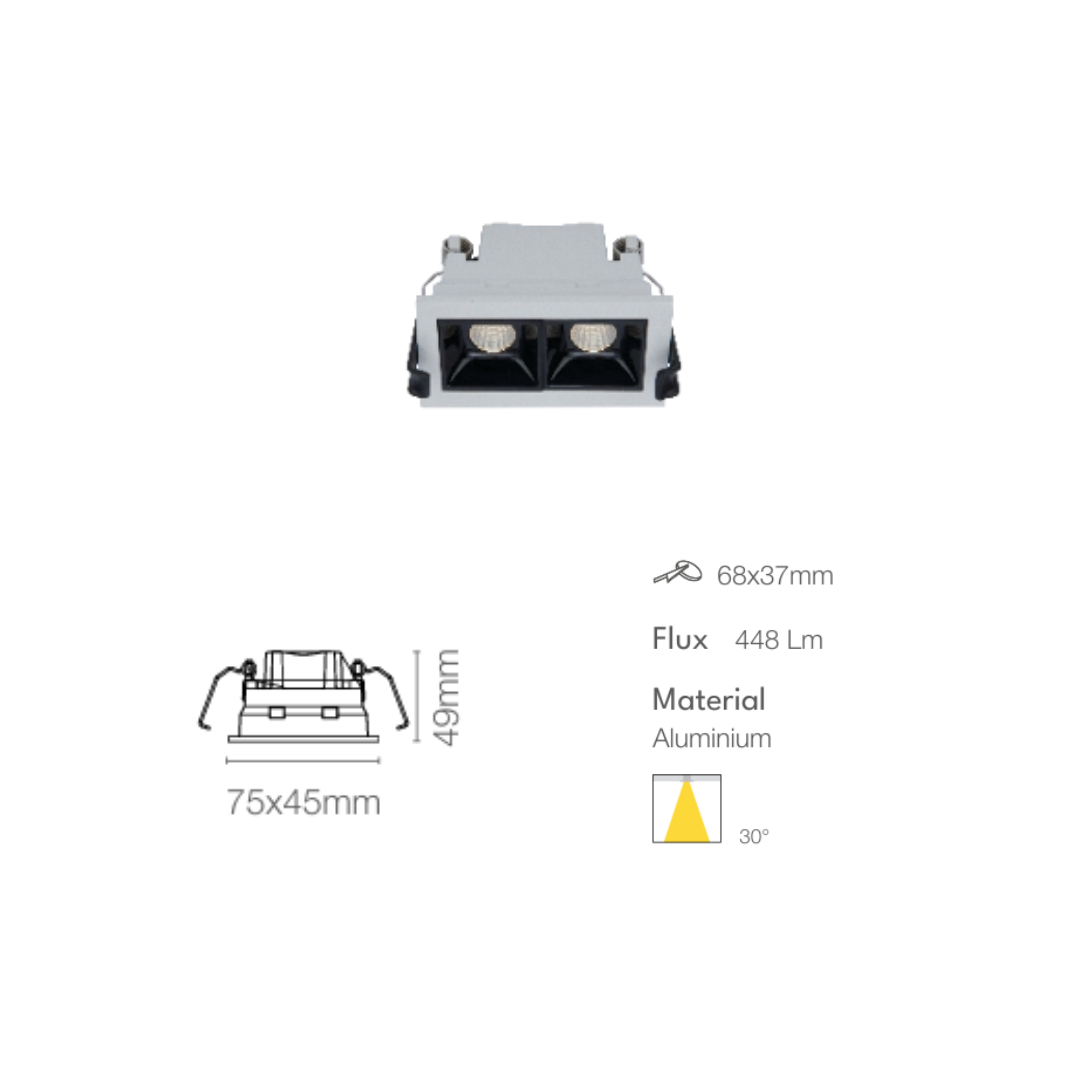

LINEAR-6W

• Wattage: 6W

• LED: Toyonia / Osram Led

• Luminous Flux: 448Lm

• Size: 75x45x49mm

• Cut Out: 68x37mm

• CCT: 3000K/4000K

• Beam Angle: 30°

• IP Code: 20

• Material: Aluminium

• Body Colour: White/Black

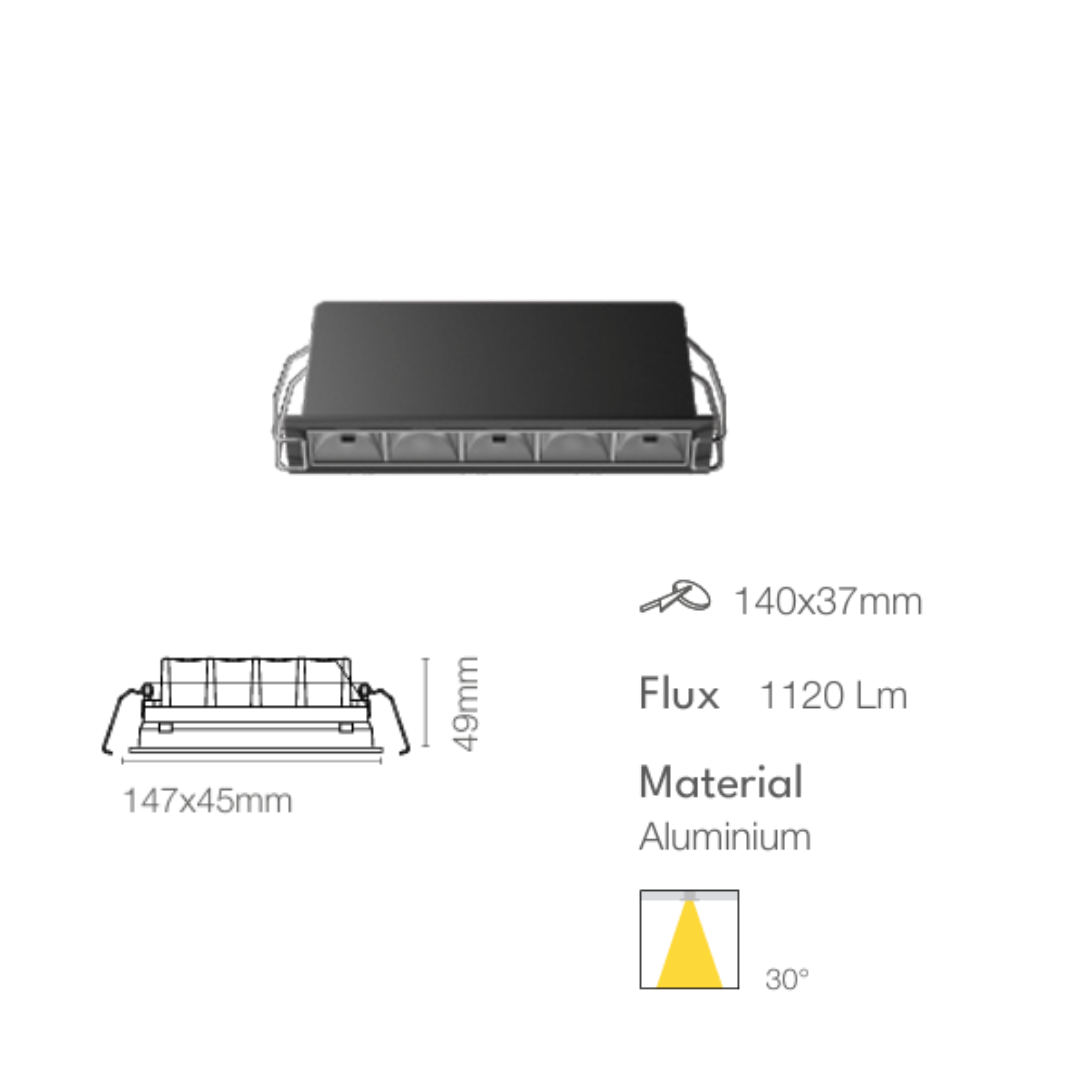

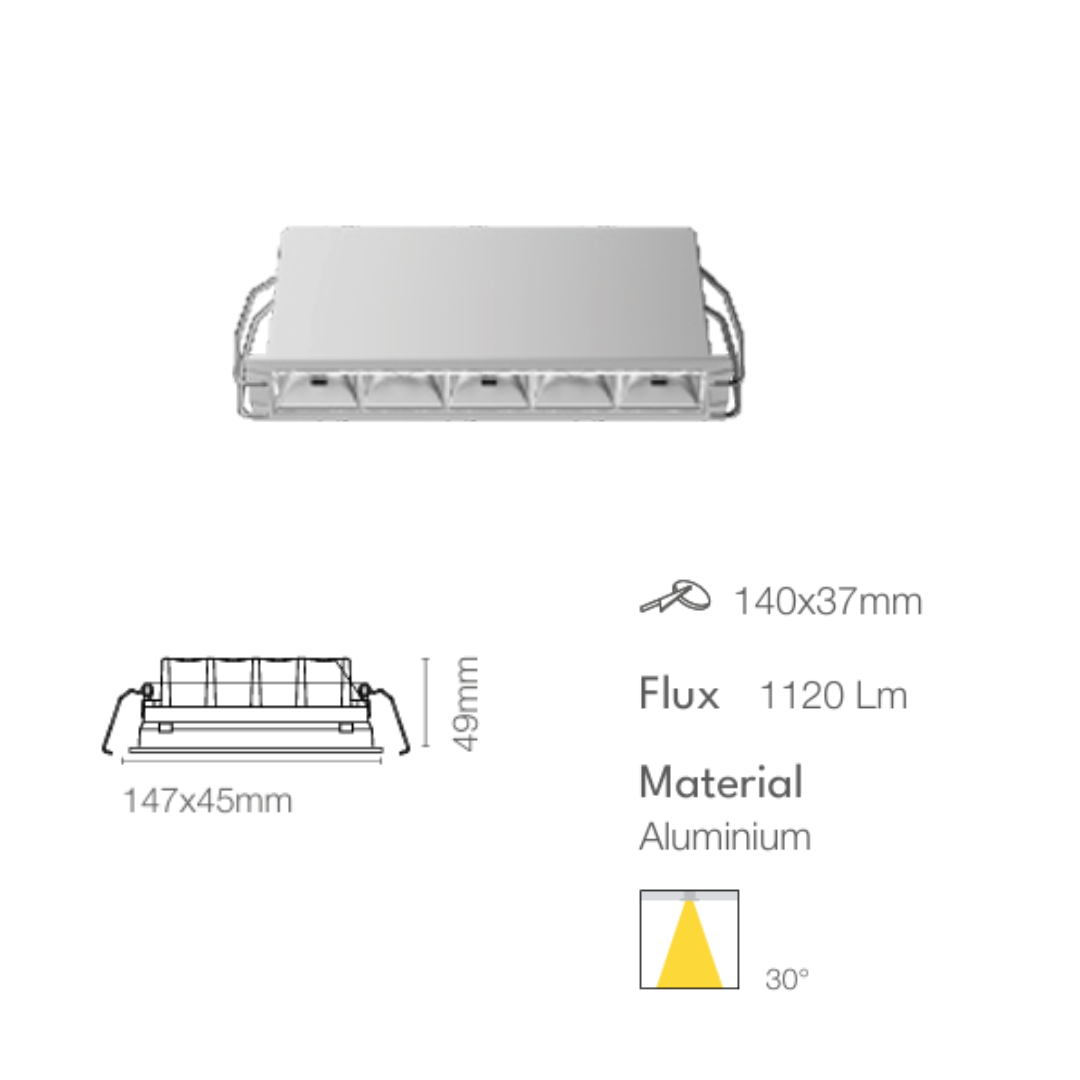

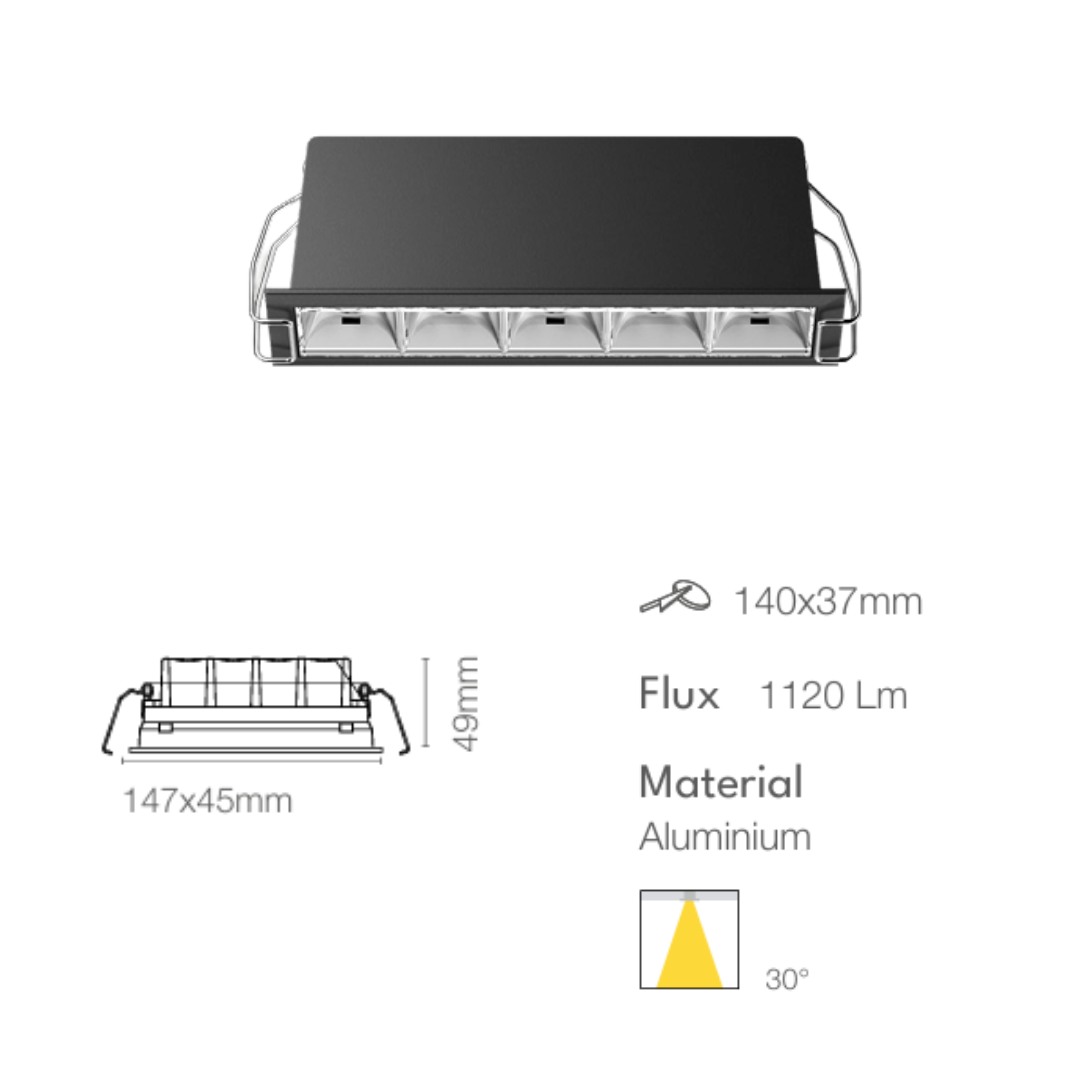

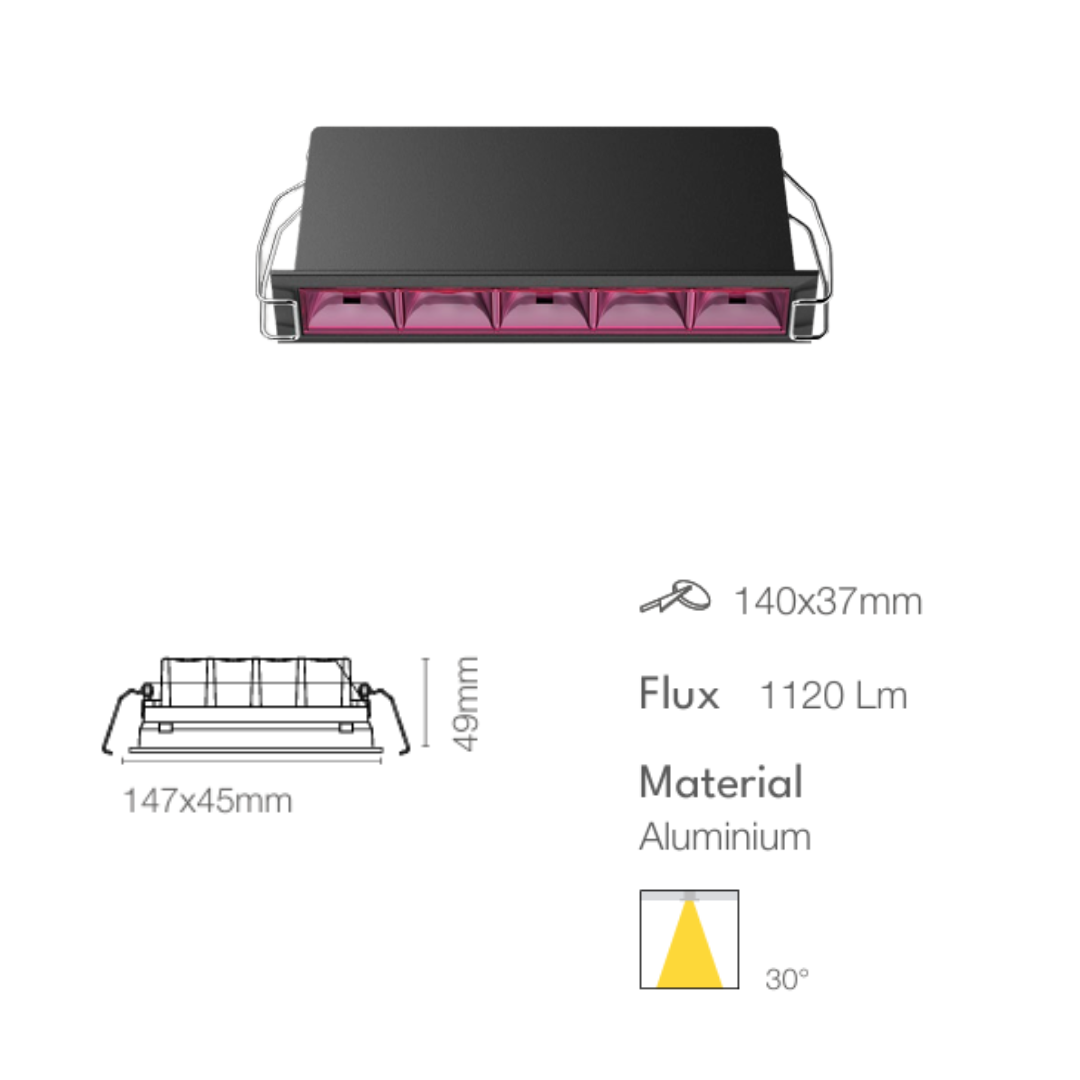

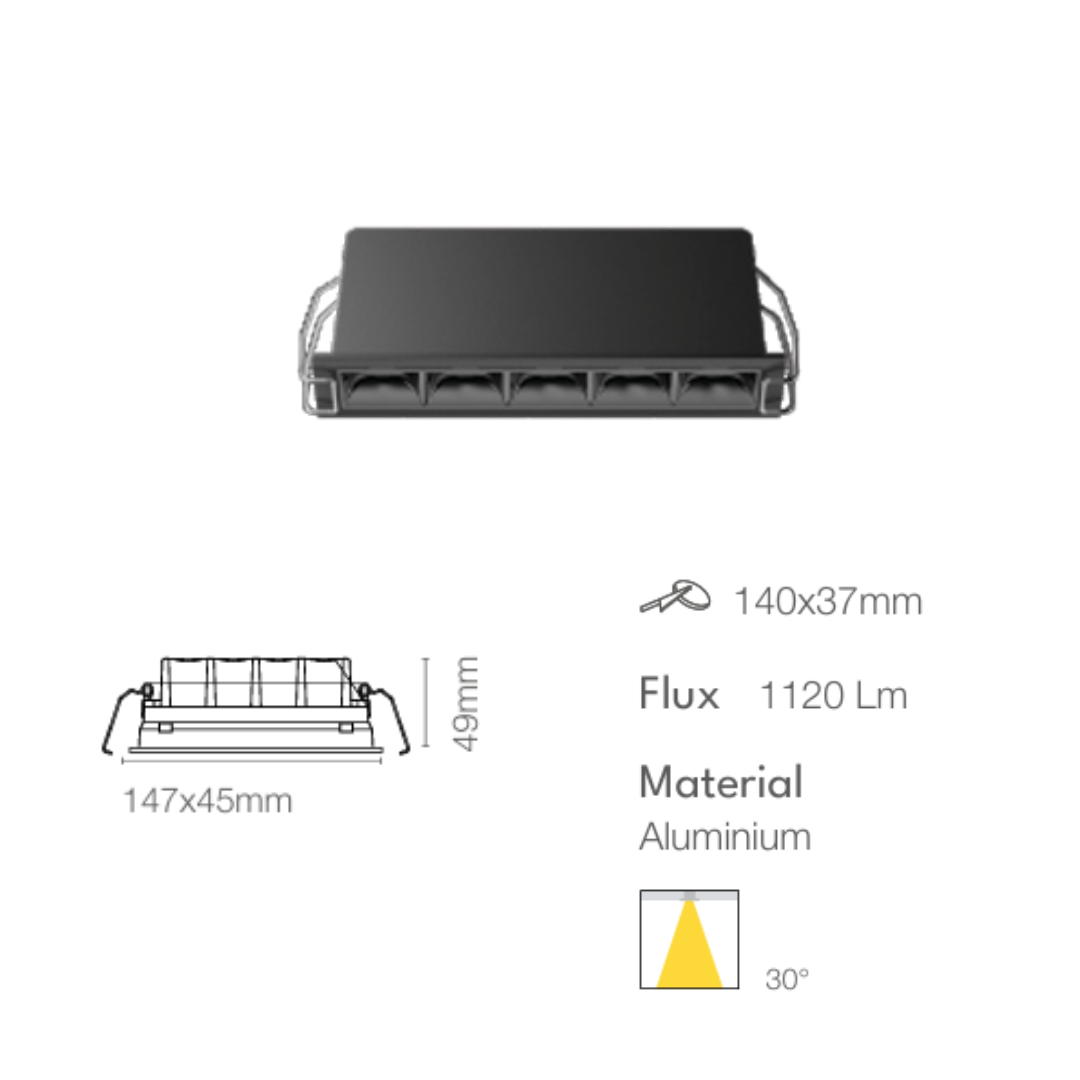

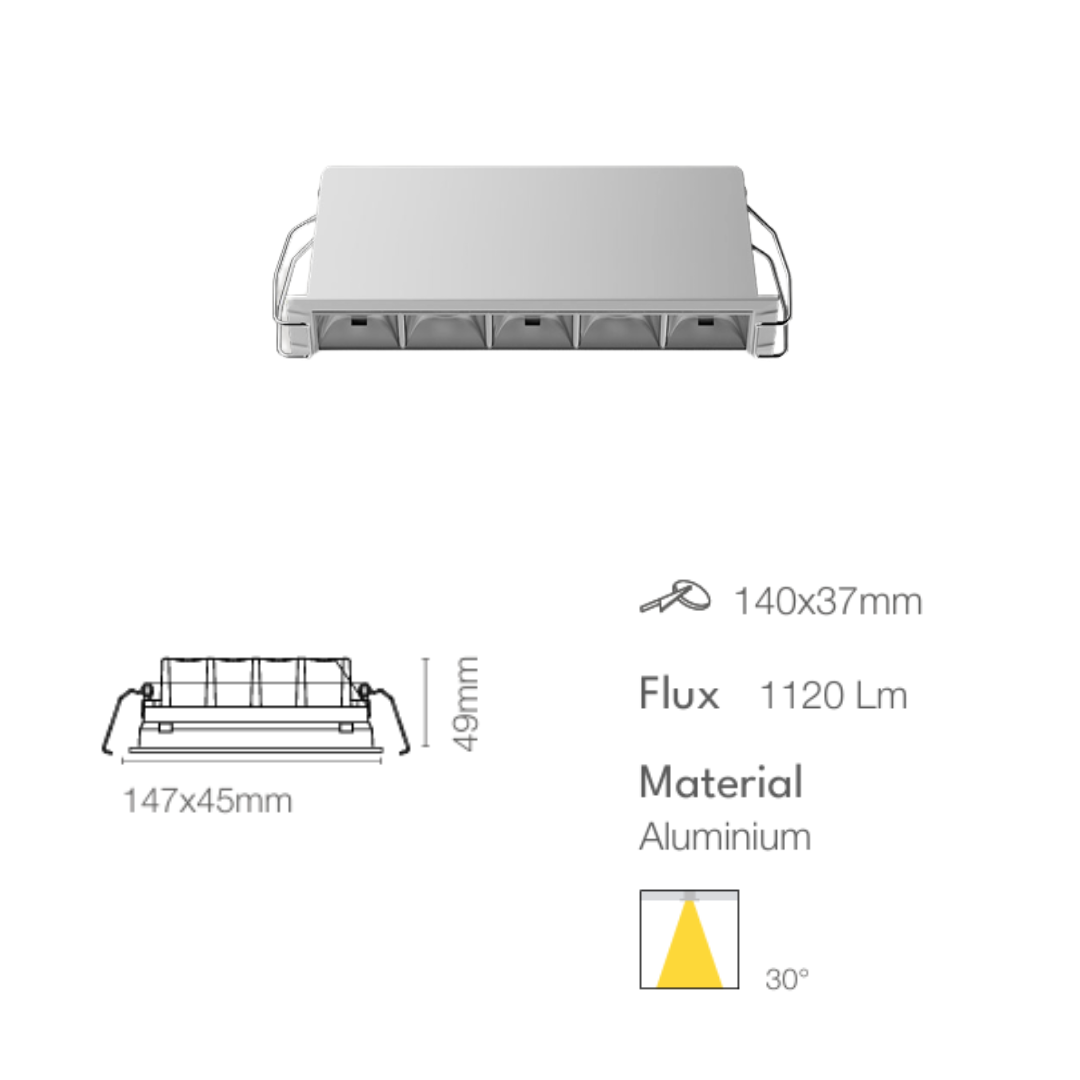

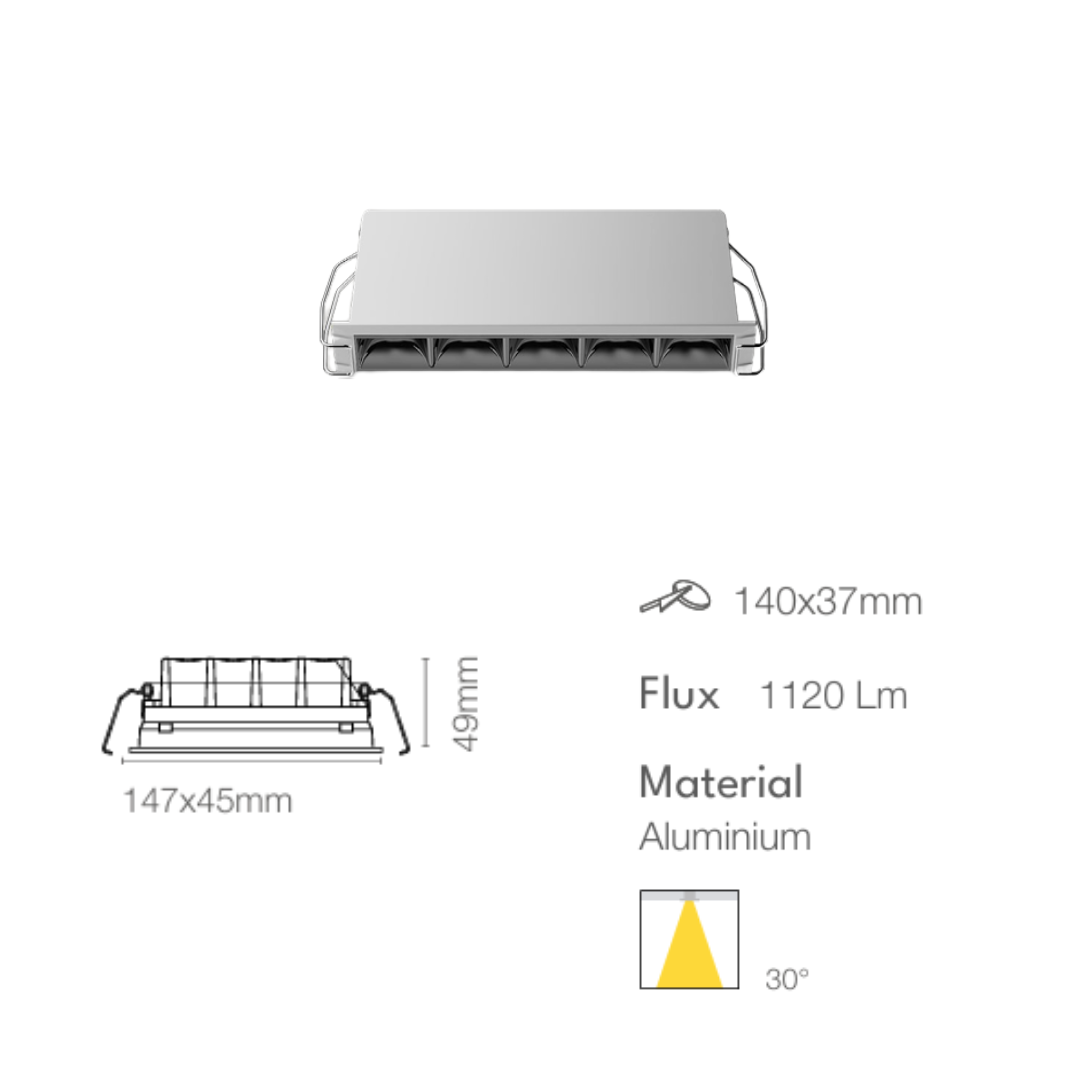

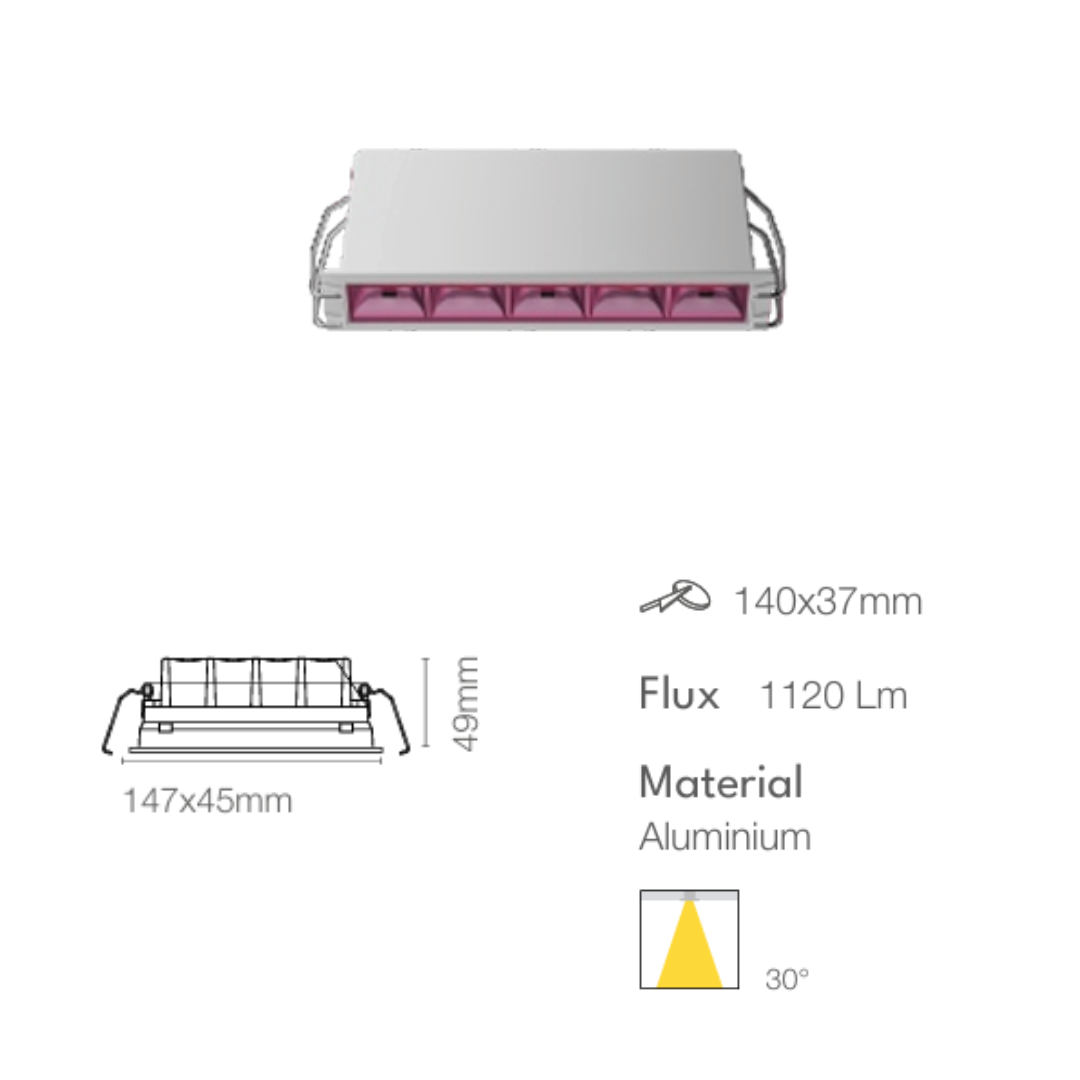

LINEAR-15W

• Wattage: 15W

• LED: Toyonia / Osram Led

• Luminous Flux: 1120Lm

• Size: 147x45x49mm

• Cut Out: 140x37mm

• CCT: 3000K/4000K & 2700K-6500K

• Beam Angle: 30°

• IP Code: 20

• Material: Aluminium

• Body Colour: White

• Ref. Colour: Grey/Purple/Black

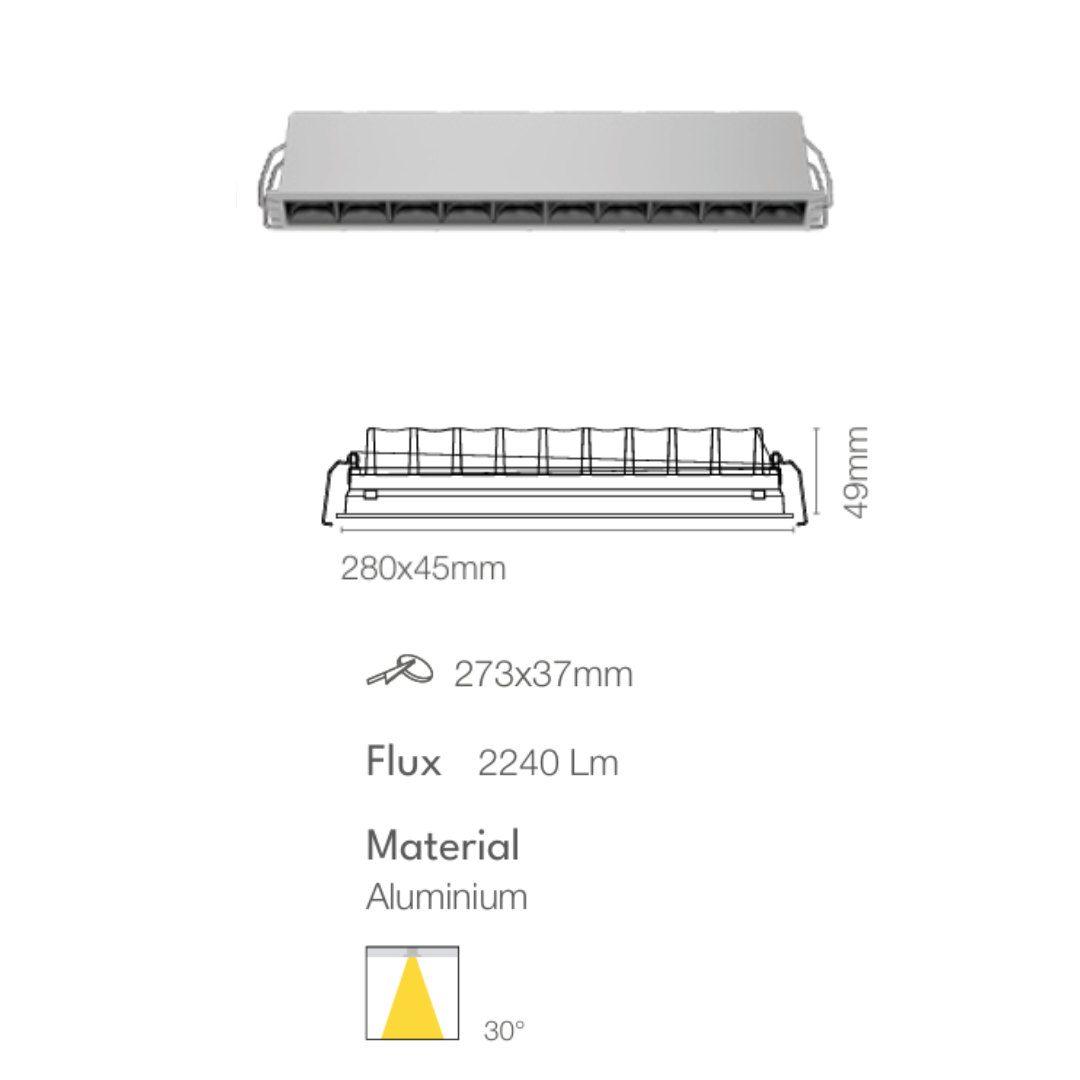

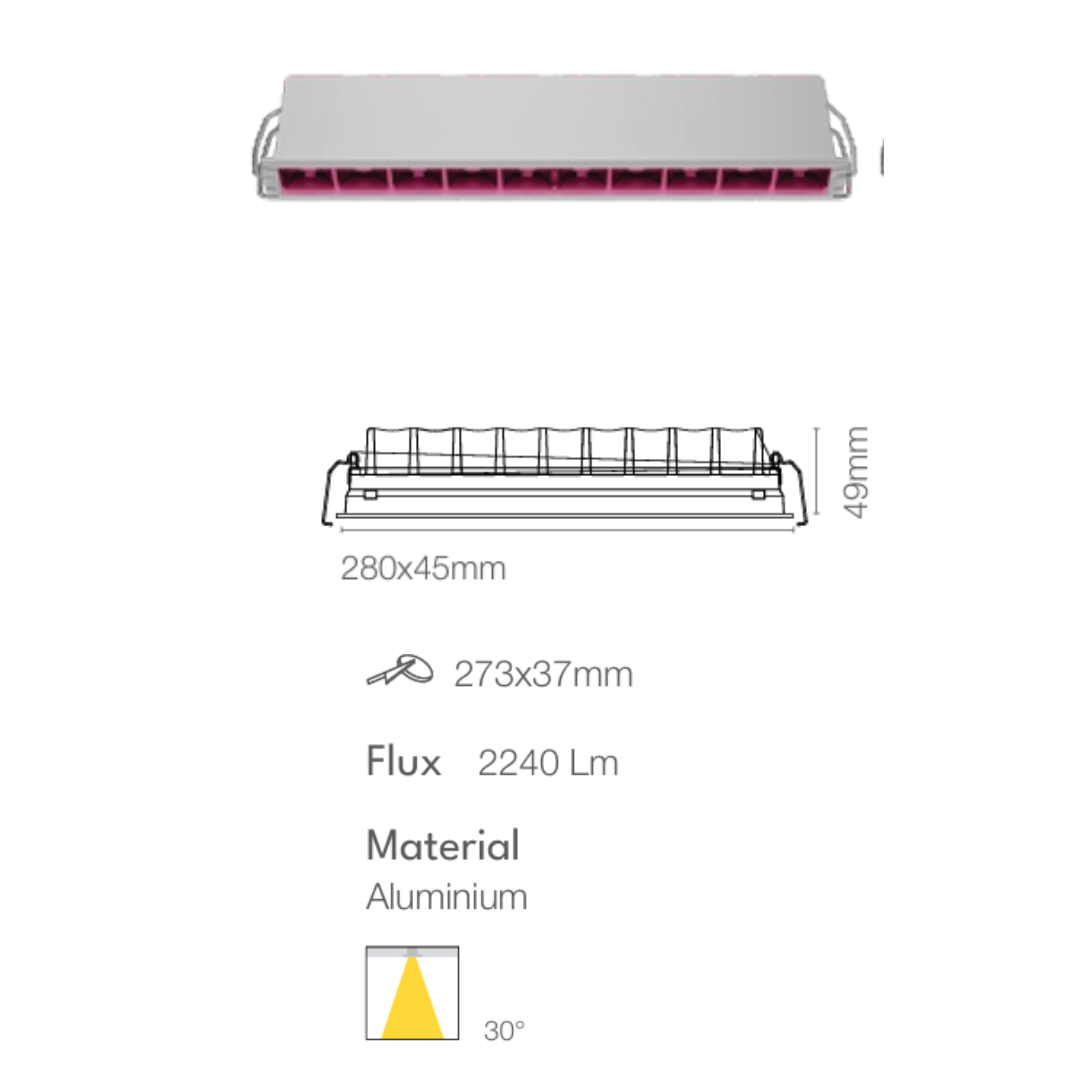

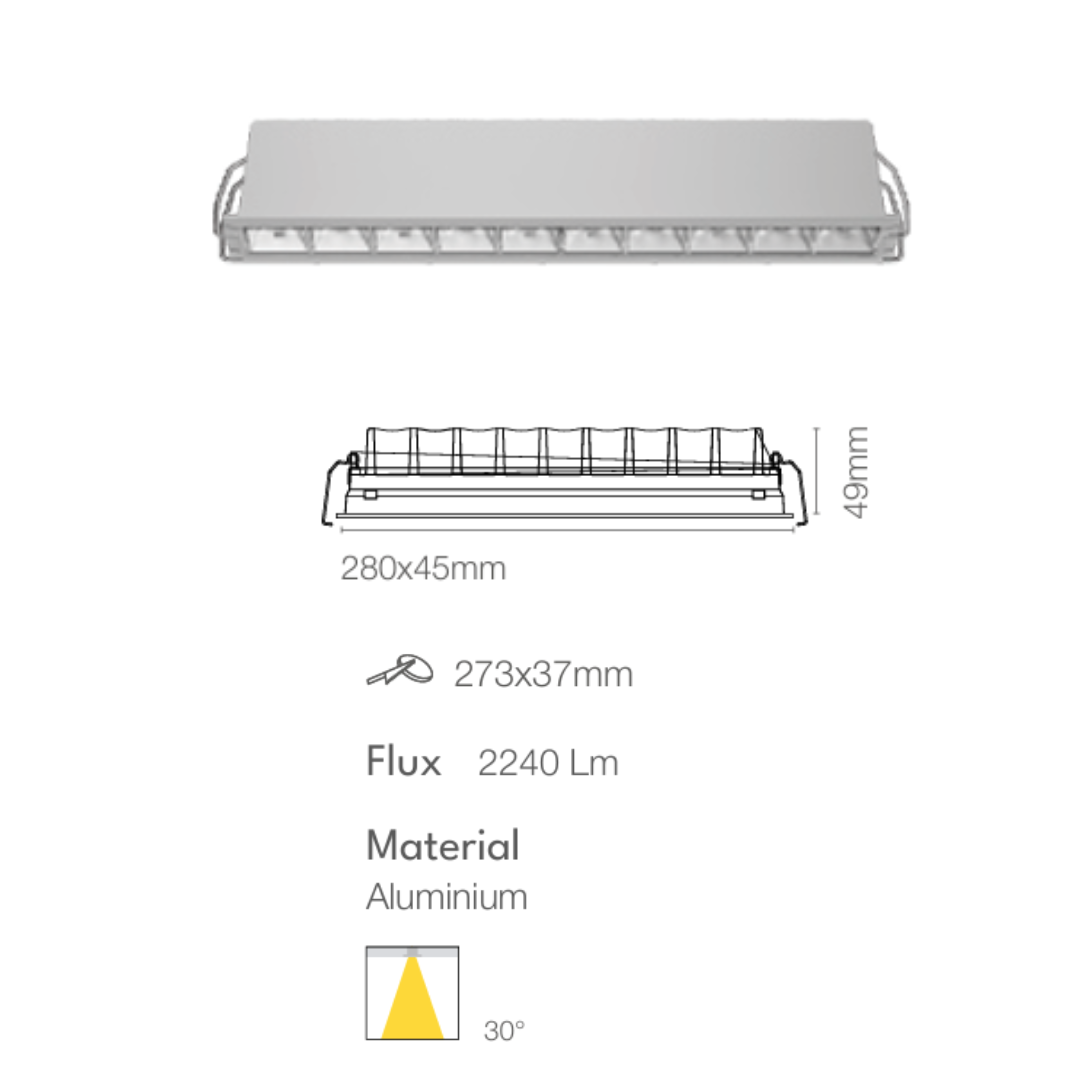

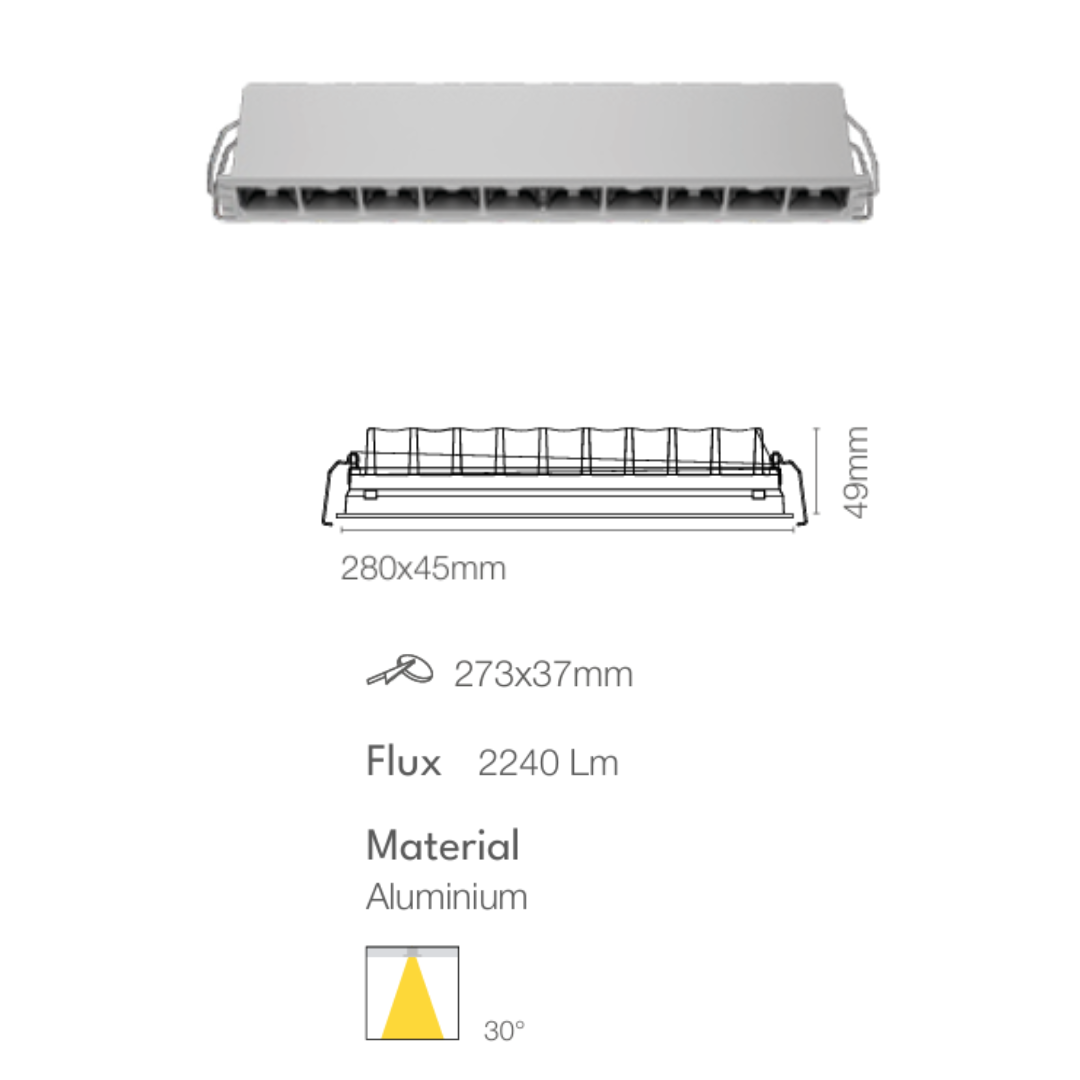

LINEAR-30W

• Wattage: 30W

• LED: Toyonia / Osram Led

• Luminous Flux: 2240Lm

• Size: 280x45x49mm

• Cut Out: 273x37mm

• CCT: 3000K/4000K & 2700K-6500K

• Beam Angle: 30°

• IP Code: 20

• Material: Aluminium

• Body Colour: White

• Ref. Colour: Grey/Purple/Black

Ideal For:

• Modern Residential: Kitchens, hallways, study areas, and living rooms where linear, discreet, and focused illumination is desired.

• Commercial Offices: Task lighting over workstations, corridor lighting, and general illumination in contemporary office spaces.

• Retail Environments: Display case lighting, shelf lighting, and accent lighting in fashion boutiques and modern stores.

• Hospitality: Hotel corridors, lobbies, and accent lighting in guest rooms, providing a sophisticated and integrated lighting solution.
