LINEAR-R Recessed Downlight Series: Modern Design with Toyonia LED and Premium Features

Discover the LINEAR-R series of recessed downlights, offering a blend of contemporary aesthetics and efficient illumination. These fixtures feature Toyonia LEDs and a sleek design, available in various wattages to suit diverse lighting needs. With options for tuneable white light and a stylish white/black finish, the LINEAR-R series is perfect for enhancing modern residential, commercial, and hospitality environments.

Key Features & Benefits Across the LINEAR-R Series:

• Sleek Linear Design: A contemporary aesthetic that integrates seamlessly into modern ceilings, providing a clean and sophisticated look.

• High-Performance LED Source: Utilizes Toyonia LEDs, known for their efficiency, consistent light output, and reliable performance.

• Diverse Wattage Options: Available in 8W, 15W, 20W, and 30W to provide suitable illumination for various room sizes and applications.

• Wide Beam Angles: Offers broad beam angles (20°, 34°, 40°, 48°) for uniform light distribution, ideal for general illumination.

• Tuneable White (2700K-6500K): Seamlessly adjust from warm to cool white light, offering dynamic ambiance control and catering to different moods and activities. (Note: Only RF TW pricing is shown in the image, suggesting this as the primary control option for tuneable white).

• Durable Construction: Crafted from high-quality Aluminium, ensuring efficient heat dissipation and robust product longevity.

• IP20 Rated: Suitable for indoor use in dry environments.

• Elegant Finish Options: Available with a White body and a Black reflector, offering a striking contrast that complements modern interior designs.

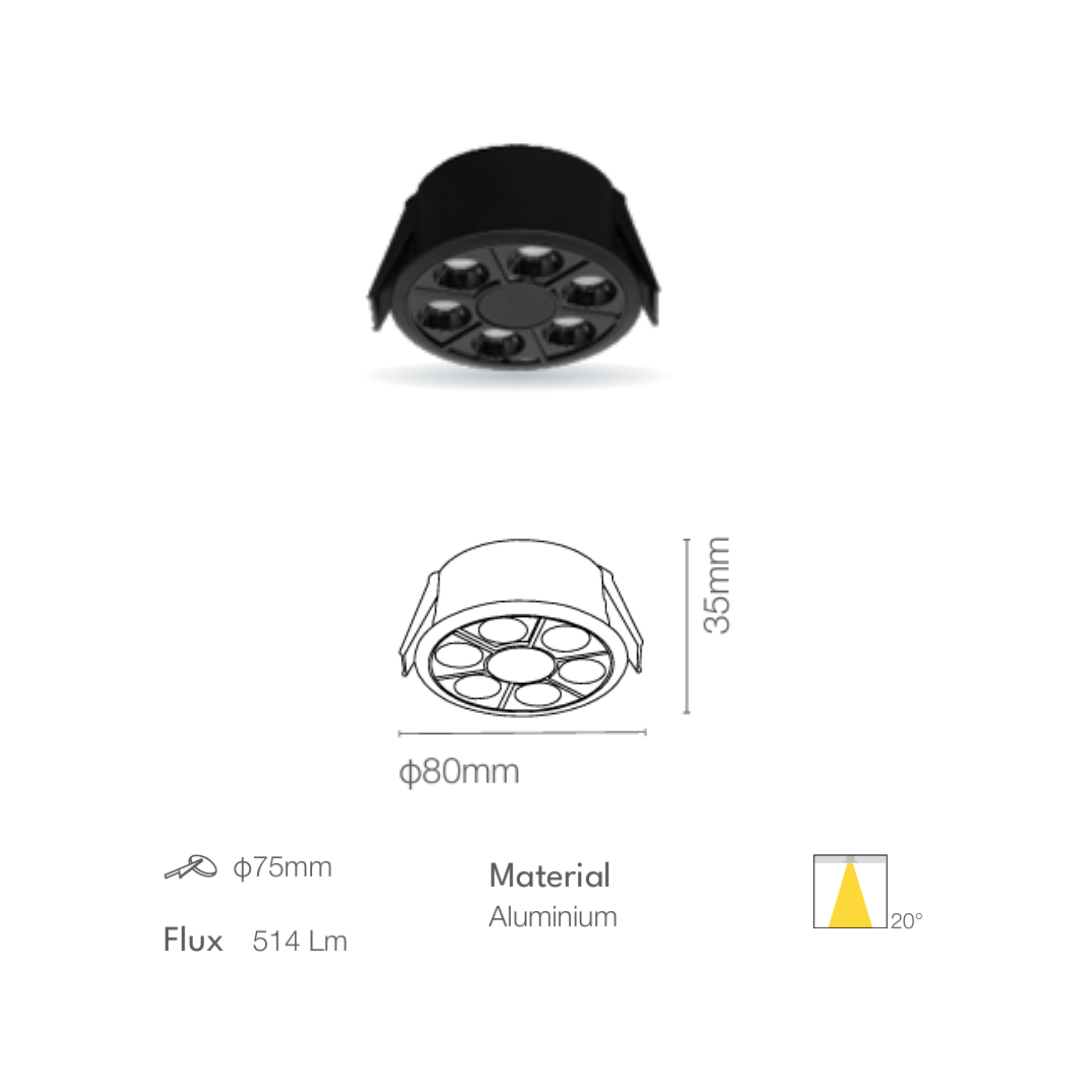

LINEAR-R-D1-8W

• Wattage: 8W

• LED: Toyonia Led

• Luminous Flux: 514Lm

• Size: Ø80x32mm

• Cut Out: Ø70mm

• CCT: 2700K-6500K

• Beam Angle: 20°

• IP Code: 20

• Material: Aluminium

• Body Colour: White/Black

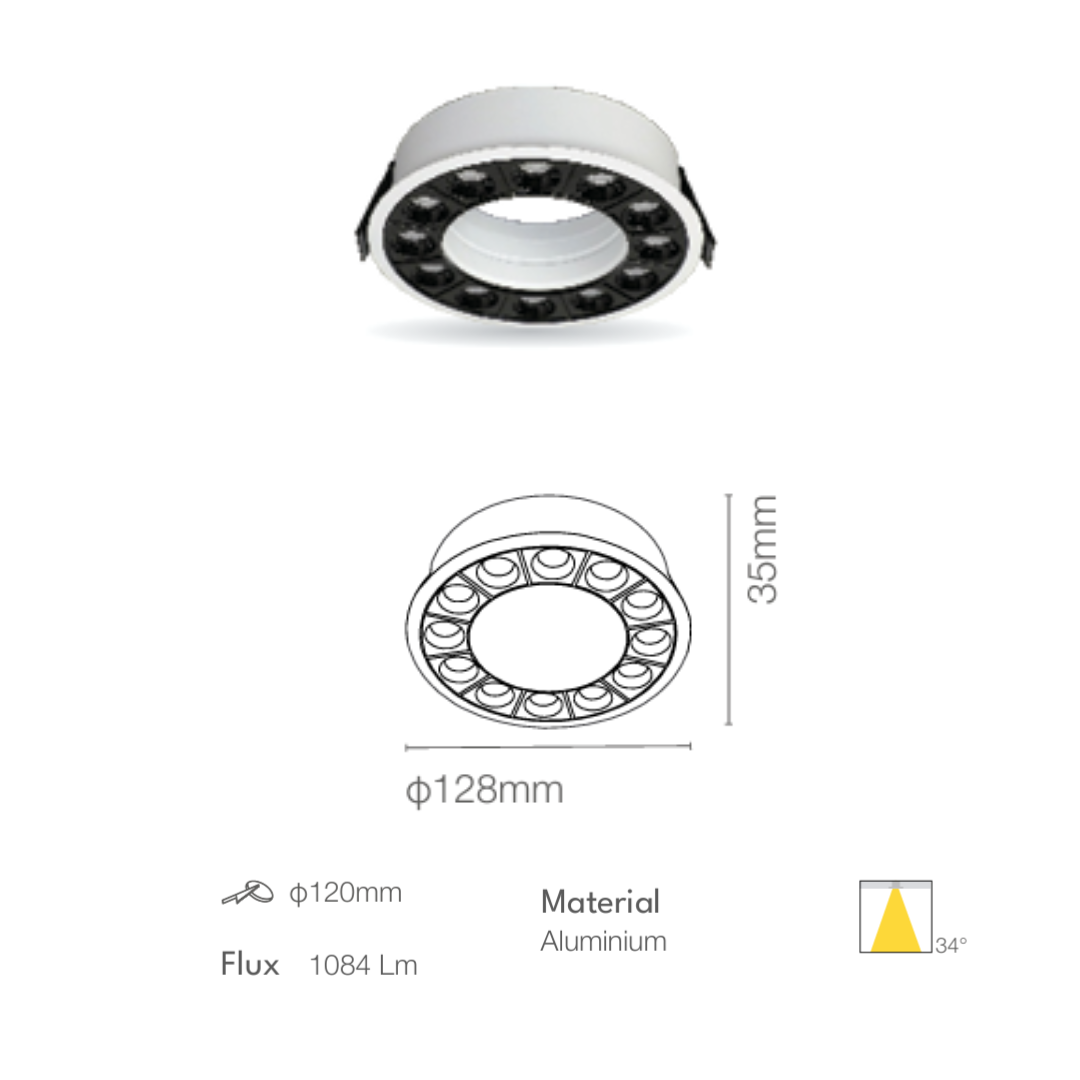

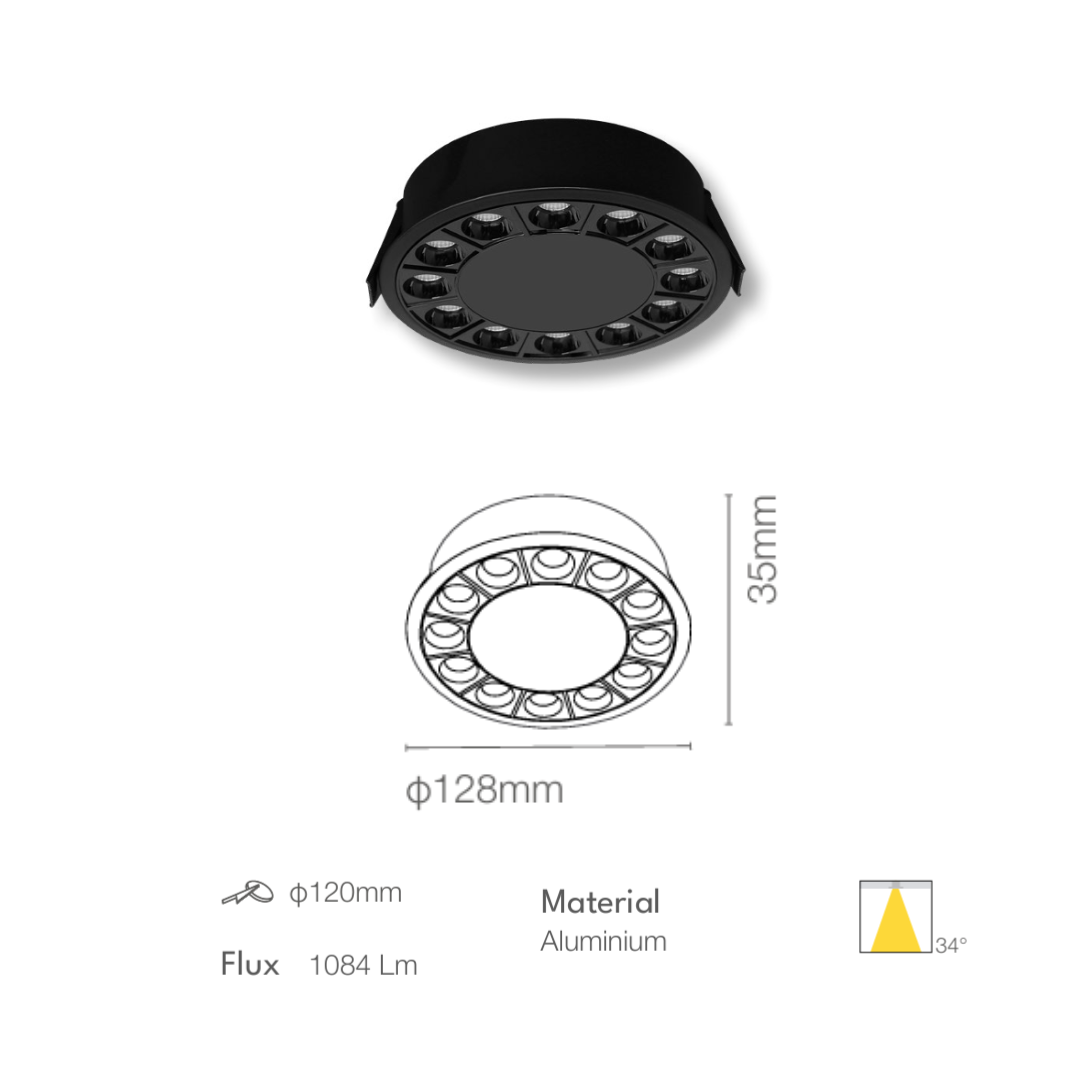

LINEAR-R-C1-15W

• Wattage: 15W

• LED: Toyonia Led

• Luminous Flux: 1084Lm

• Size: Ø128x35mm

• Cut Out: Ø110mm

• CCT: 2700K-6500K

• Beam Angle: 34°

• IP Code: 20

• Material: Aluminium

• Body Colour: White/Black

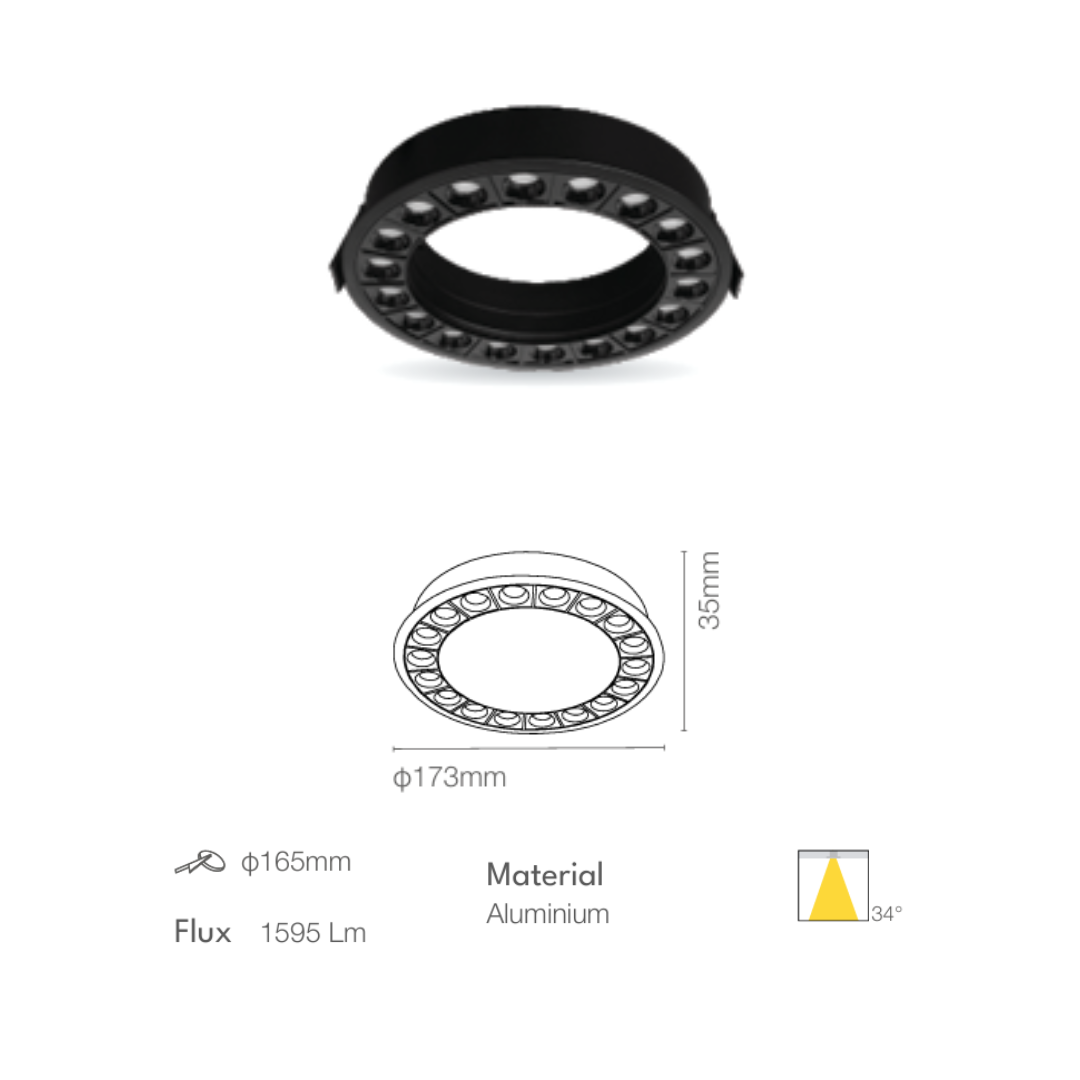

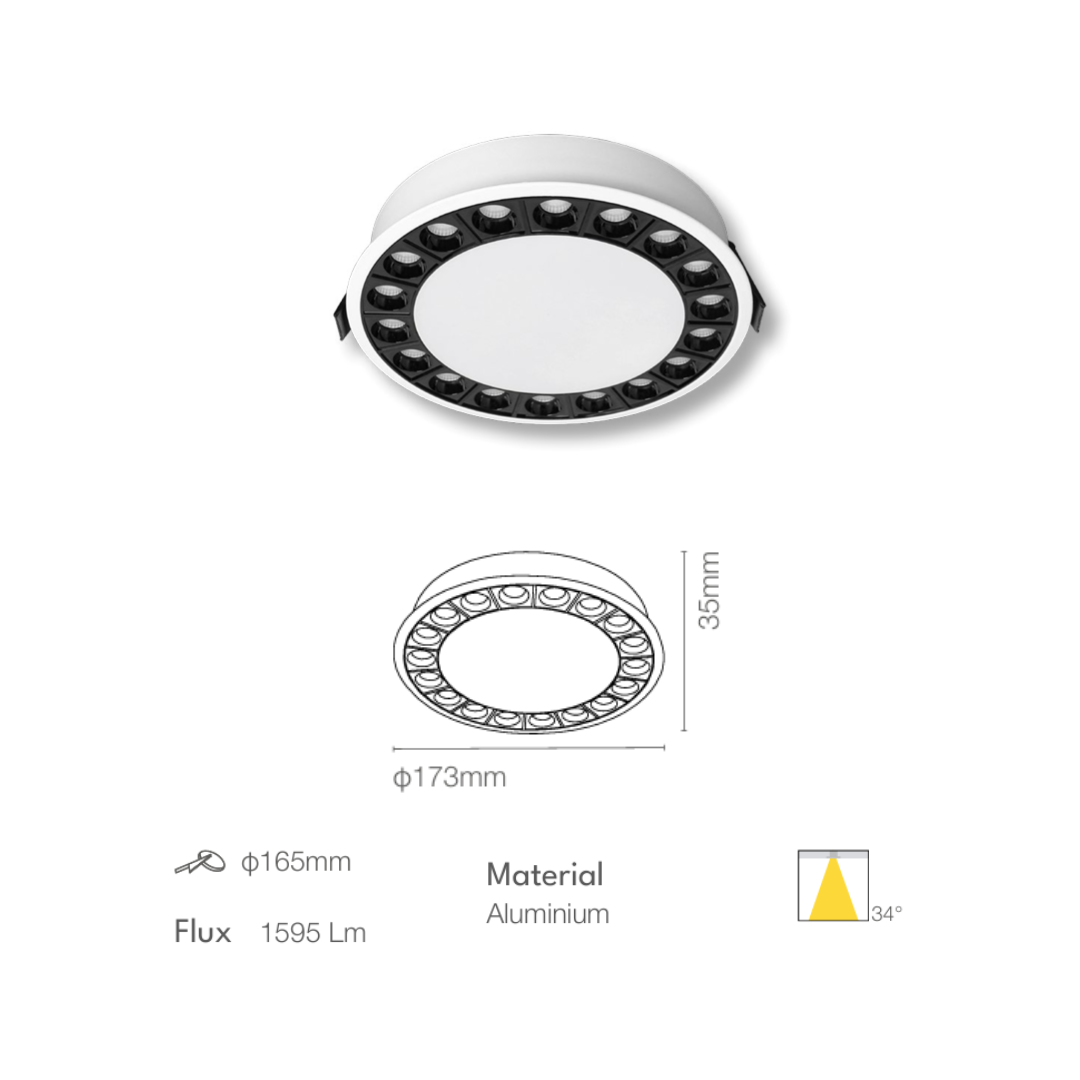

LINEAR-R-B1-20W

• Wattage: 20W

• LED: Toyonia Led

• Luminous Flux: 1595Lm

• Size: Ø173x35mm

• Cut Out: Ø165mm

• CCT: 2700K-6500K

• Beam Angle: 40°

• IP Code: 20

• Material: Aluminium

• Body Colour: White/Black

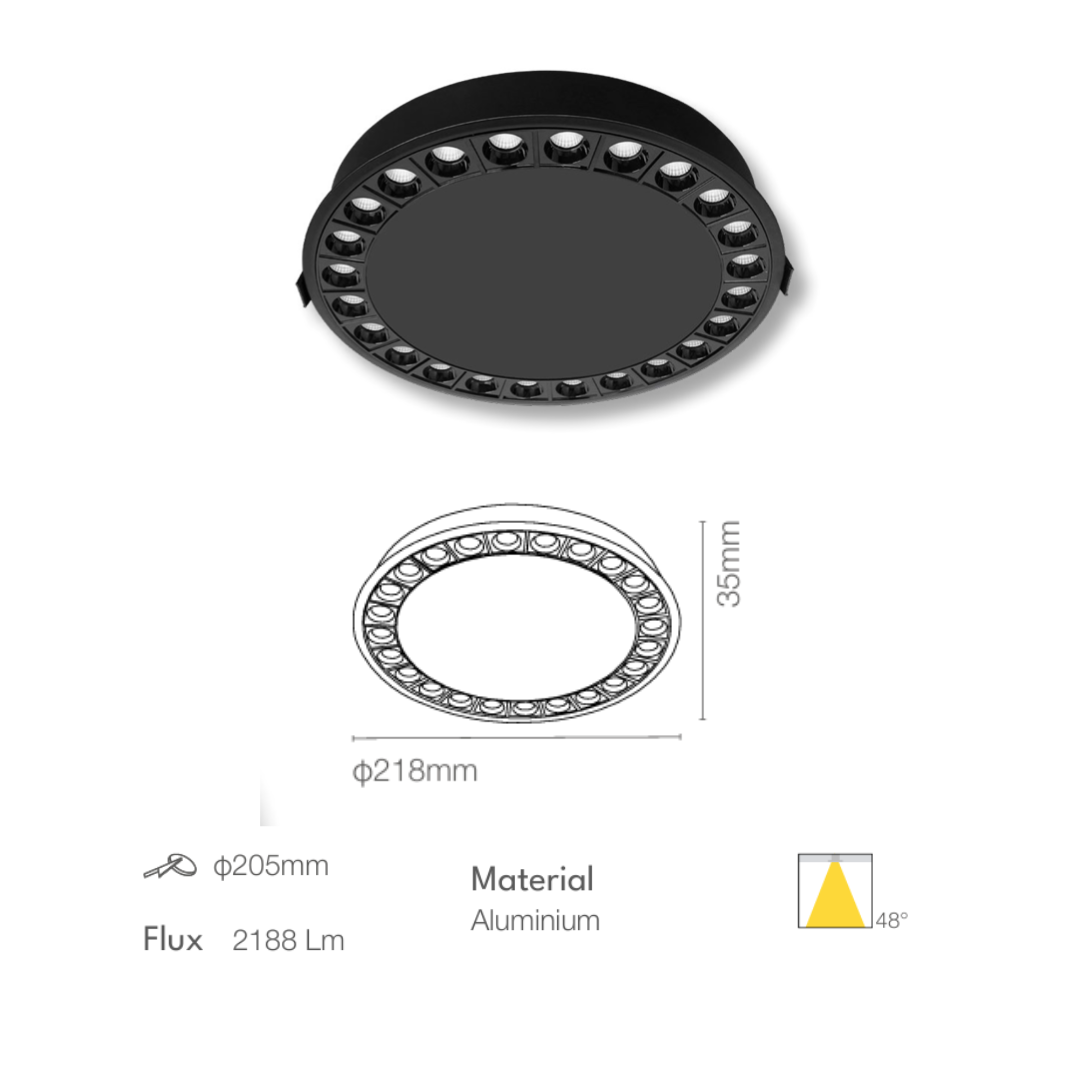

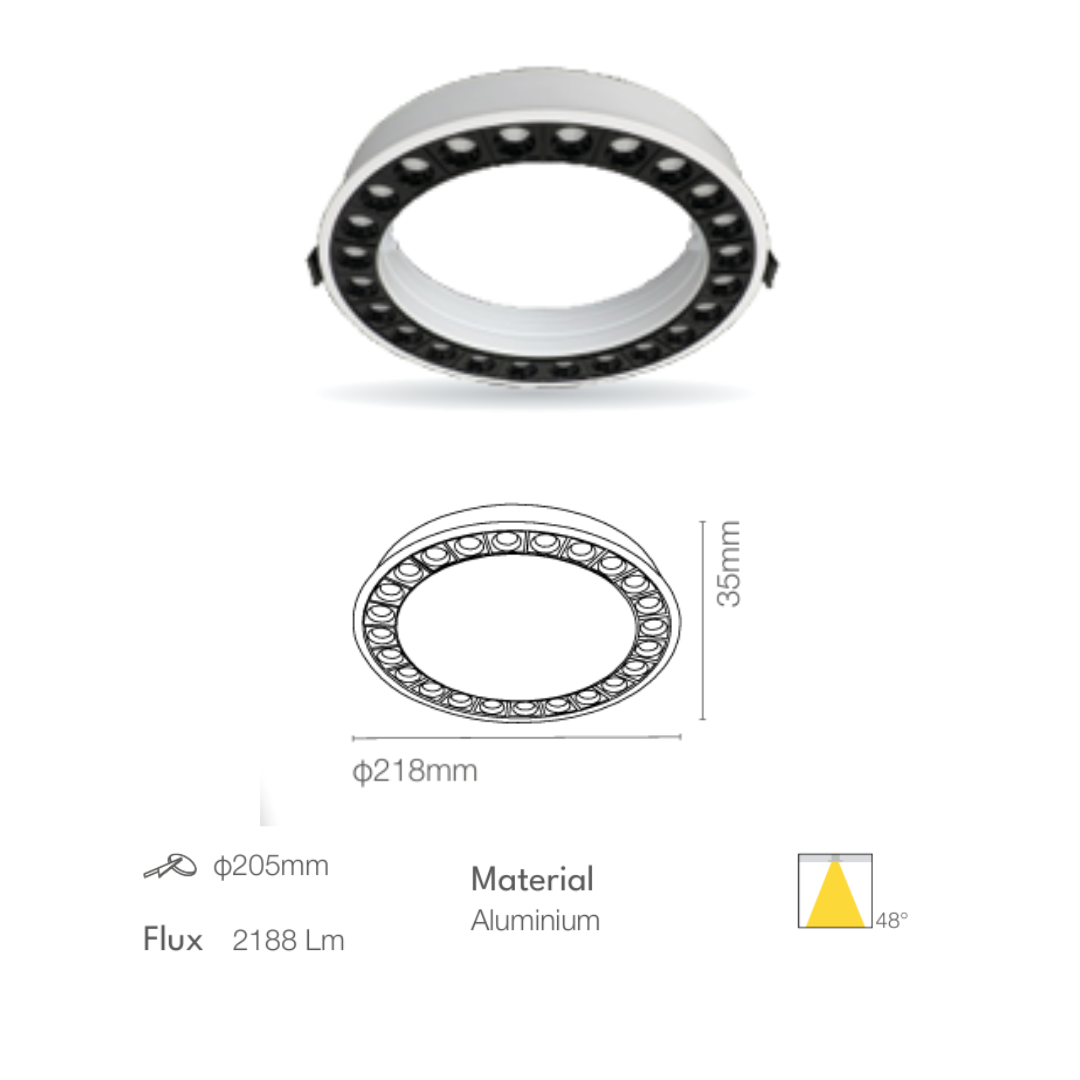

LINEAR-R-A-30W

• Wattage: 30W

• LED: Toyonia Led

• Luminous Flux: 2188Lm

• Size: Ø218x35mm

• Cut Out: Ø205mm

• CCT: 2700K-6500K

• Beam Angle: 48°

• IP Code: 20

• Material: Aluminium

• Body Colour: White/Black

Ideal For:

• Modern Residential: Living rooms, kitchens, hallways, and study areas, providing uniform and adjustable lighting for various tasks and moods.

• Commercial Spaces: Offices, retail environments, and galleries, where high lumen output and broad, even illumination are essential.

• Hospitality: Hotel lobbies, corridors, and dining areas, offering versatile lighting that enhances the overall ambiance.

Experience the perfect fusion of modern design, advanced LED technology, and superior illumination with the LINEAR-R recessed downlight series.
