LINEAR-R-SMD Used Inside Linear-R Recessed Downlight Series: Modern Design with Toyonia SMD LED and Expansive Illumination
Discover the LINEAR-R-SMD series of recessed downlights, featuring a modern design combined with efficient illumination from Toyonia SMD LEDs. These fixtures provide high lumen output and a wide beam angle, available in various wattages to suit diverse lighting needs. With tuneable white light options and a sleek white/black finish, the LINEAR-R-SMD series is perfect for enhancing modern residential, commercial, and hospitality environments where broad and even lighting is desired.
Key Features & Benefits Across the LINEAR-R-SMD Series:
-
Sleek Recessed Design: A contemporary aesthetic that integrates seamlessly into ceilings, providing a clean and unobtrusive look while delivering broad illumination.
-
High-Performance SMD LED Source: Utilizes Toyonia SMD LEDs, known for their efficiency, consistent high lumen output, and reliable performance, contributing to a wide light distribution.
-
Diverse Wattage Options: Available in 6W, 12W, and 18W to provide suitable illumination for various room sizes and applications.
-
Expansive Beam Angle: Features a very wide 110° beam angle for uniform and widespread light distribution, ideal for general illumination in larger areas.
-
Tuneable White (2700K-6500K): Seamlessly adjust from warm to cool white light, offering dynamic ambiance control and catering to different moods and activities. (Note: Only RF TW pricing is shown in the image, suggesting this as the primary control option for tuneable white).
-
Durable Construction: Crafted from high-quality Aluminium, ensuring efficient heat dissipation and robust product longevity.
-
IP20 Rated: Suitable for indoor use in dry environments.
-
Elegant Finish Options: Available with a White body and a Black reflector, offering a striking contrast that complements modern interior designs.

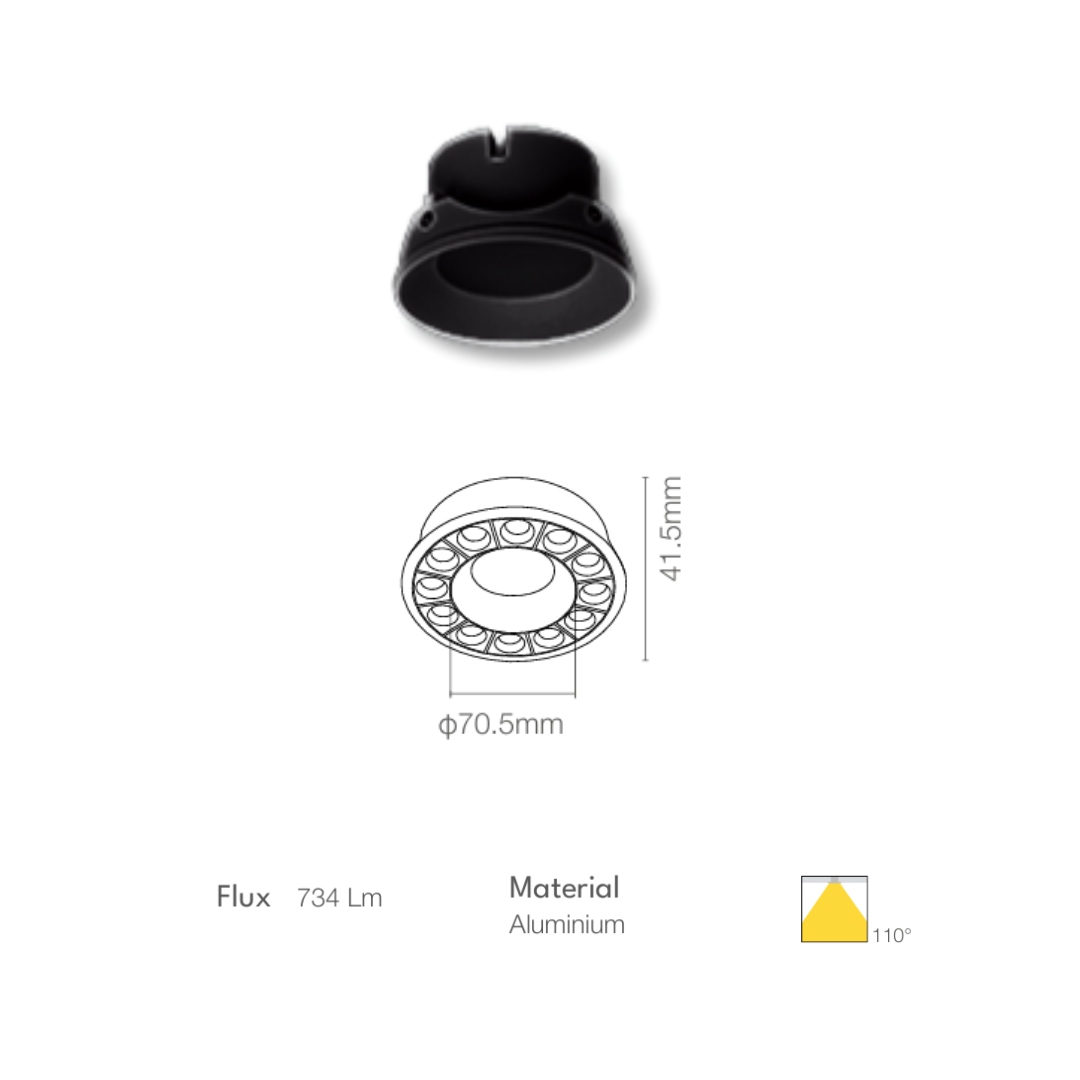

LINEAR-R-SMD-D3-6W
-
Wattage: 6W
-
LED: Toyonia Led
-
Luminous Flux: 734Lm
-
Size: Ø70.5x41.5mm
-
Cut Out: Ø60mm
-
CCT: 2700K-6500K
-
Beam Angle: 110°
-
IP Code: 20
-
Material: Aluminium
-
Body Colour: White/Black

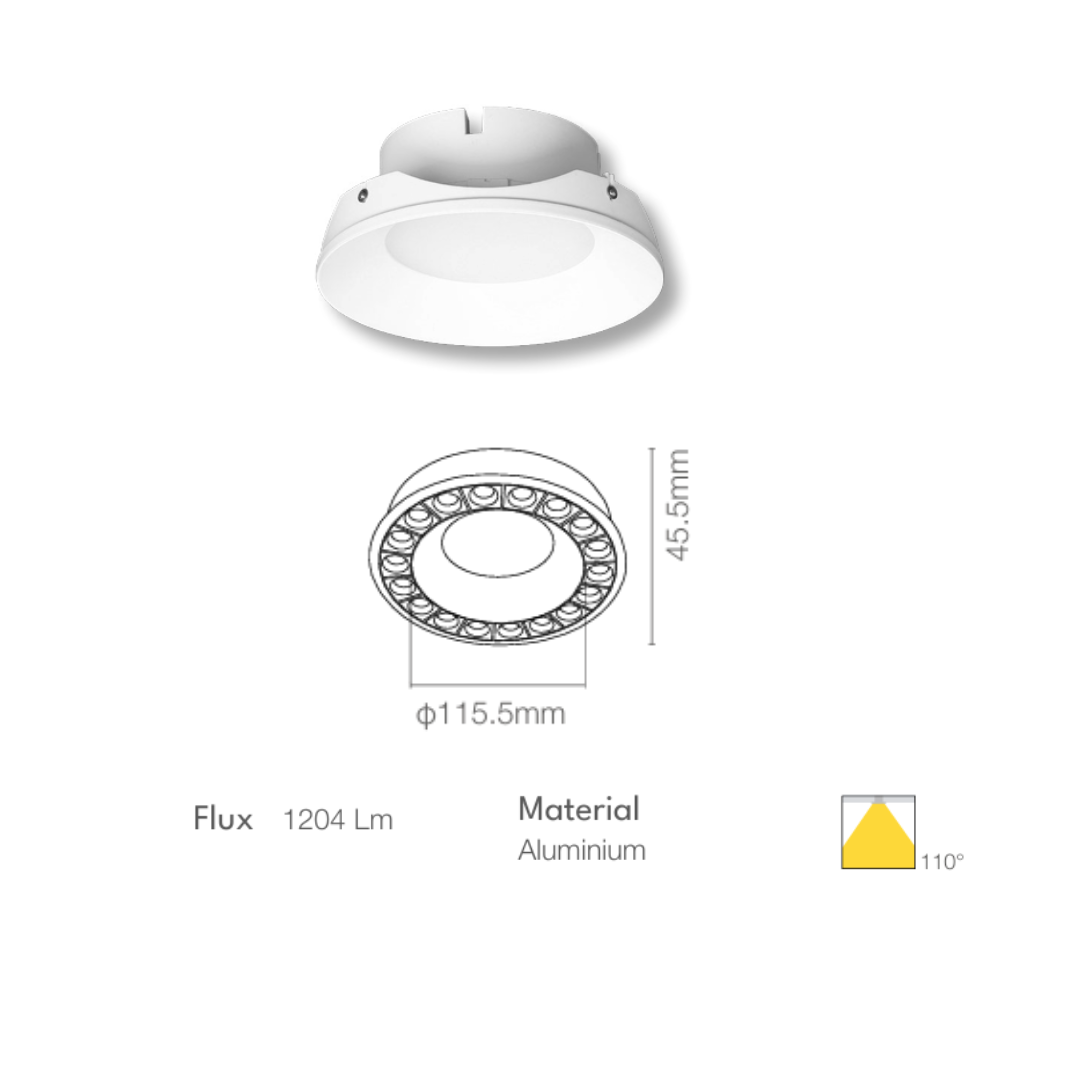

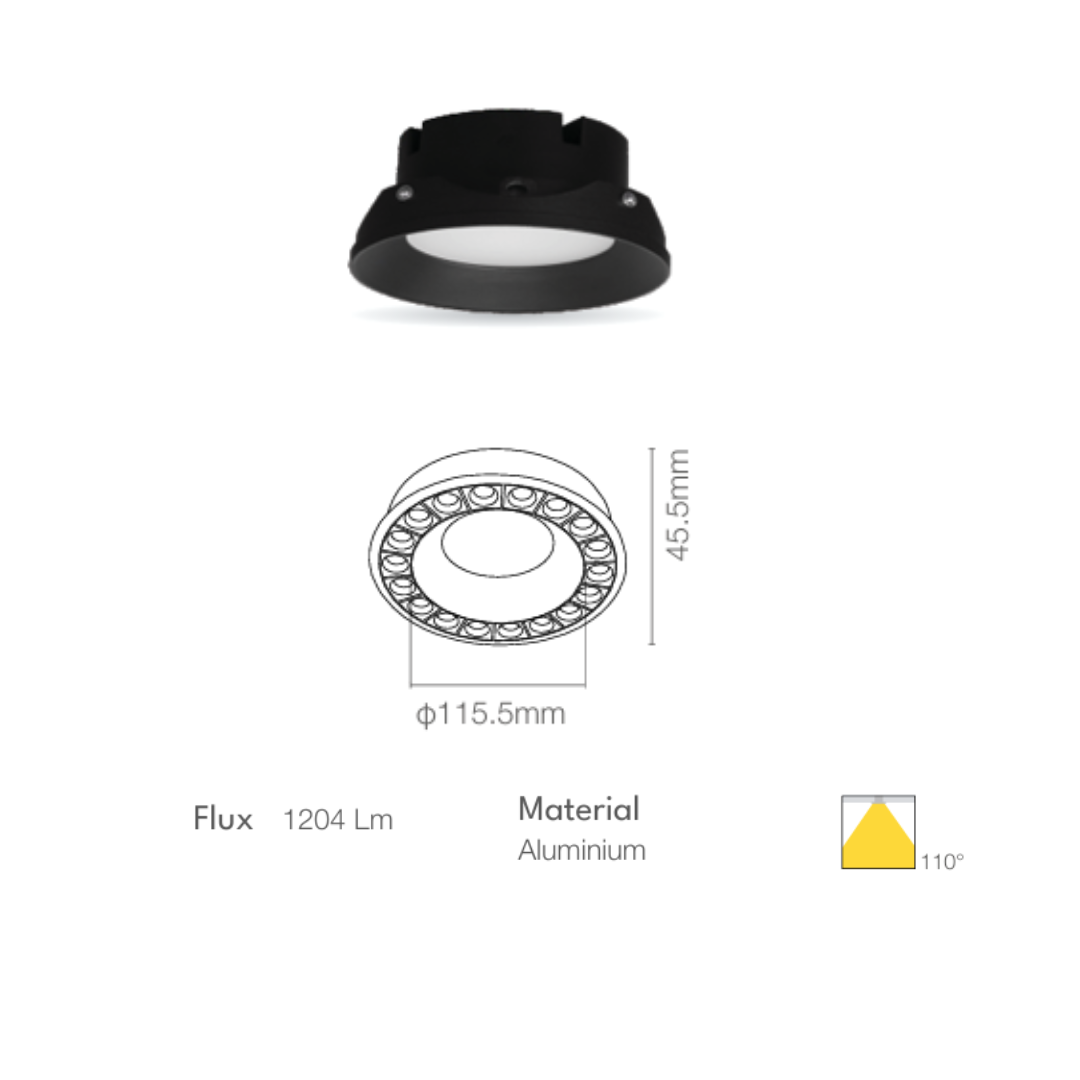

LINEAR-R-SMD-C3-12W
-
Wattage: 12W
-
LED: Toyonia Led
-
Luminous Flux: 1204Lm
-
Size: Ø115.5x45.5mm
-
Cut Out: Ø100mm
-
CCT: 2700K-6500K
-
Beam Angle: 110°
-
IP Code: 20
-
Material: Aluminium
-
Body Colour: White/Black

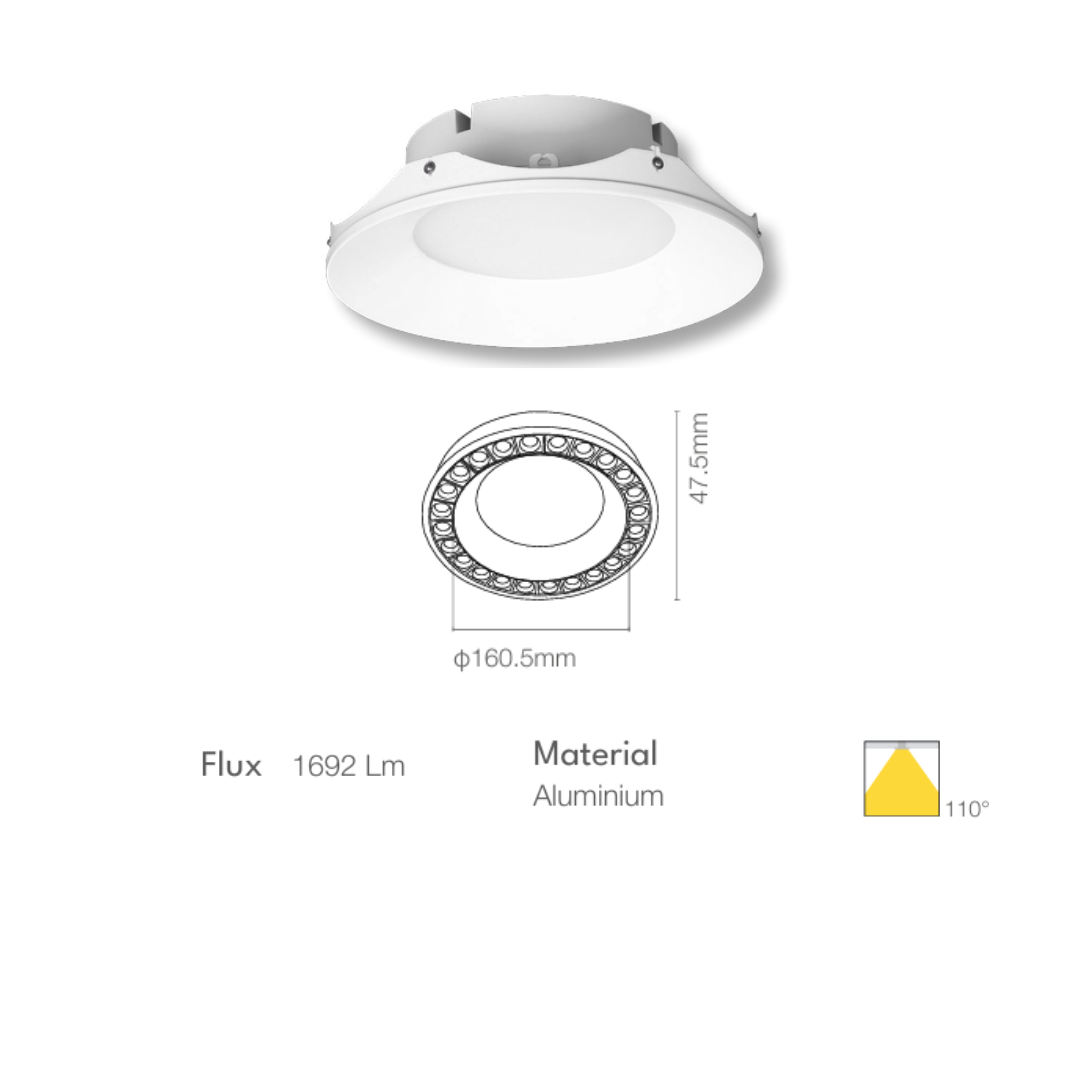

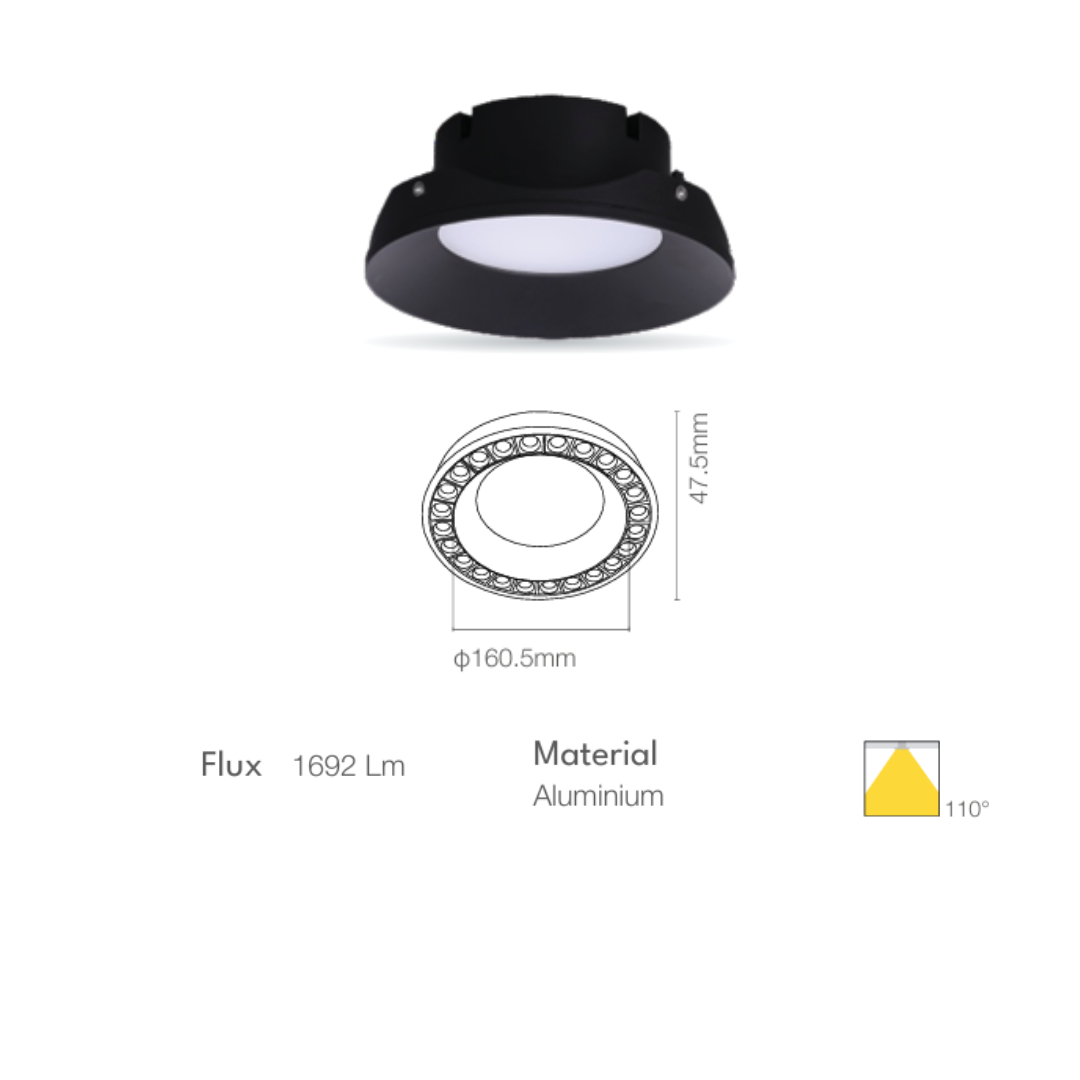

LINEAR-R-SMD-B3-18W
-
Wattage: 18W
-
LED: Toyonia Led
-
Luminous Flux: 1692Lm
-
Size: Ø160.5x47.5mm
-
Cut Out: Ø145mm
-
CCT: 2700K-6500K
-
Beam Angle: 110°
-
IP Code: 20
-
Material: Aluminium
-
Body Colour: White/Black
Ideal For:
-
Modern Residential: Living rooms, kitchens, bedrooms, and utility areas requiring broad, even illumination.
-
Commercial Spaces: Offices, retail environments, and common areas where uniform and high-output general lighting is essential.
-
Hospitality: Hotel rooms, corridors, and lounges, providing versatile and adaptable lighting solutions.
Experience the perfect fusion of contemporary design, advanced LED technology, and superior illumination with the LINEAR-R-SMD recessed downlight series.
