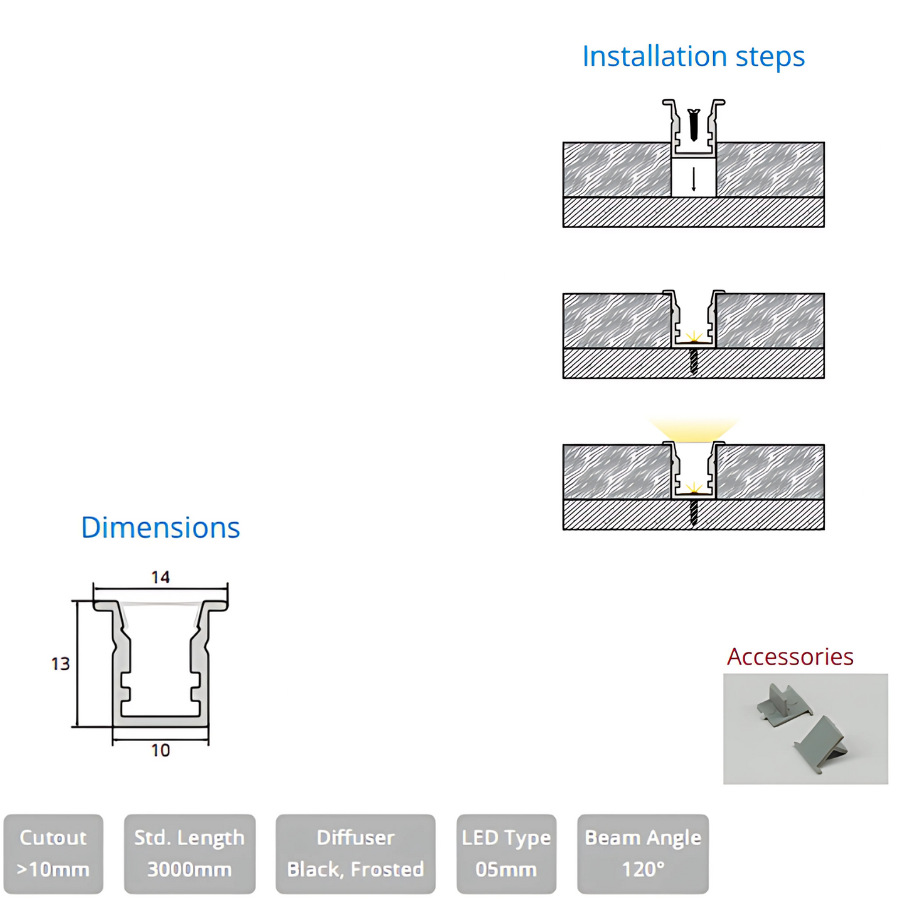

Installation Steps: The top section illustrates a straightforward recessed installation process. The U-shaped profile with a slightly flared top edge is designed to be inserted into a pre-cut groove in a surface. The diagram shows it being pushed into the cutout, secured, and then the light emitting upwards, indicating a flush, integrated lighting solution.
Dimensions: A cross-sectional diagram provides the measurements: 13mm in height, 10mm in width at the base, and 14mm in width at the top lip. This indicates a relatively compact profile designed for discreet integration.
Cutout Requirement: The "Cutout >10mm" specification indicates the minimum width of the groove needed for installation, corresponding to the base width of the profile.
Standard Length: It comes in a "Std. Length 3000mm" (3 meters).
Diffuser Options: Available diffusers include "Black, Frosted," offering versatility in light diffusion and aesthetic.
LED Type: Designed for "LED Type 05mm" (likely referring to the width or type of LED strip it accommodates).
Beam Angle: A "Beam Angle 120°" indicates a wide, general illumination, suitable for broad and uniform light distribution.
Accessories: An image shows small clips, which are likely mounting clips for securing the profile within the cutout.
Overall Impression:

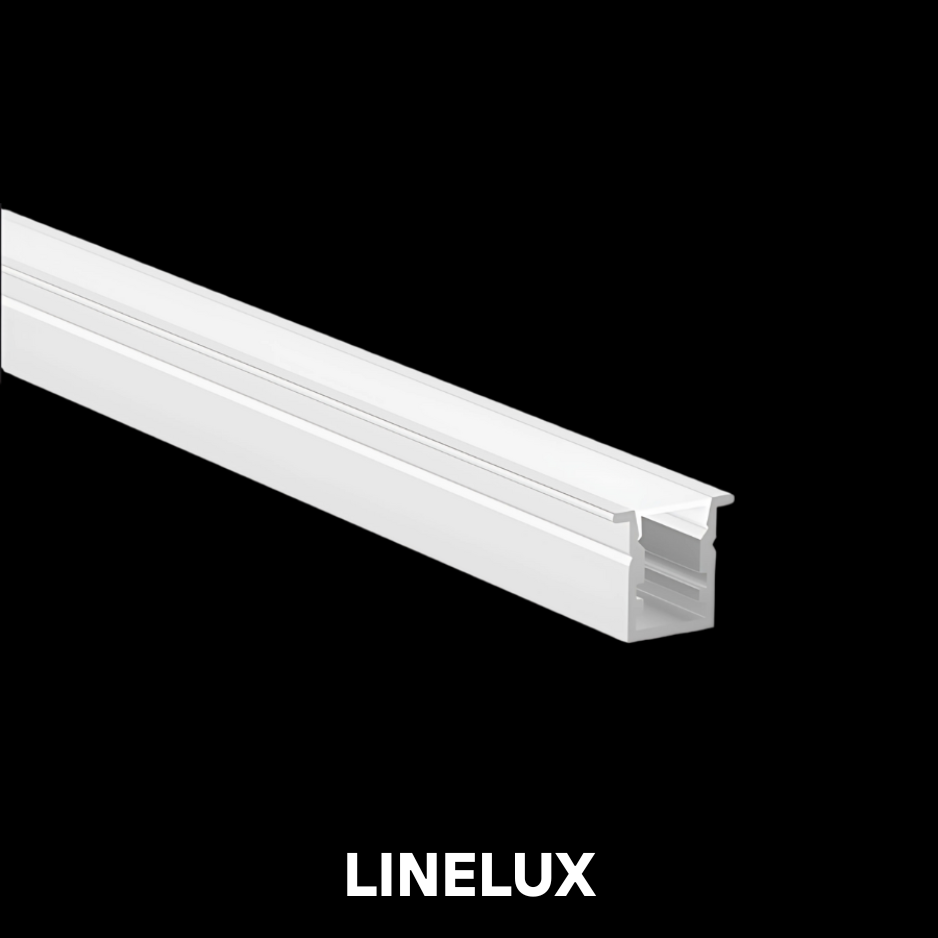

This lighting profile appears to be a versatile recessed linear solution. Its compact dimensions and simple recessed installation make it suitable for a variety of applications where a subtle, continuous line of wide-angle light is desired. It could be used in furniture, shelving, display cases, or architectural details to provide ambient or accent lighting without a visually prominent fixture. The "Black" diffuser option suggests possibilities for creating a more dramatic or "hidden until lit" effect.
