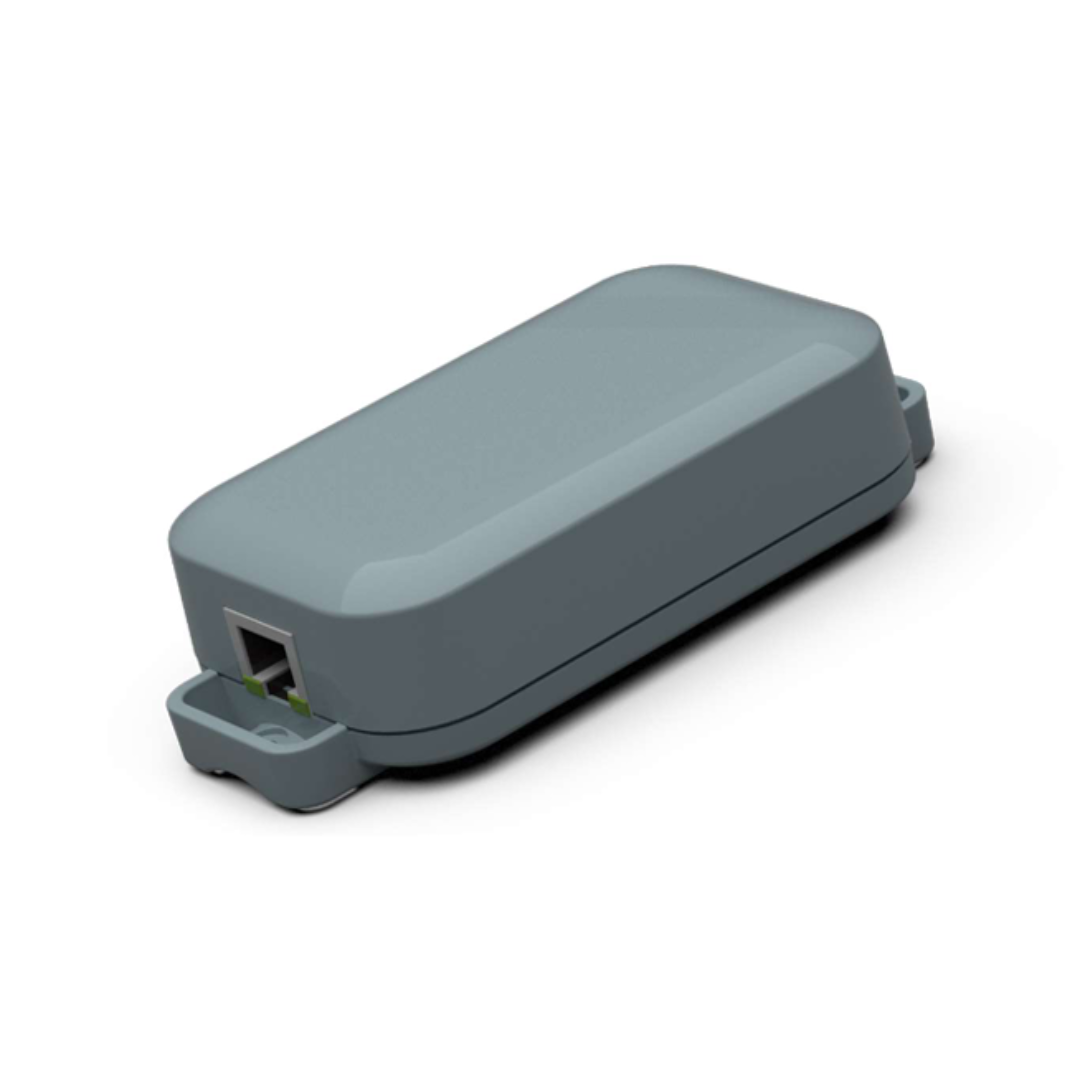

LITHERNET CASAMBI GATEWAY

Lithernet Casambi Gateway

The "Lithernet - Casambi Gateway" enables Ethernet-based & nbsp; integration of the Casambi Bluetooth system into a cross system building managment or comprehensive lighting  control system - including a variety of innovation options.  Whether - bidirectional communication - coupling two Casambi Bluetooth networks via Ethernet - programming via web interface - programming 32 commands (in- and outgoing) for custom & nbsp; defined ASCII Commands - transparent bridge mode  - POE powered - Many different integrated Protocols  the "Lithernet - Casambi Gateway" opens up new  dimensions in professional lighting control via smartphone & nbsp; and tablet.

Gateway Mode

• Transparent Gateway Mode for all Casambi commands -
• ASCII based UDP packages
• Device States can be queried

Integrated Protocols

• Eutrac Netcomposer (UDP)
• HelvarNet (TCP)
• ArtNet
• BacNet/IP
• MQTT
• UDP ASCII Commands and many more …

Control Options

• In: Level. Scene. Tc, RGBWAF, Hue/Sat, Luxlevel, Fadetime …
• Out: Number, Scene or Group or Device State and Level
•  Options depend on selected Control M

Technical specifications:

Dimensions: 120x65x35 mm
Weight:  ca. 95g
Ambient temperature.: 0 … +40°C
Mounting: Mast, Wand, Einwurf
Power supply: PoE(802.3af, 802.3at)
Protection class: IP20
EMC: EN55015, EN 61000-3-2
