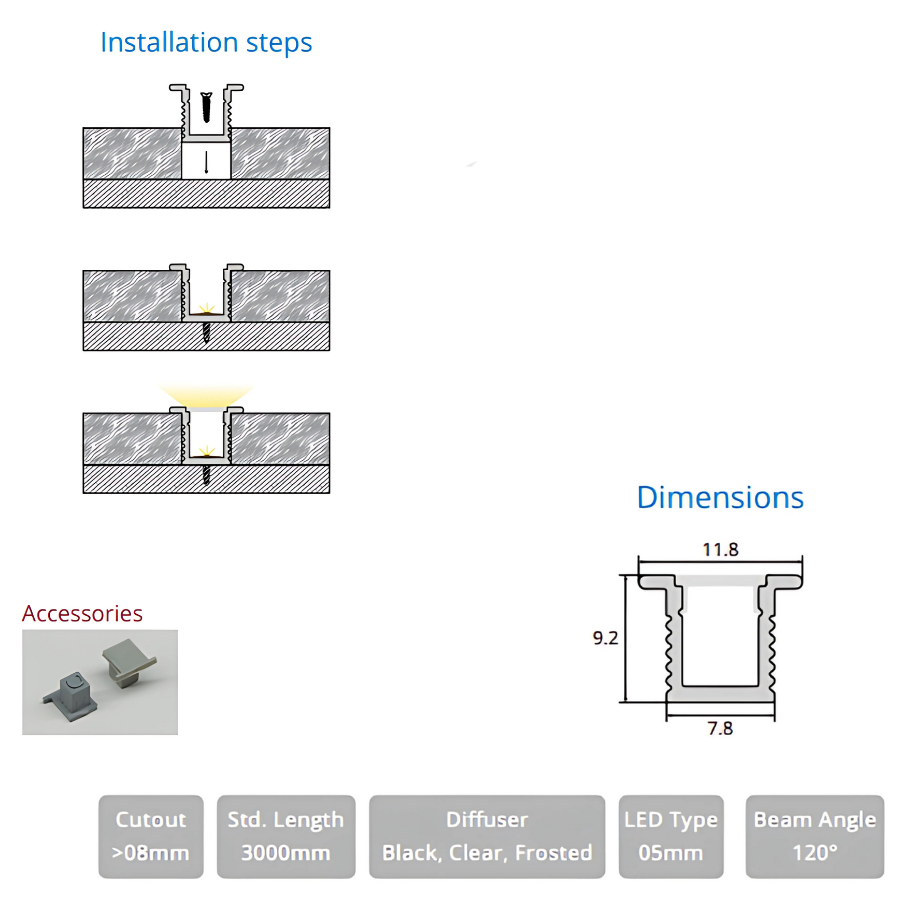

Installation Steps: The top section illustrates a straightforward recessed installation. The profile has a "U" shape with a small lip at the top. It is designed to be inserted into a routed channel, and the lip helps it sit flush with the surface. The final step shows the light emitting upwards, indicating its function as an integrated light source.
Dimensions: A cross-sectional diagram provides the measurements: 9.2mm in height, 7.8mm in width at the base, and 11.8mm in width at the top lip. These dimensions indicate a very slim and discreet profile.
Cutout Requirement: The "Cutout >08mm" specification suggests the minimum width of the groove needed for installation, matching the approximate width of the profile's top lip.
Standard Length: It comes in a "Std. Length 3000mm" (3 meters).
Diffuser Options: Available diffusers include "Black, Clear, Frosted," offering versatility in light diffusion and aesthetic.
LED Type: Designed for "LED Type 05mm" (likely referring to the width or type of LED strip it accommodates).
Beam Angle: A "Beam Angle 120°" indicates a wide, general illumination, suitable for broad and uniform light distribution.
Accessories: An image shows small clips, which are likely mounting clips for securing the profile within the cutout.
Overall Impression:

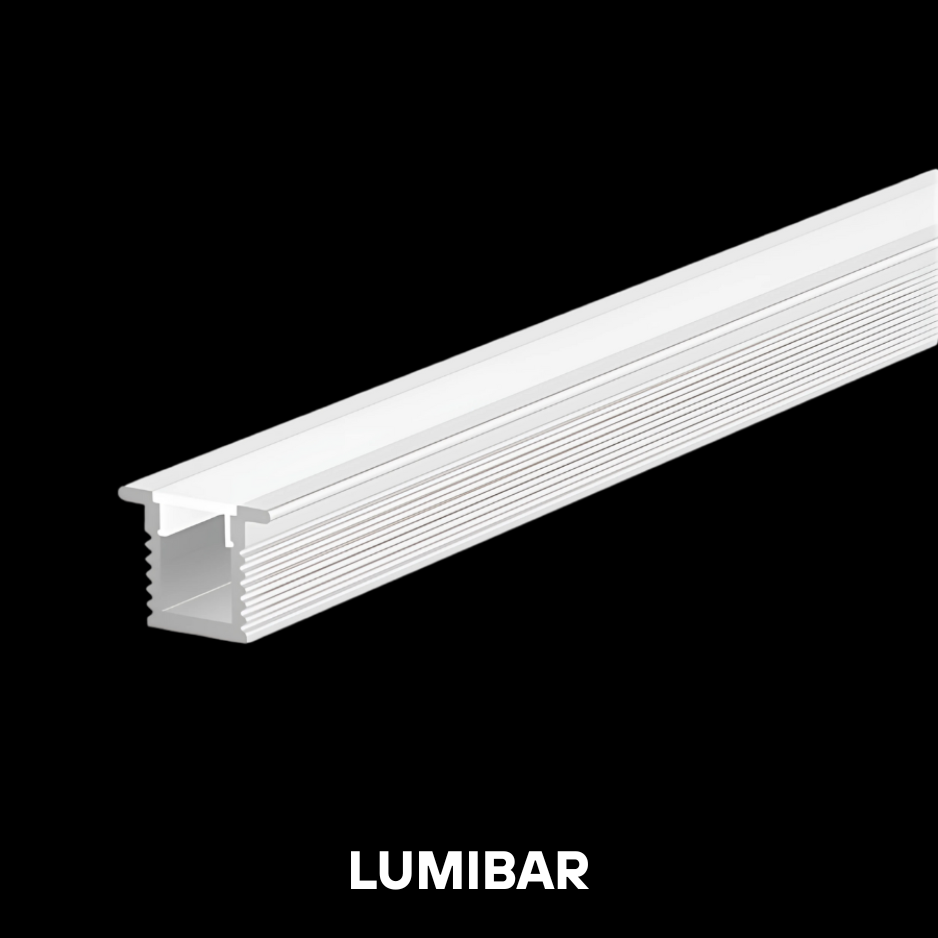

The "LUMI BAR" is a highly compact and discreet recessed linear lighting profile. Its slim design and simple installation make it suitable for a wide range of applications where a subtle, continuous line of wide-angle light is desired. It's ideal for integrating into furniture, shelving, display cases, or architectural details to provide ambient or accent lighting without a visually prominent fixture. The multiple diffuser options allow for customization based on the desired light effect and aesthetic.
