MATRIX 2W–20W Recessed LED Downlight
Tax excluded. Shipping calculated at checkout
MATRIX · 2W / 4W / 12W / 20W
MATRIX is a recessed LED downlight family in 2W, 4W, 12W and 20W, with a 36° beam, CRI 80+ and white or black body. Fixed 3000K, 4000K and 6000K are offered with a True driver. The 12W size also supports the listed RF, Smart, True DALI DT6 and True DALI DT8 configurations.

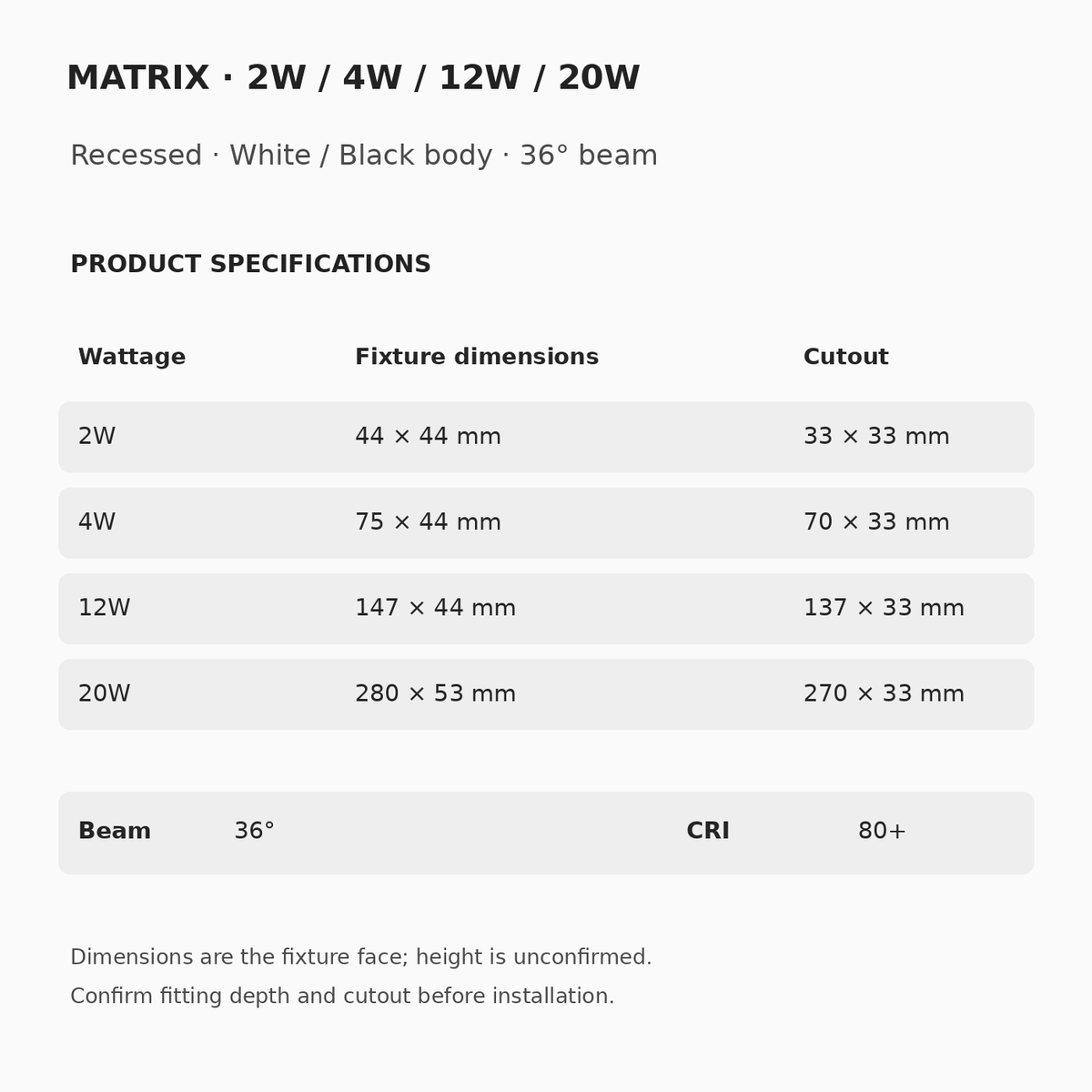

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 2W | 44 × 44 mm | 33 × 33 mm |
| 4W | 75 × 44 mm | 70 × 33 mm |
| 12W | 147 × 44 mm | 137 × 33 mm |
| 20W | 280 × 53 mm | 270 × 33 mm |
Beam options: 36°. CRI: 80+. These specifications apply to every listed wattage.
The listed dimensions describe the fixture face. Overall height is not provided, so confirm fitting depth, driver clearance and the selected mounting template before installation. Allow separate space for the selected driver, wiring and installation clearance.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

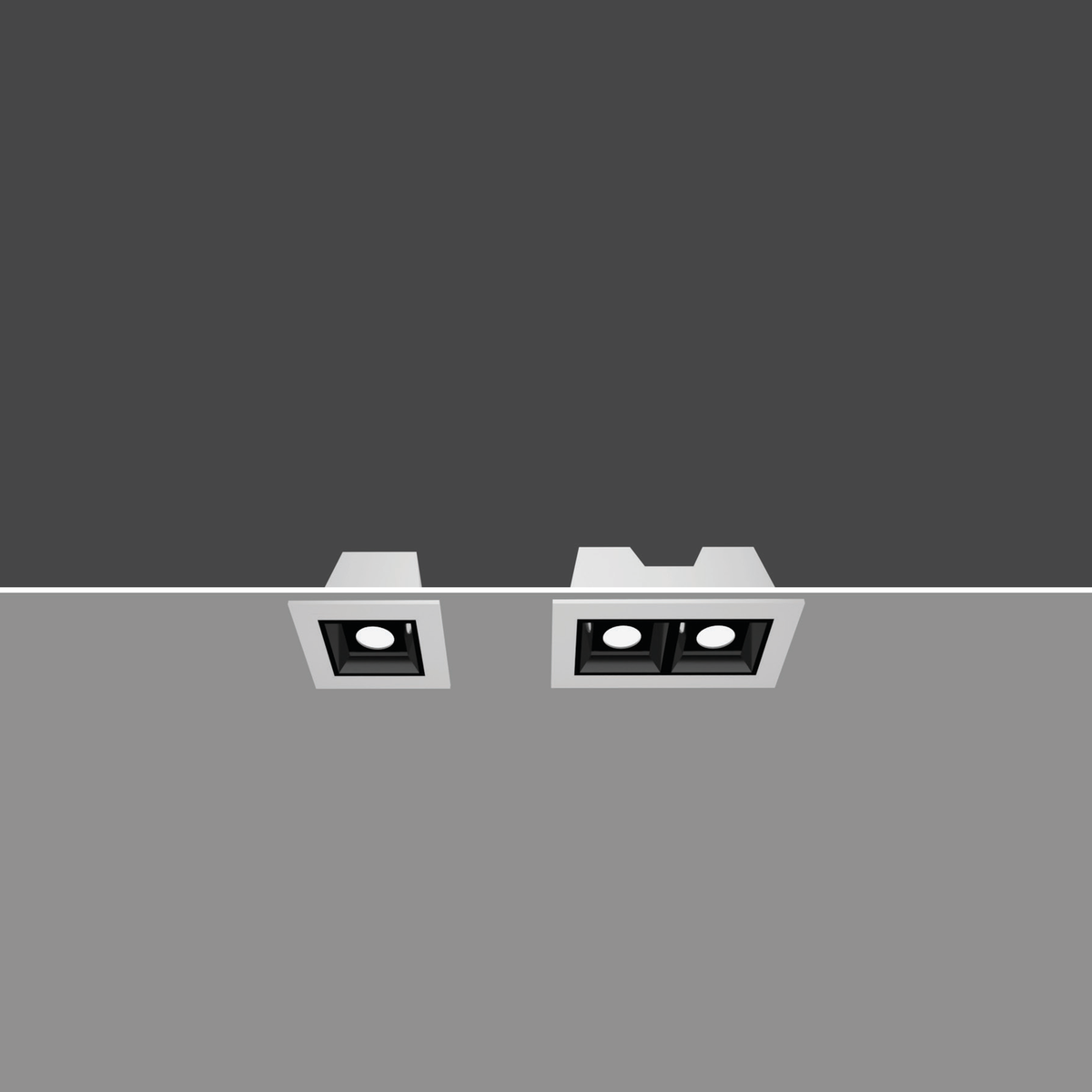

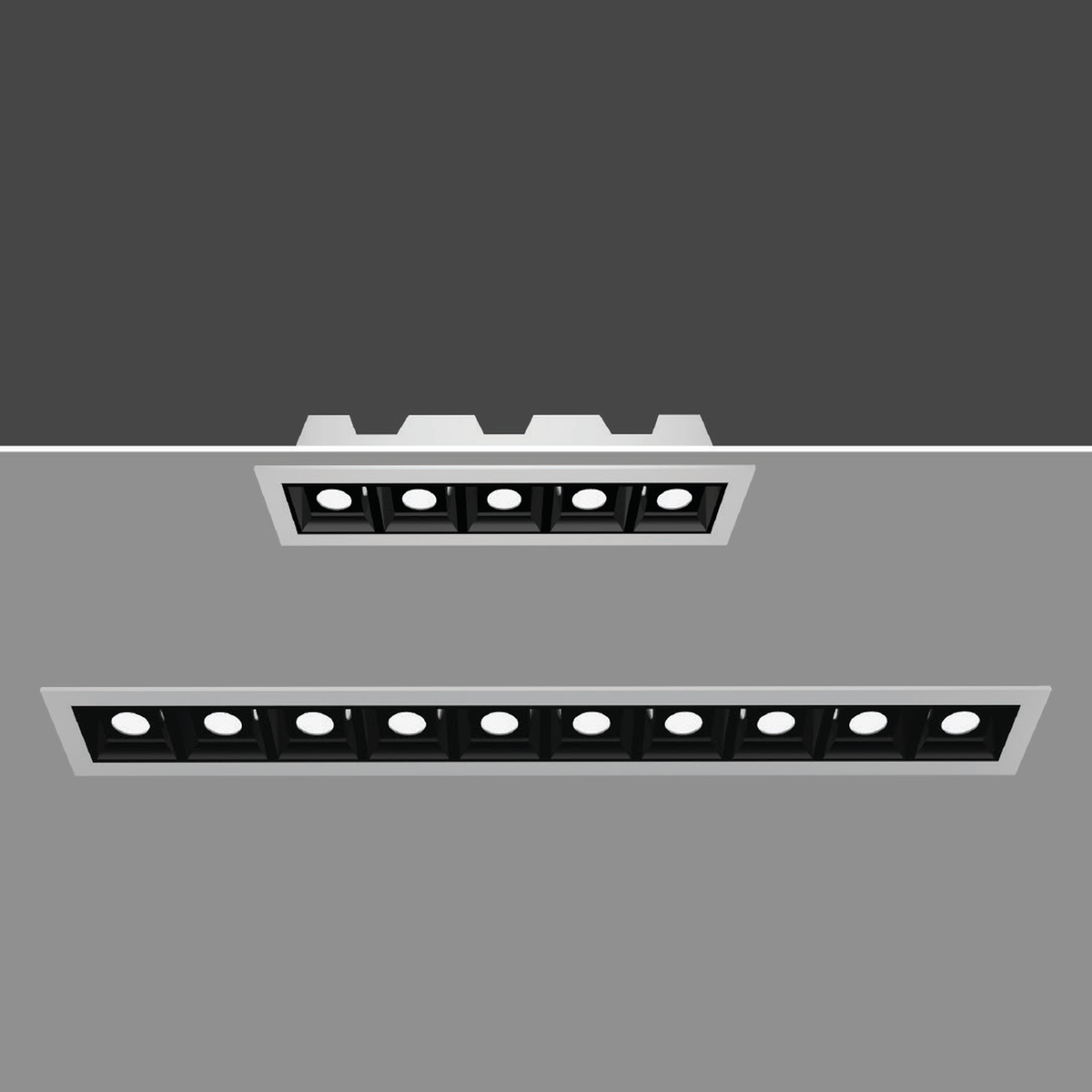

The original white-body photographs show the 2W/4W and 12W/20W families. They are retained as unassigned family references because each image contains multiple wattages. Black-body photographs are unavailable.
Light colour and control
- Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 2W, 4W, 12W, 20W.
- CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 12W.
- Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 12W.
- DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 12W.
- DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 12W.
DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.
Configuration prices excluding GST
2W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹852.50 |
| CCT-RF remote | Not offered |
| Alexa/Tuya smart | Not offered |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
4W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹1,188.00 |
| CCT-RF remote | Not offered |
| Alexa/Tuya smart | Not offered |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
12W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹1,529.00 |
| CCT-RF remote | ₹3,753.20 |
| Alexa/Tuya smart | ₹3,958.90 |
| DALI / True DT6 | ₹3,767.50 |
| DALI Tunable / True DT8 | ₹5,709.00 |
20W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹3,476.00 |
| CCT-RF remote | Not offered |
| Alexa/Tuya smart | Not offered |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
Prices apply to the listed body finishes. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Check the selected wattage’s ceiling cutout, fitting dimensions and available ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
