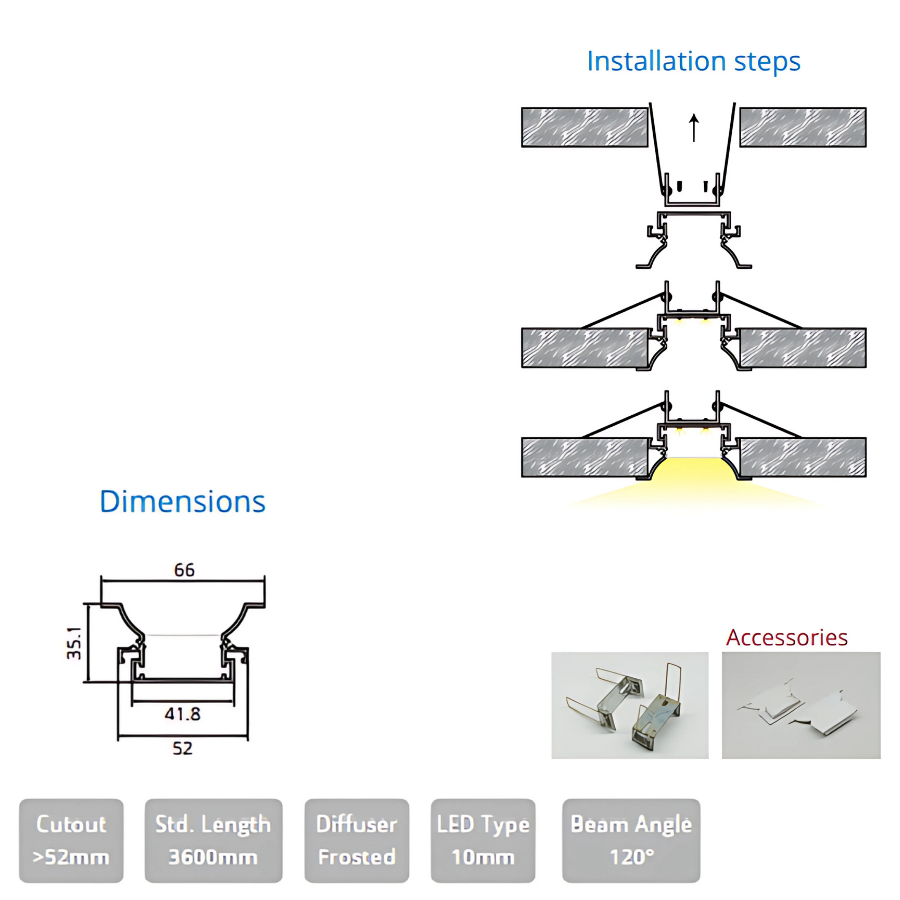

Installation Steps: The top section clearly illustrates a plaster-in (trimless) recessed installation. The profile has wide, angled flanges designed to be embedded and plastered over into a cutout in a surface (like plasterboard). This method ensures a perfectly flush finish, making the light appear to emerge directly from the surface itself without any visible trim. The diagram shows the profile being inserted, secured, and then plastered around to create a smooth transition.
Dimensions: A cross-sectional diagram provides the measurements: 35.1mm in overall height. The base width that slots into the cutout is 52mm, and the overall width including the plaster-in wings is 66mm. The inner channel for the LED is 41.8mm wide. These dimensions indicate a substantial profile, likely suitable for achieving significant light output and a broad, continuous luminous line.
Cutout Requirement: The "Cutout >52mm" specification confirms the required width for the recess, matching the base of the profile.
Standard Length: It comes in a "Std. Length 3600mm" (3.6 meters), which is a longer standard length than typical, allowing for fewer joints over extended runs and a more seamless appearance.
Diffuser Type: It specifies "Diffuser Frosted," which is a common choice for linear profiles, ensuring a smooth, diffused, and uniform light output, effectively hiding individual LED points.
LED Type: Designed for "LED Type 10mm" (likely referring to the width or type of LED strip it accommodates), indicating it can house wider and potentially more powerful LED strips.
Beam Angle: A "Beam Angle 120°" indicates a wide, general illumination, ideal for broad and uniform light distribution, fitting with the "Omni Glow" name.
Accessories: Images show two types of accessories:
Spring clips: These are likely used to securely hold the profile in place within the plasterboard cutout during installation.
End caps: These provide a clean, finished appearance for the ends of the profile when it's not butted against another section.
Overall Impression:

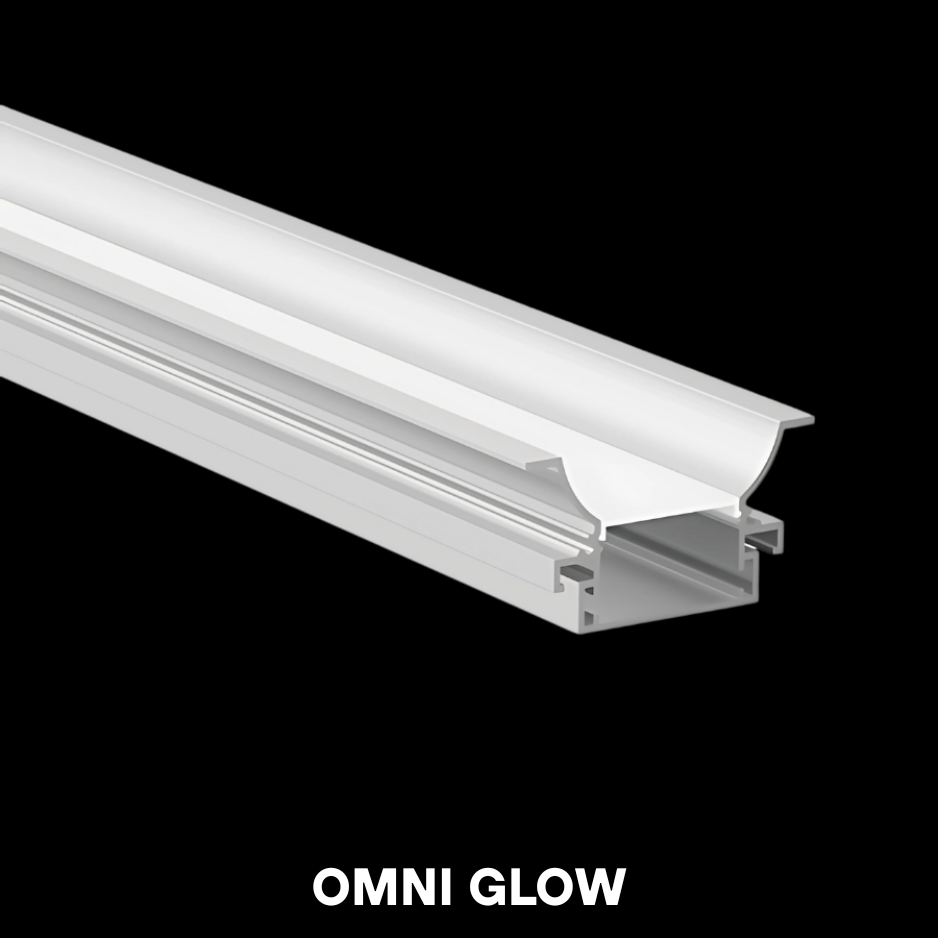

The "OMNI GLOW" is a premium and robust "plaster-in" or "trimless" recessed linear lighting profile. Its wide base and flanges are specifically designed for seamless integration into ceilings and walls, offering a clean, architectural aesthetic where the light source virtually disappears into the surface. The ability to house wider LED strips, combined with the frosted diffuser and wide beam angle, suggests it's capable of delivering significant and uniform ambient or general lighting. The longer standard length further enhances its appeal for creating continuous, uninterrupted lines of light in contemporary and minimalist designs.
