ORB 7W Single & 14W Twin Recessed Spotlight

ORB · 7W Single / 14W Twin

ORB is a recessed LED spotlight family offered as a 7W single-head fitting or a 14W twin-head fitting with two 7W light sources. Both versions offer a white or black body, 24° or 36° beams and CRI 80+.

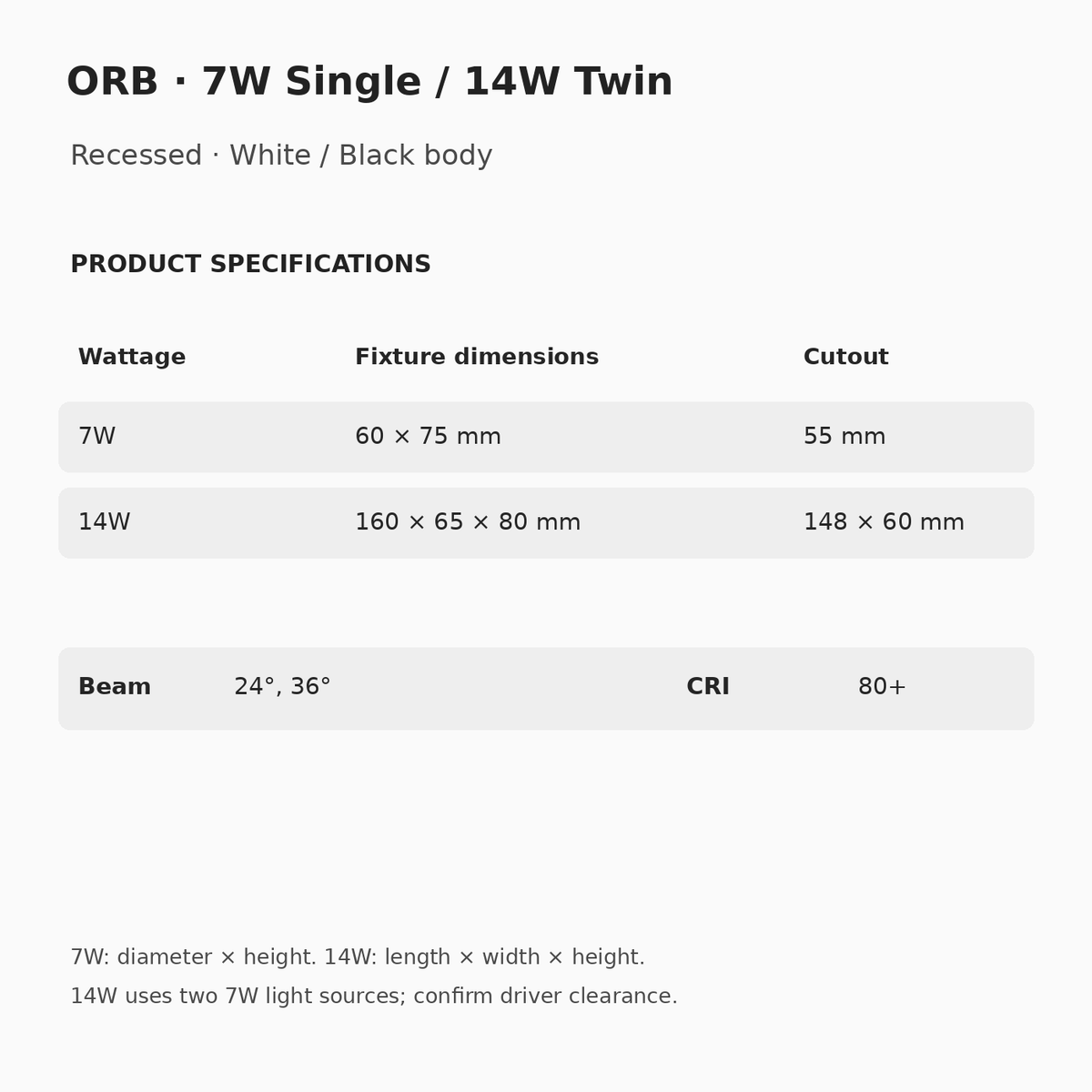

Product specifications

Beam options: 24°, 36°. CRI: 80+. These specifications apply to every listed wattage.

Recessed mounting. The 7W dimensions are outside diameter × fixture height. The 14W dimensions are length × width × fixture height; its 160 mm outside span and 80 mm height differ from the single-head fitting. Ceiling cutouts are listed separately. Allow separate space for the selected driver, wiring and installation clearance.

Body and reflector finish

The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

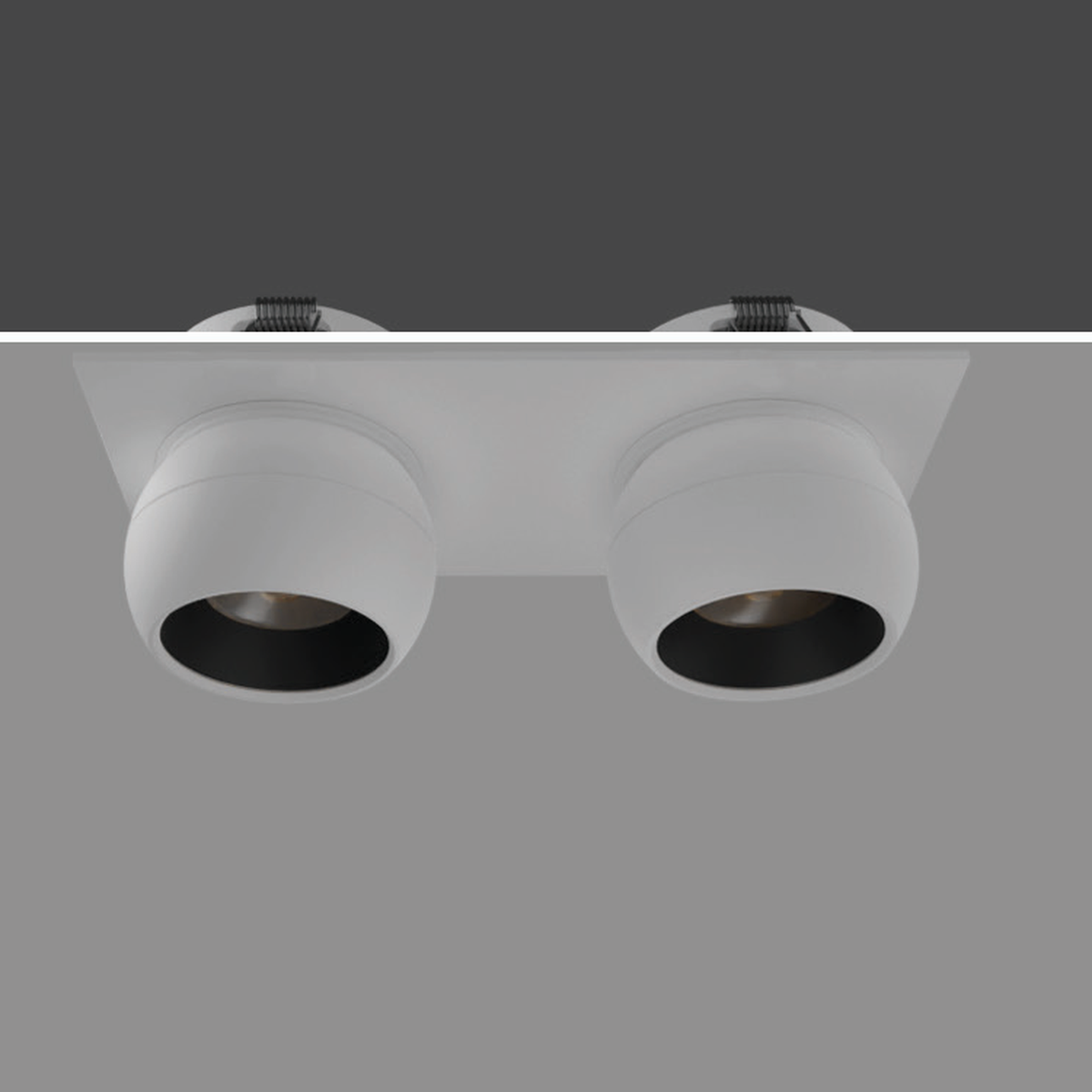

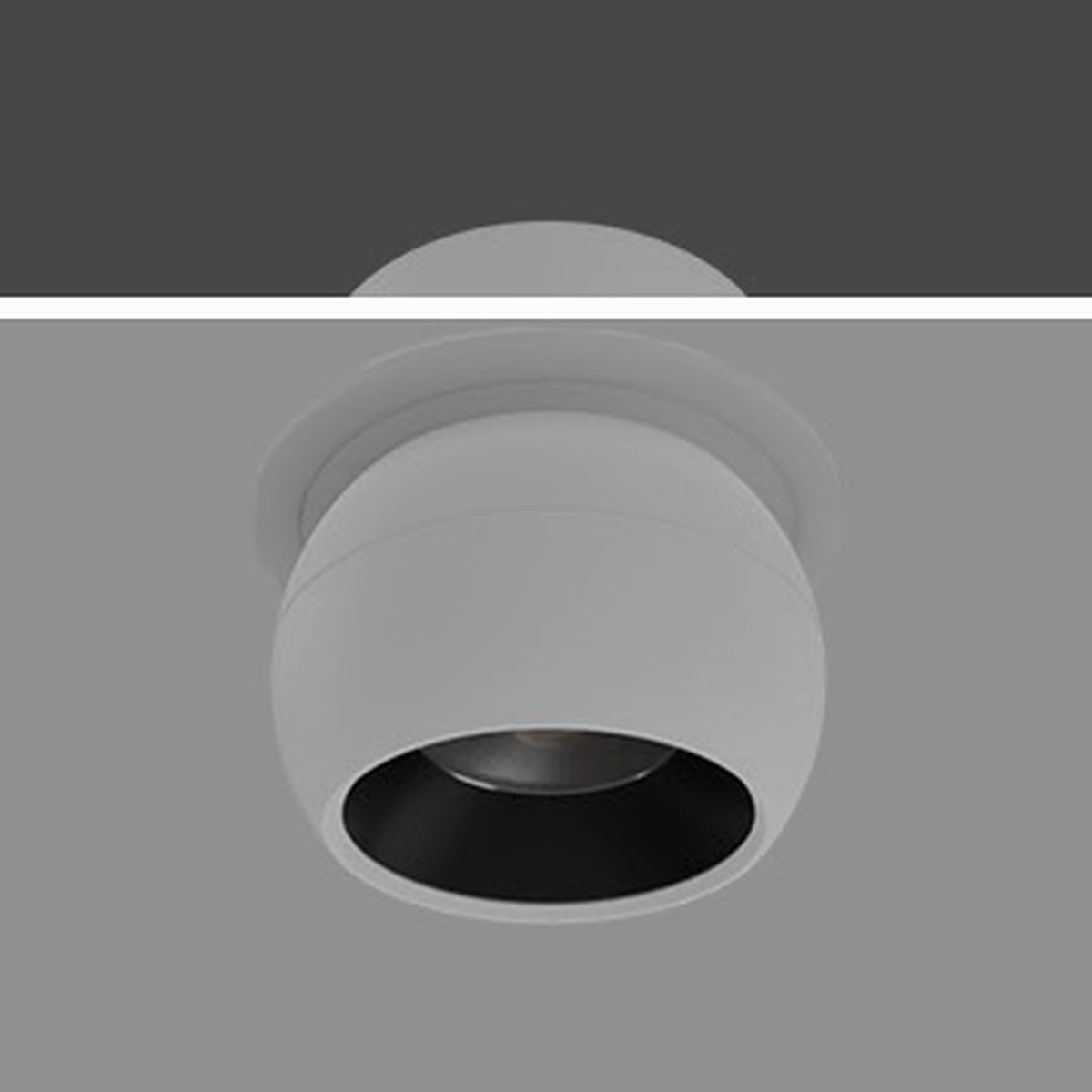

The gallery shows separate white-body installation references for the 7W single-head and 14W twin-head fittings. Black-body reference images are not available, so the gallery does not show the selected black finish.

Light colour and control

• Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 7W, 14W.
• CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 7W, 14W.
• Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 7W, 14W.
• DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 7W, 14W.
• DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 7W, 14W.

DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.

Configuration prices excluding GST

7W

14W

Prices apply to the listed body finishes and beam angles. Unconfirmed configurations are not offered as purchasable variants.

What is included

The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.

Before you order

GST is additional. Check the selected wattage’s ceiling cutout, fitting dimensions and available ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
