ORIN 10W–24W Slim Surface Diffused Downlight
Tax excluded. Shipping calculated at checkout
ORIN · 10W–24W
ORIN is a slim round surface-mounted LED downlight with a 36 mm fixture height, a 120° beam and CRI 80+. Choose 10W, 18W or 24W, a white or black body, and fixed 3000K, 4000K or 6000K light with a True LED driver.

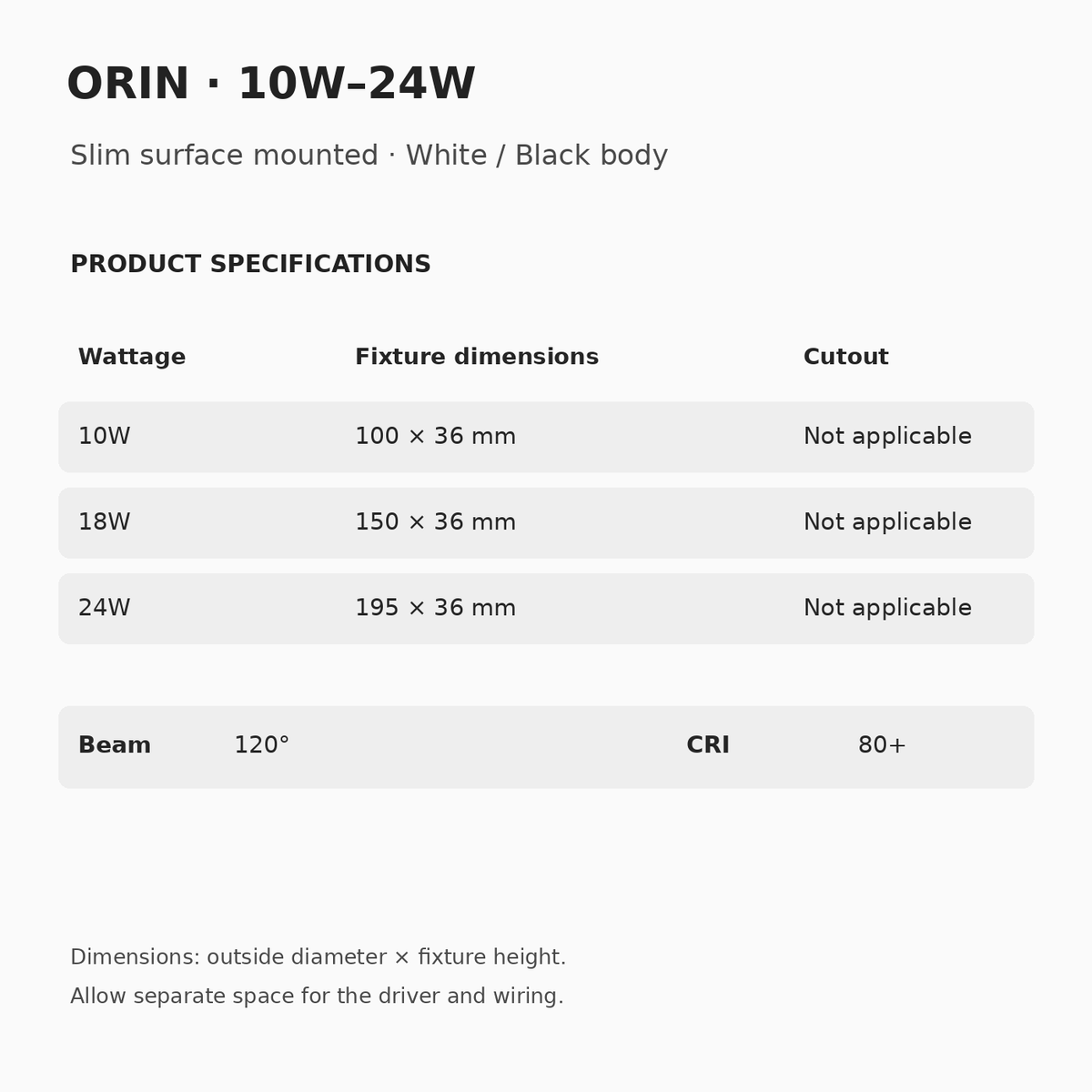

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 10W | 100 × 36 mm | Not applicable |
| 18W | 150 × 36 mm | Not applicable |
| 24W | 195 × 36 mm | Not applicable |
Beam options: 120°. CRI: 80+. These specifications apply to every listed wattage.
Surface mounting; no recessed ceiling cutout applies. The listed outside diameter × fixture height is 100 × 36 mm for 10W, 150 × 36 mm for 18W, and 195 × 36 mm for 24W. Confirm fitting clearance and the mounting arrangement before installation. Allow separate space for the selected driver, wiring and installation clearance.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

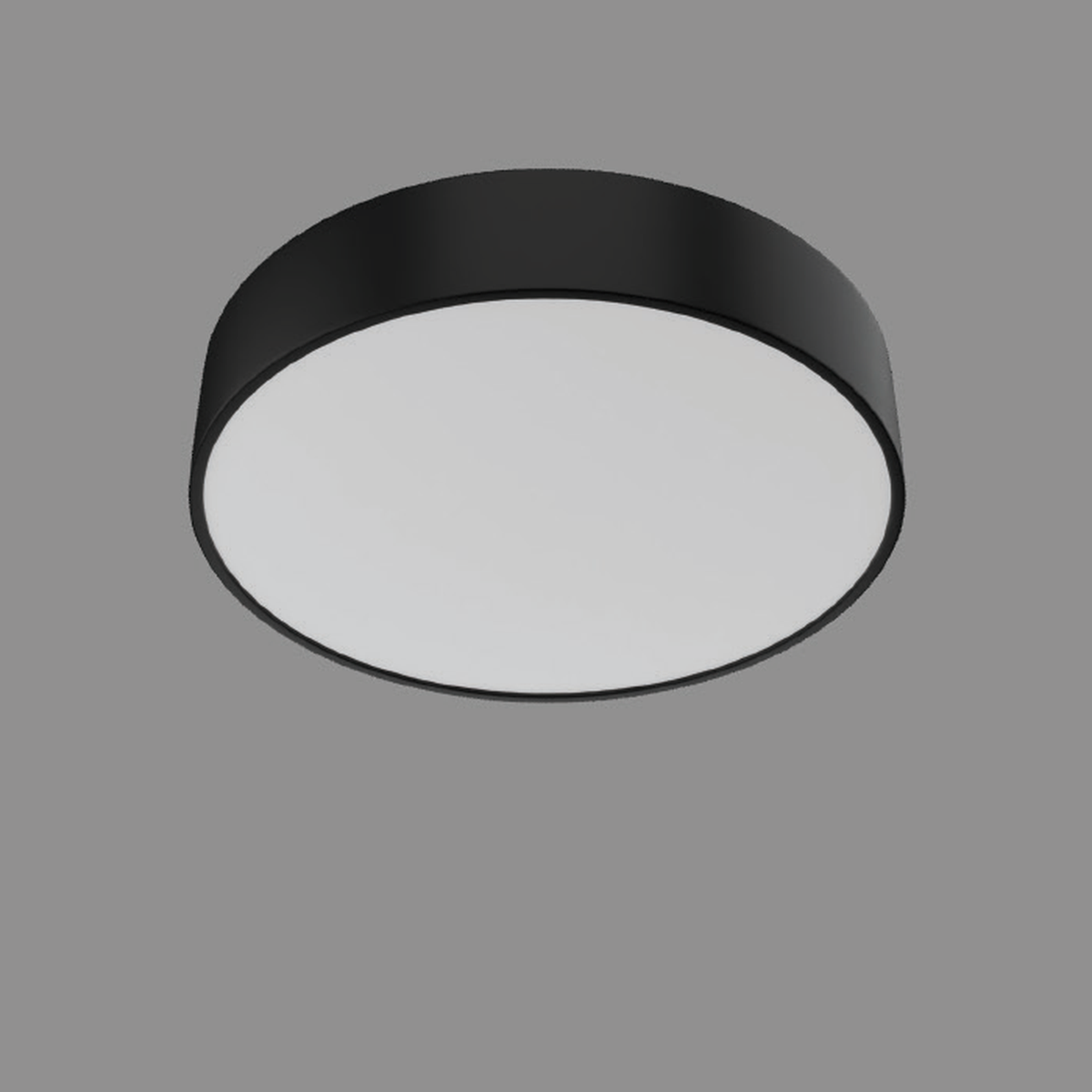

The original black-body photograph is a family reference and does not identify the pictured wattage. It is not assigned to wattage or finish variants. A white-body photograph is unavailable.
Light colour and control
- Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 10W, 18W, 24W.
Only fixed-white True-driver configurations are offered in this listing. Although a CCT icon appears in the specification, the source gives no separate RF, smart or DALI price; no tuning-control option is included here.
Configuration prices excluding GST
10W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹1,100.00 |
| CCT-RF remote | Not offered |
| Alexa/Tuya smart | Not offered |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
18W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹1,749.00 |
| CCT-RF remote | Not offered |
| Alexa/Tuya smart | Not offered |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
24W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹2,205.50 |
| CCT-RF remote | Not offered |
| Alexa/Tuya smart | Not offered |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
Prices apply to the listed body finishes. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Confirm fitting dimensions, mounting clearance and the wiring route with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
