OVATE 6W–20W Linear Recessed Downlight

OVATE · 6W / 10W / 20W

OVATE is a linear recessed LED downlight in 6W, 10W and 20W, with rounded-end optical housings, CRI 80+ and white or black body. Choose a 24°, 36° or 45° beam with the listed True-driver, RF, Smart, True DALI DT6 and True DALI DT8 configurations.

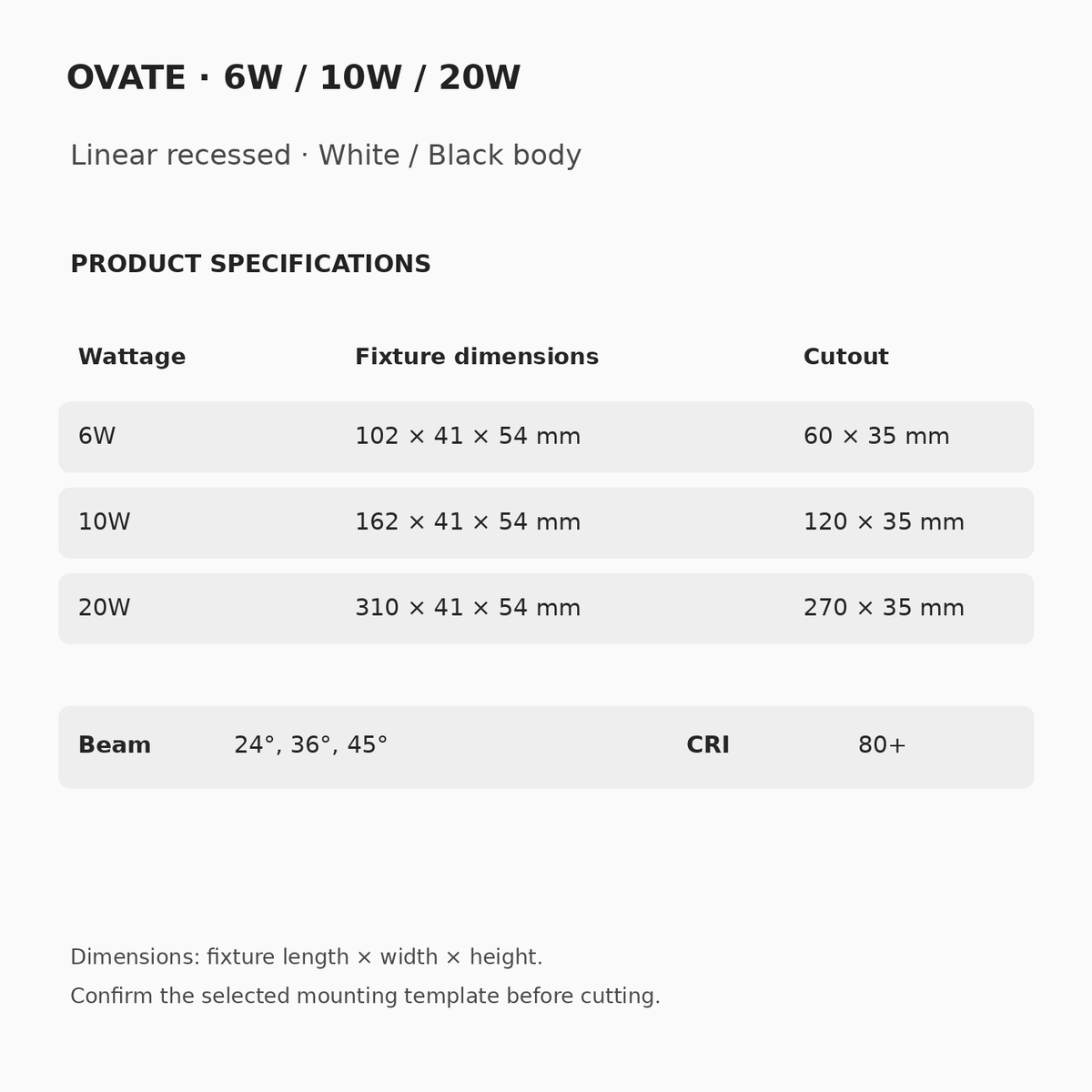

Product specifications

Beam options: 24°, 36°, 45°. CRI: 80+. These specifications apply to every listed wattage.

Fixture dimensions are listed as length × width × height. Each fitting is 41 mm wide and 54 mm high. Match the selected wattage’s printed cutout and confirm the complete mounting template before installation. Allow separate space for the selected driver, wiring and installation clearance.

Body and reflector finish

The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

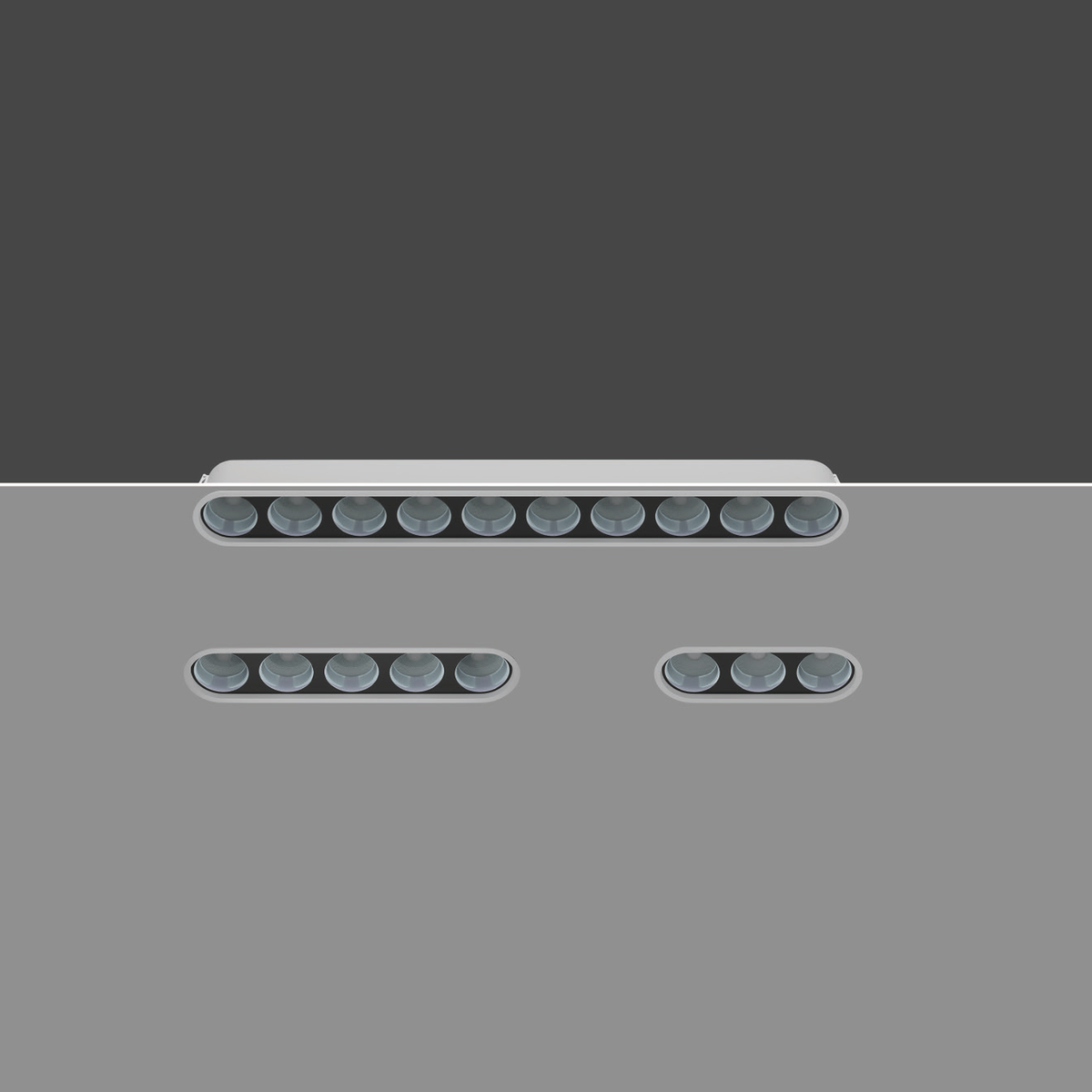

The original white-body family photograph contains the three optical layouts and is retained as an unassigned family reference. No image is used to imply a different finish or a particular beam angle. Black-body photographs are unavailable.

Light colour and control

• Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 6W, 10W, 20W.
• CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 6W, 10W, 20W.
• Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 6W, 10W, 20W.
• DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 6W, 10W, 20W.
• DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 6W, 10W, 20W.

DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.

Configuration prices excluding GST

6W

10W

20W

Prices apply to the listed body finishes and beam angles. Unconfirmed configurations are not offered as purchasable variants.

What is included

The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.

Before you order

GST is additional. Check the selected wattage’s ceiling cutout, fitting dimensions and available ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
