PISTON 20W IP65 Surface Downlight

PISTON · 20W

PISTON is a 20W cylindrical surface-mounted LED downlight with a 36° beam, CRI 90+ and an IP65 fixture rating. Choose a white or black body and 3000K, 4000K or 6000K fixed-white light with a True driver.

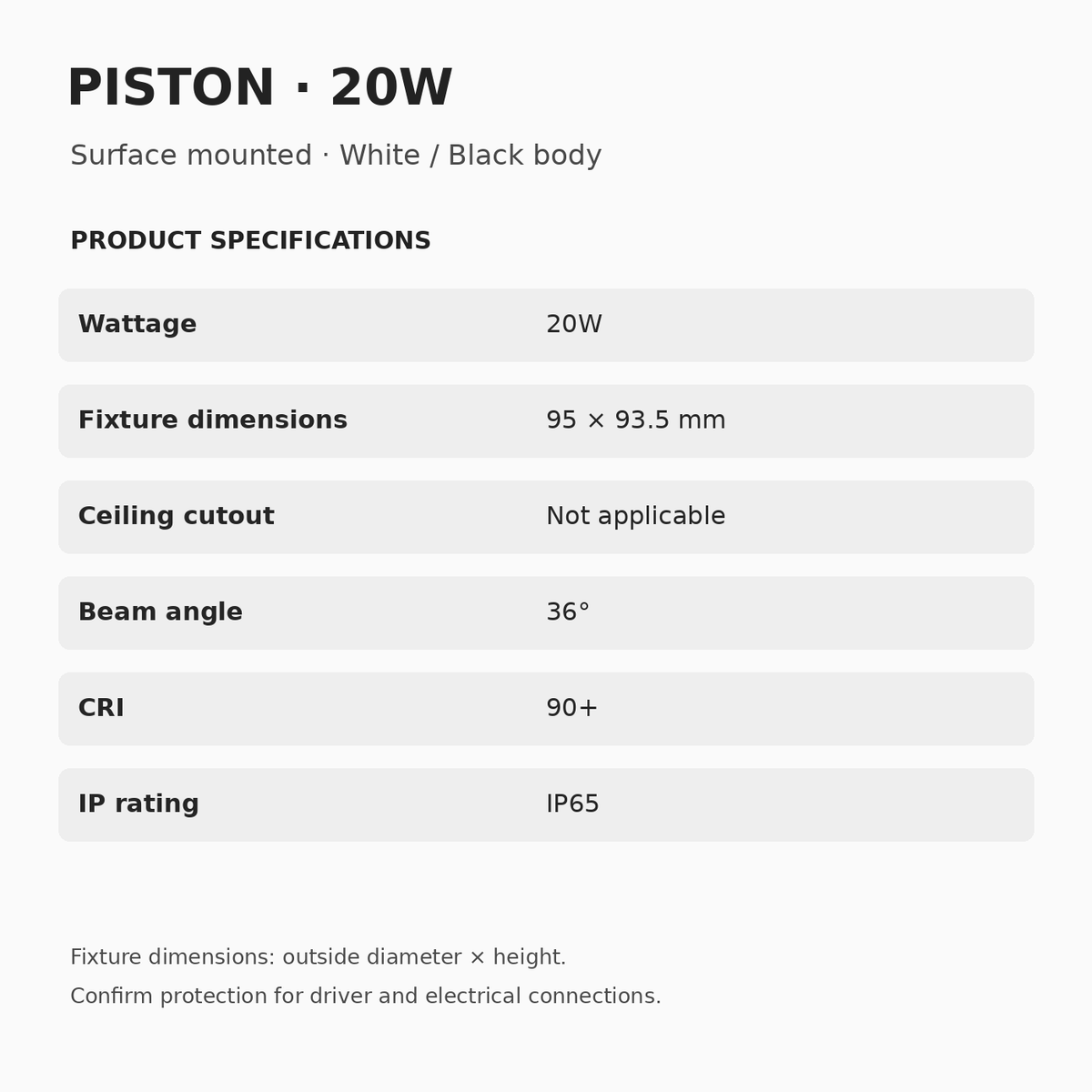

Product specifications

IP rating: IP65.

Surface mounting; no recessed ceiling cutout applies. Fixture dimensions are 95 mm outside diameter × 93.5 mm height. IP65 is the listed fixture rating; confirm the installation, electrical connections and driver protection required for the intended location. Confirm driver accommodation and installation clearance with your installer.

Body and reflector finish

The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

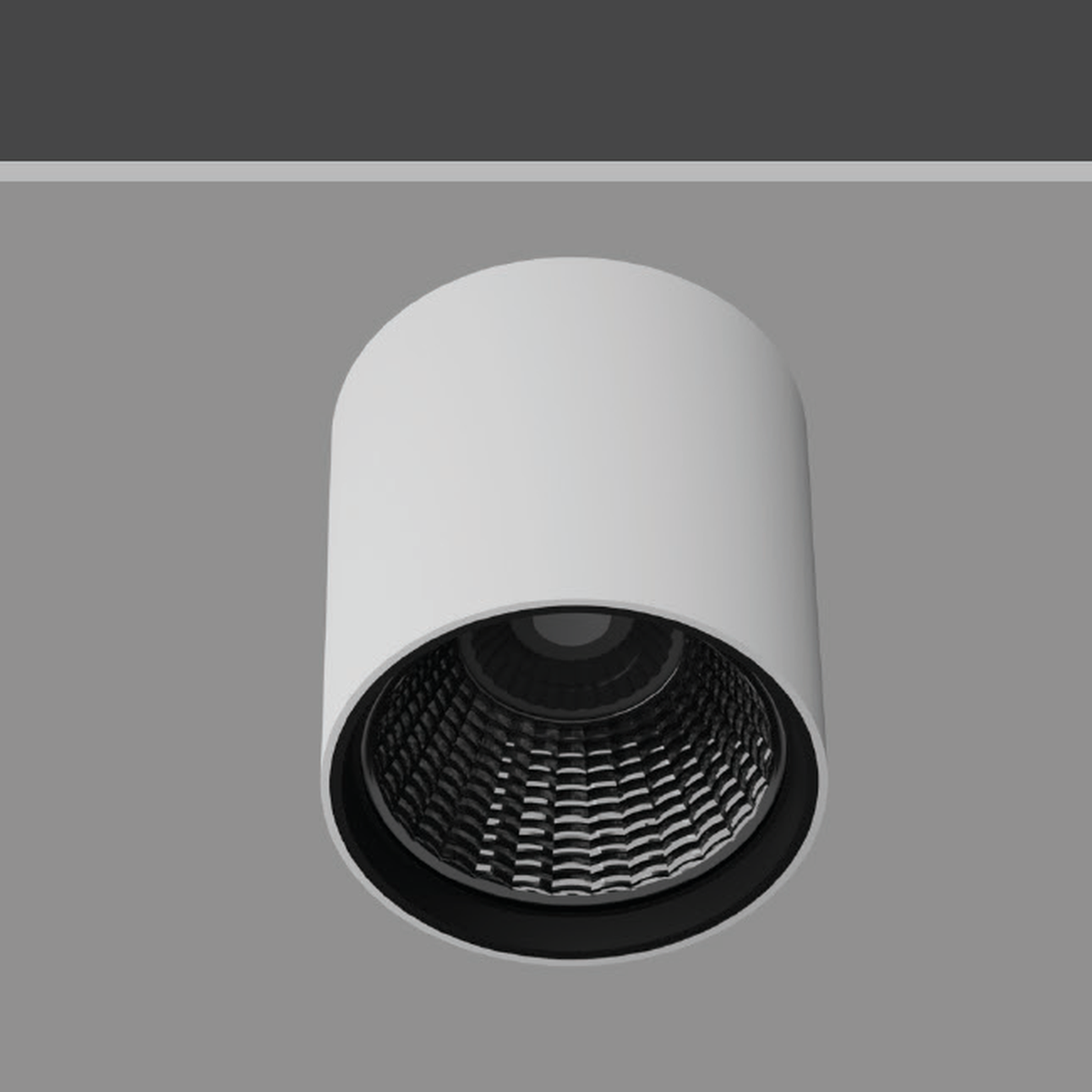

The product image is the white-body PISTON reference. A black-body reference image is not available, so the gallery image does not show the selected black finish.

Light colour and control

• Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 20W.

RF, smart and DALI configurations are not offered for this listing.

Configuration prices excluding GST

Prices apply to the listed body finishes. Unconfirmed configurations are not offered as purchasable variants.

What is included

The configuration price covers the selected light and True driver. Confirm installation-component and accessory requirements before ordering.

Before you order

GST is additional. Check the selected wattage’s fitting dimensions, mounting surface and wiring route with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
