RADAR-FIX 20W to 40W Recessed Downlight
Tax excluded. Shipping calculated at checkout
RADAR-FIX 20W–40W
RADAR-FIX is a fixed round recessed architectural LED downlight with CRI 80+ and a choice of 24°, 36° or 60° beam. Choose 20W, 30W or 40W, a white or black body finish and the supported light-colour and control configuration for your installation.

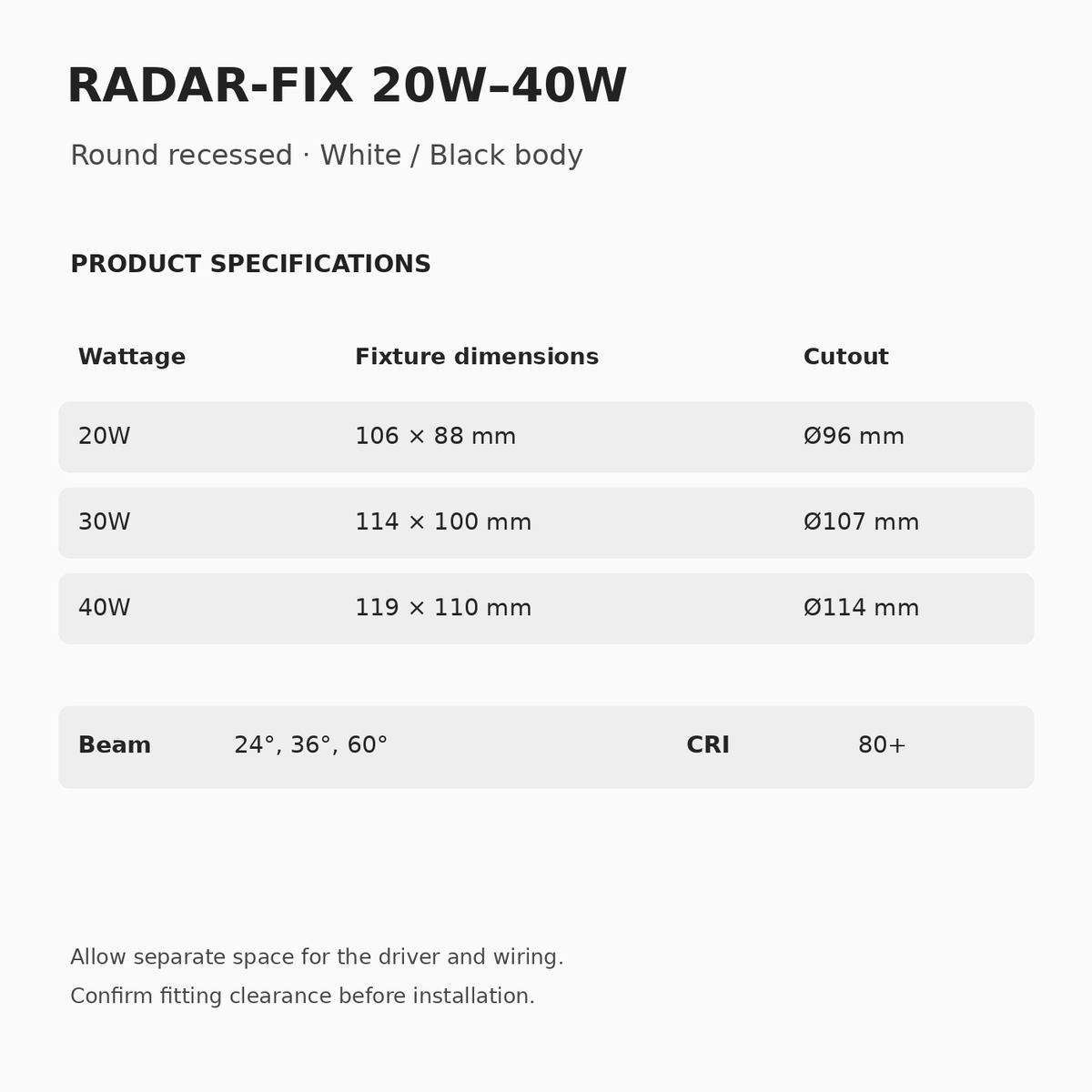

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 20W | 106 × 88 mm | Ø96 mm |
| 30W | 114 × 100 mm | Ø107 mm |
| 40W | 119 × 110 mm | Ø114 mm |
Beam options: 24°, 36°, 60°. CRI: 80+. These specifications apply to every listed wattage.
Fixed recessed mounting with a visible round trim. Allow separate space for the selected driver, wiring and installation clearance.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

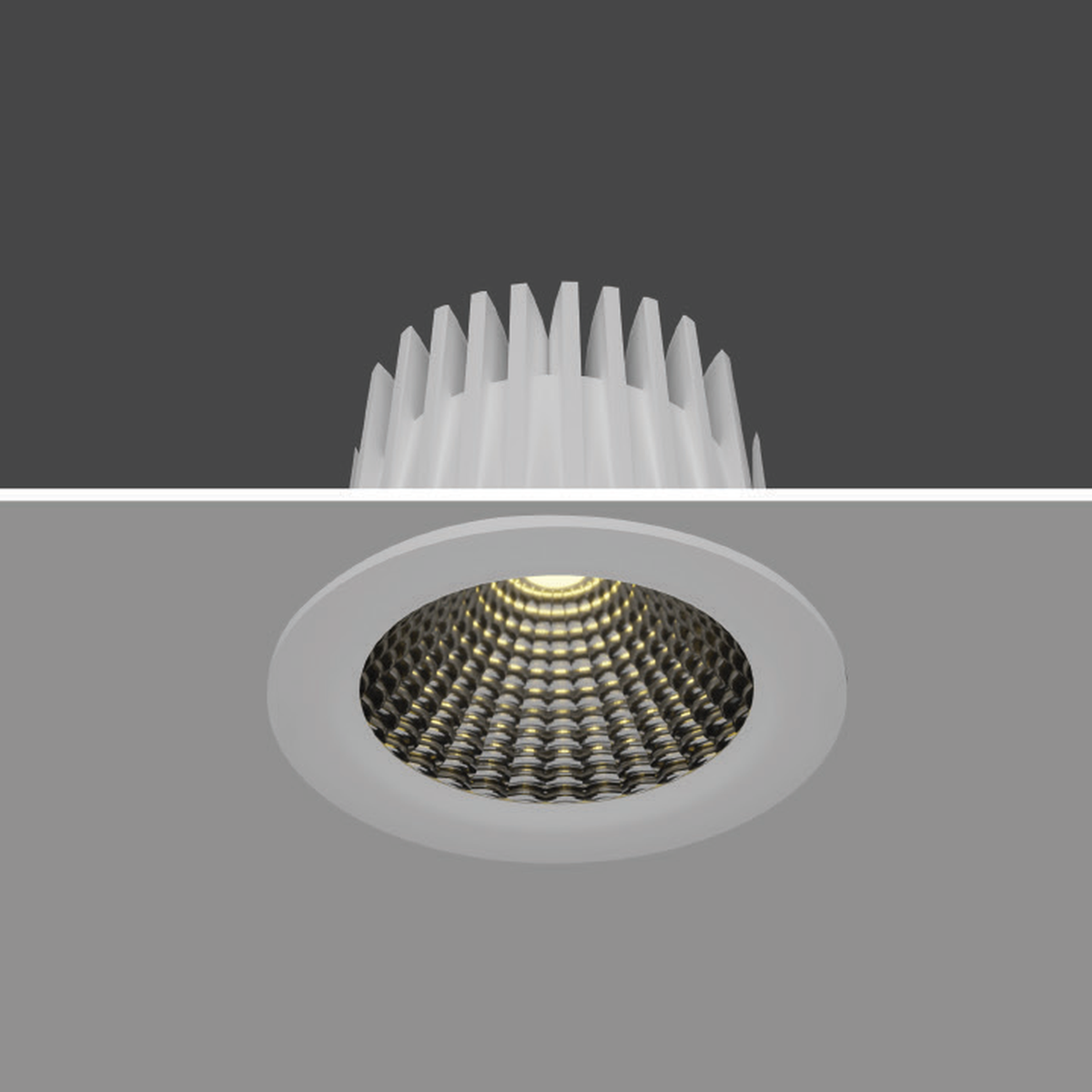

The product image is a representative white-body view of the RADAR-FIX family; the exact wattage shown is not identified. A black-body reference image is not available, so the gallery image does not show the selected black finish.
Light colour and control
- Fixed white: 3000K warm white, 4000K neutral white or 6000K cool white with a True LED driver. Available for 20W, 30W, 40W.
- CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 20W, 30W, 40W.
- Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 20W, 30W, 40W.
- DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 20W, 30W.
- DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 20W, 30W.
True DT6 and True DT8 configurations are not offered at 40W because those prices are unconfirmed.
DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.
Configuration prices excluding GST
20W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹2,783.00 |
| CCT-RF remote | ₹5,100.70 |
| Alexa/Tuya smart | ₹5,307.50 |
| DALI / True DT6 | ₹5,381.20 |
| DALI Tunable / True DT8 | ₹7,482.20 |
30W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹3,305.50 |
| CCT-RF remote | ₹5,623.20 |
| Alexa/Tuya smart | ₹5,830.00 |
| DALI / True DT6 | ₹5,903.70 |
| DALI Tunable / True DT8 | ₹8,162.00 |
40W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹4,174.50 |
| CCT-RF remote | ₹8,728.50 |
| Alexa/Tuya smart | ₹8,728.50 |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
Prices apply to the listed body finishes and beam angles. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Check the selected wattage’s ceiling cutout, fitting dimensions and available ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
