RADAR TRACK-01 20W, 30W & 40W Track Spotlights
Tax excluded. Shipping calculated at checkout
RADAR TRACK-01 · 20W–40W
RADAR TRACK-01 is a track-mounted LED spotlight with a circular optical head and an extended adapter housing. Choose 20W, 30W or 40W, a 24°, 36° or 60° beam, white or black body finish and an available True-driver, RF tunable-white, Alexa/Tuya smart or True DALI configuration.

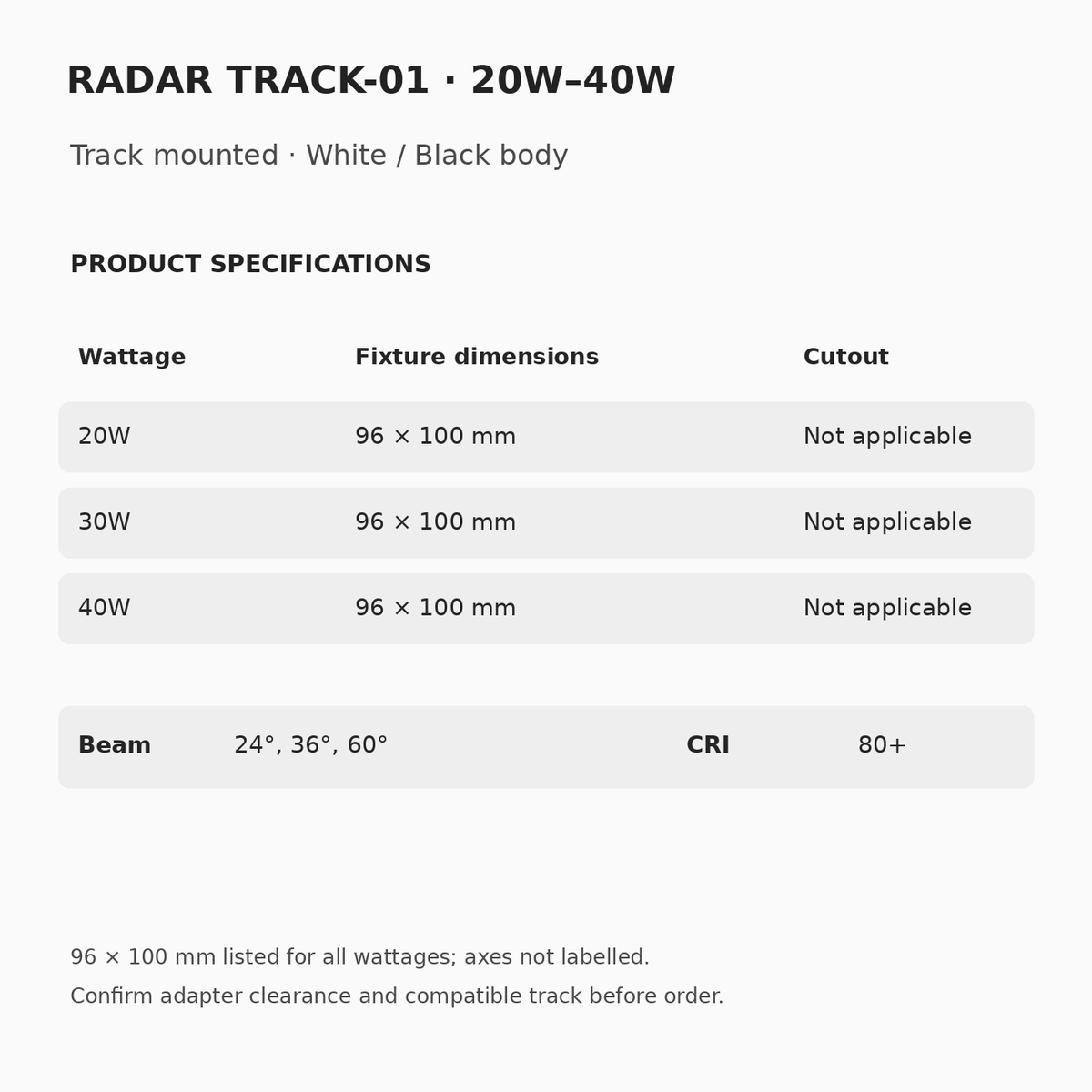

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 20W | 96 × 100 mm | Not applicable |
| 30W | 96 × 100 mm | Not applicable |
| 40W | 96 × 100 mm | Not applicable |
Beam options: 24°, 36°, 60°. CRI: 80+. These specifications apply to every listed wattage.
Track mounting; no recessed ceiling cutout applies. The listed dimensions are 96 × 100 mm for every wattage. Their axes and whether they include the adapter are not identified, so they must not be treated as a confirmed overall width or installed drop. Confirm track compatibility and installation clearance before ordering. Confirm driver accommodation and installation clearance with your installer.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

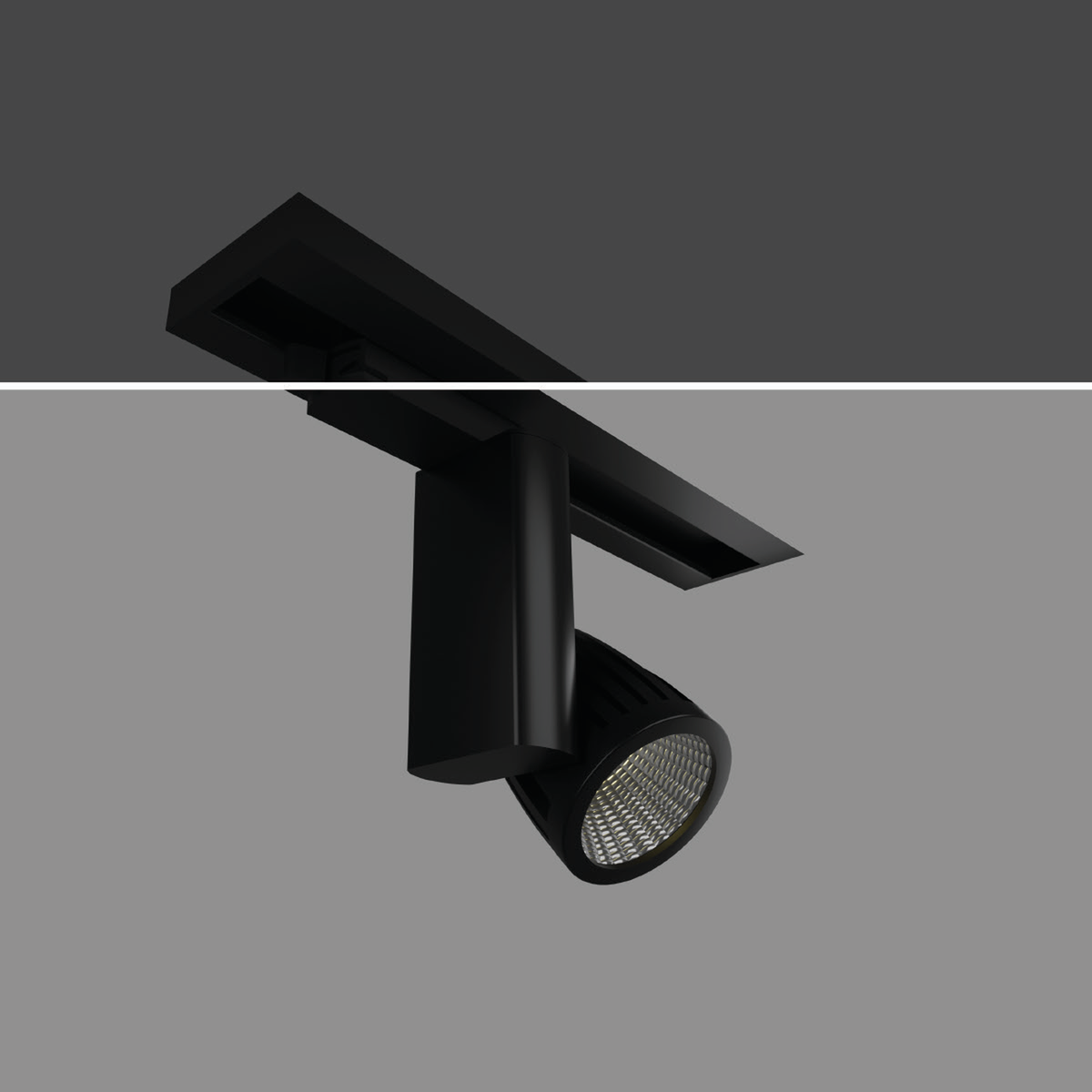

The original black-body image is a RADAR TRACK-01 family reference without an identified wattage. It is not assigned to individual variants. A white-body photograph is unavailable. The rail shown is a demonstration mounting reference and is not confirmed as included in the price.
Light colour and control
- Fixed white: With a True LED driver: 20W is offered in 3000K or 6000K; 30W and 40W are offered in 3000K, 4000K or 6000K. The 20W source does not confirm 4000K, so it is not offered.
- CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 20W, 30W, 40W.
- Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 20W, 30W, 40W.
- DALI DT6: Fixed white with a True DT6 driver. For 20W, choose 3000K or 6000K. For 30W, choose 3000K, 4000K or 6000K. No True DT6 configuration is offered for 40W.
- DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 20W, 30W.
DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.
Configuration prices excluding GST
20W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹3,569.50 |
| CCT-RF remote | ₹5,887.20 |
| Alexa/Tuya smart | ₹6,094.00 |
| DALI / True DT6 | ₹6,167.70 |
| DALI Tunable / True DT8 | ₹8,268.70 |
30W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹4,174.50 |
| CCT-RF remote | ₹6,492.20 |
| Alexa/Tuya smart | ₹6,699.00 |
| DALI / True DT6 | ₹6,772.70 |
| DALI Tunable / True DT8 | ₹9,031.00 |
40W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹5,049.00 |
| CCT-RF remote | ₹9,603.00 |
| Alexa/Tuya smart | ₹9,603.00 |
| DALI / True DT6 | Not offered |
| DALI Tunable / True DT8 | Not offered |
Prices apply to the listed body finishes and beam angles. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers one selected light and its corresponding driver/control configuration. Rail, connectors and separate control accessories are not confirmed as included; confirm requirements and track compatibility before ordering. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Check the listed fitting dimensions, track compatibility and wiring route with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
