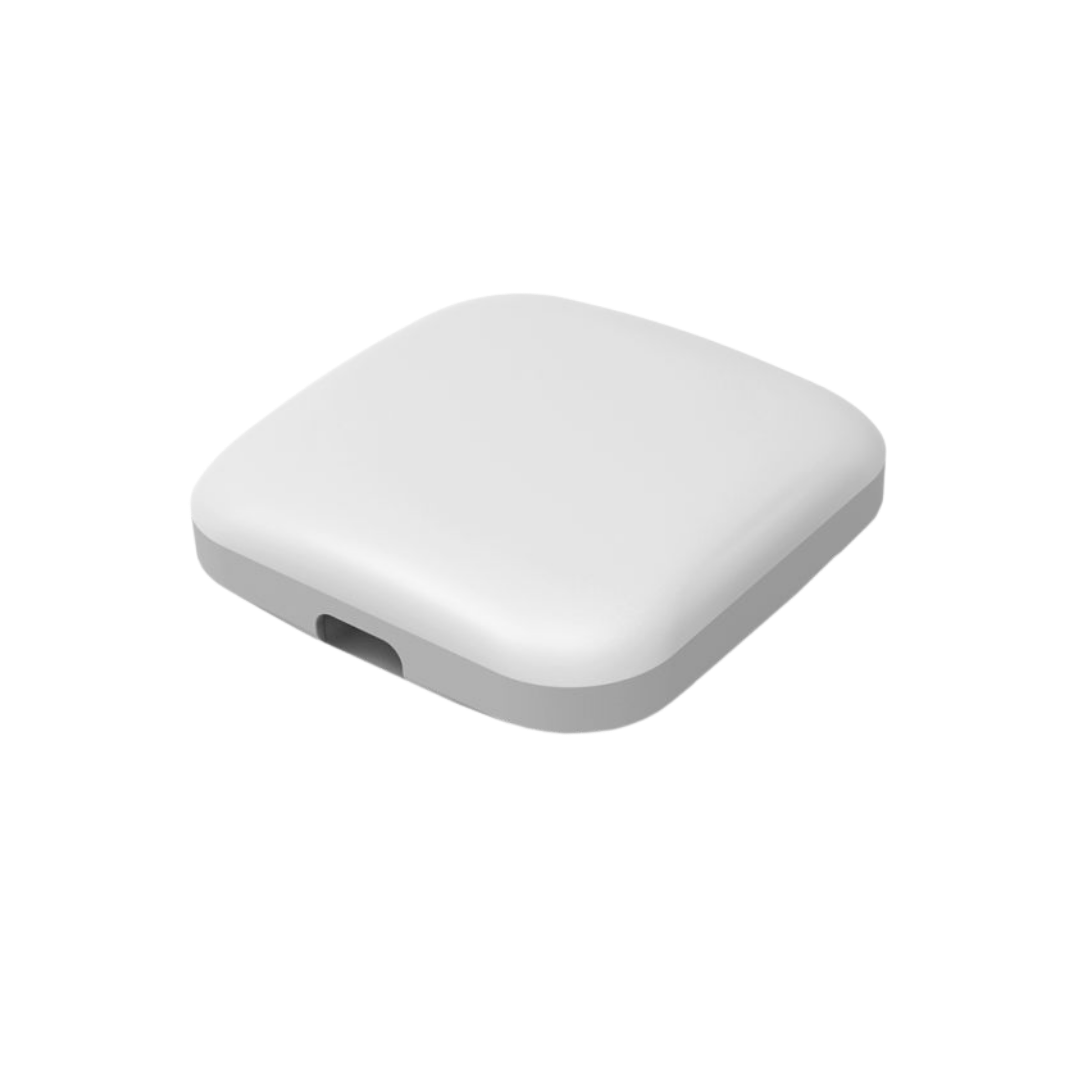

Rayrun MTB10 Casambi to Matter Bridge
Tax excluded. Shipping calculated at checkout
Rayrun MTB10 Casambi to Matter Bridge
The Rayrun MTB10 is a compact smart-lighting bridge that connects a Casambi Bluetooth lighting network to Matter-compatible smart-home ecosystems. It automatically maps supported Casambi devices into Matter so they can be controlled from compatible platforms such as Apple Home, Google Home and Amazon Alexa, alongside the Casambi App.
The bridge connects to Matter over 2.4GHz Wi-Fi while communicating with the Casambi network over Bluetooth Low Energy. It is powered from a standard 5V DC USB-C supply and is designed for simple retrofit or new-installation integration.
Key Features
- Bridges Casambi devices to the Matter smart-home ecosystem
- Compatible with Apple Home, Google Home and Amazon Alexa
- Automatic discovery and mapping of compatible Casambi devices
- Supports ON/OFF, dimming, tunable white, RGB and RGB+CCT devices
- Supports compatible Casambi presence and light sensors
- Up to 150 Casambi nodes can be mapped
- 2.4GHz Wi-Fi for Matter connectivity
- Bluetooth Low Energy for Casambi communication
- Compact USB-C powered design
Technical Specifications
| Brand | Rayrun |
| Model | MTB10 |
| Product Type | Casambi to Matter Bridge / Smart Home Gateway |
| Input Voltage | 5V DC via USB-C |
| Power Consumption | <1W |
| Matter Connection | Wi-Fi, 2.4GHz |
| Casambi Connection | Bluetooth Low Energy |
| RF Band | 2.4GHz ISM band |
| Wireless Transmit Power | <20dBm |
| Supported Casambi Devices | ON/OFF, dimmer, tunable white, RGB, RGB+CCT, presence sensors and light sensors |
| Maximum Nodes | Up to 150 |
| Compatible Ecosystems | Apple Home, Google Home, Amazon Alexa and other Matter-compatible platforms |
| Operating Temperature | -20°C to +50°C |
| Dimensions | 65 × 65 × 20 mm |
| Net Weight | 29 g |
Commissioning Notes
The MTB10 is added to the Casambi network as a gateway. Compatible Casambi devices are then exposed to Matter and can be added to the chosen smart-home ecosystem. A 2.4GHz Wi-Fi network and a Matter-compatible controller or hub are required.
Device names, groups and scenes created in Casambi are not transferred automatically to the Matter ecosystem and should be recreated in the target smart-home app. Battery-powered Casambi devices are not imported into Matter.
