RECLINER 02 30W & 40W Recessed Spotlights

RECLINER 02 · 30W / 40W

RECLINER 02 is a recessed LED spotlight with a projecting circular head and a deep cellular optical insert. Choose 30W or 40W, a 24°, 36° or 60° beam, and a white or black body. Fixed-white, RF tunable-white and Alexa/Tuya smart configurations are offered for both wattages; True DALI options are available for 30W.

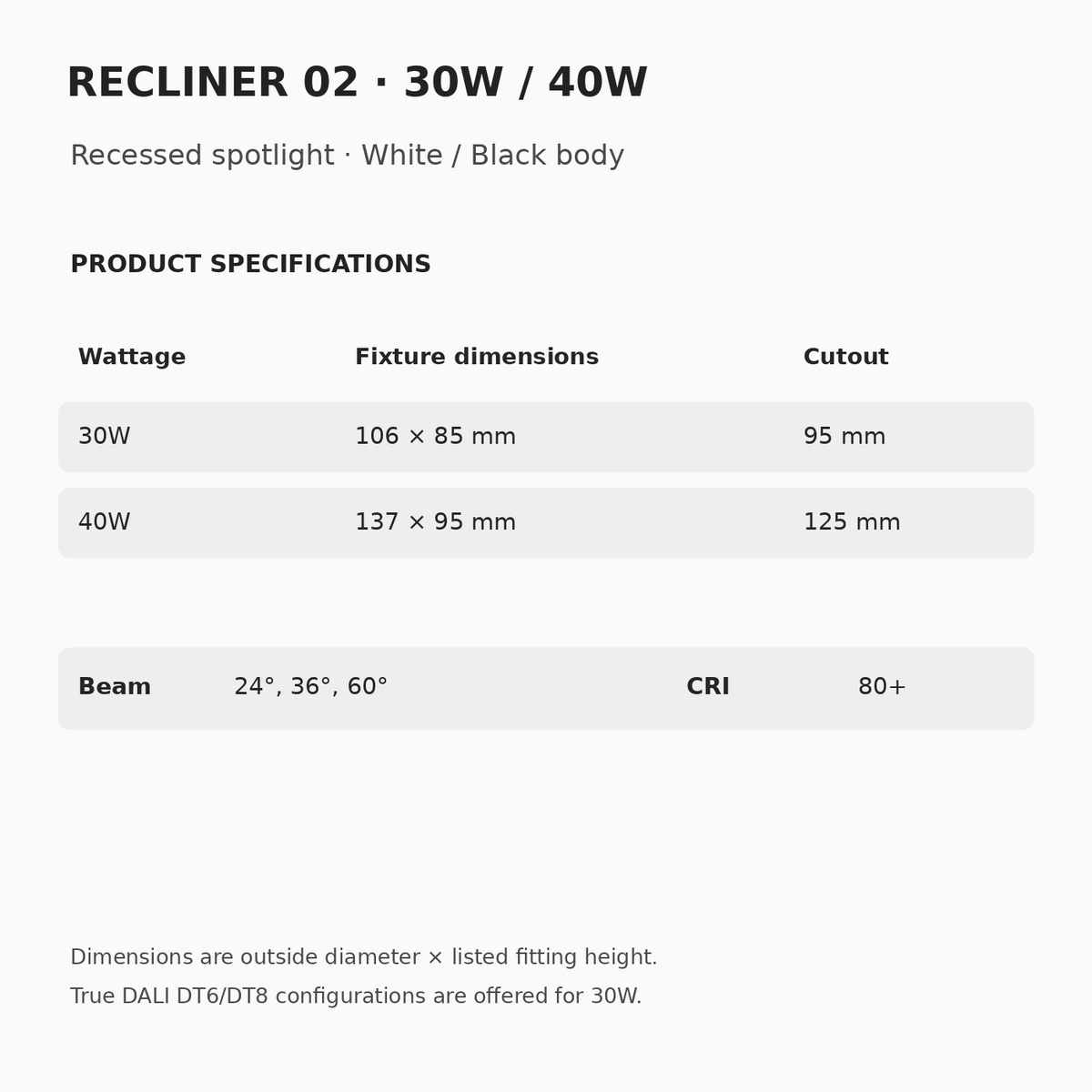

Product specifications

Beam options: 24°, 36°, 60°. CRI: 80+. These specifications apply to every listed wattage.

Dimensions are outside diameter × listed fitting height. The 30W fitting requires a 95 mm ceiling cutout; the 40W fitting requires a 125 mm cutout. Allow additional clearance for the projecting head and concealed fitting before installation. Allow separate space for the selected driver, wiring and installation clearance.

Body and reflector finish

The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

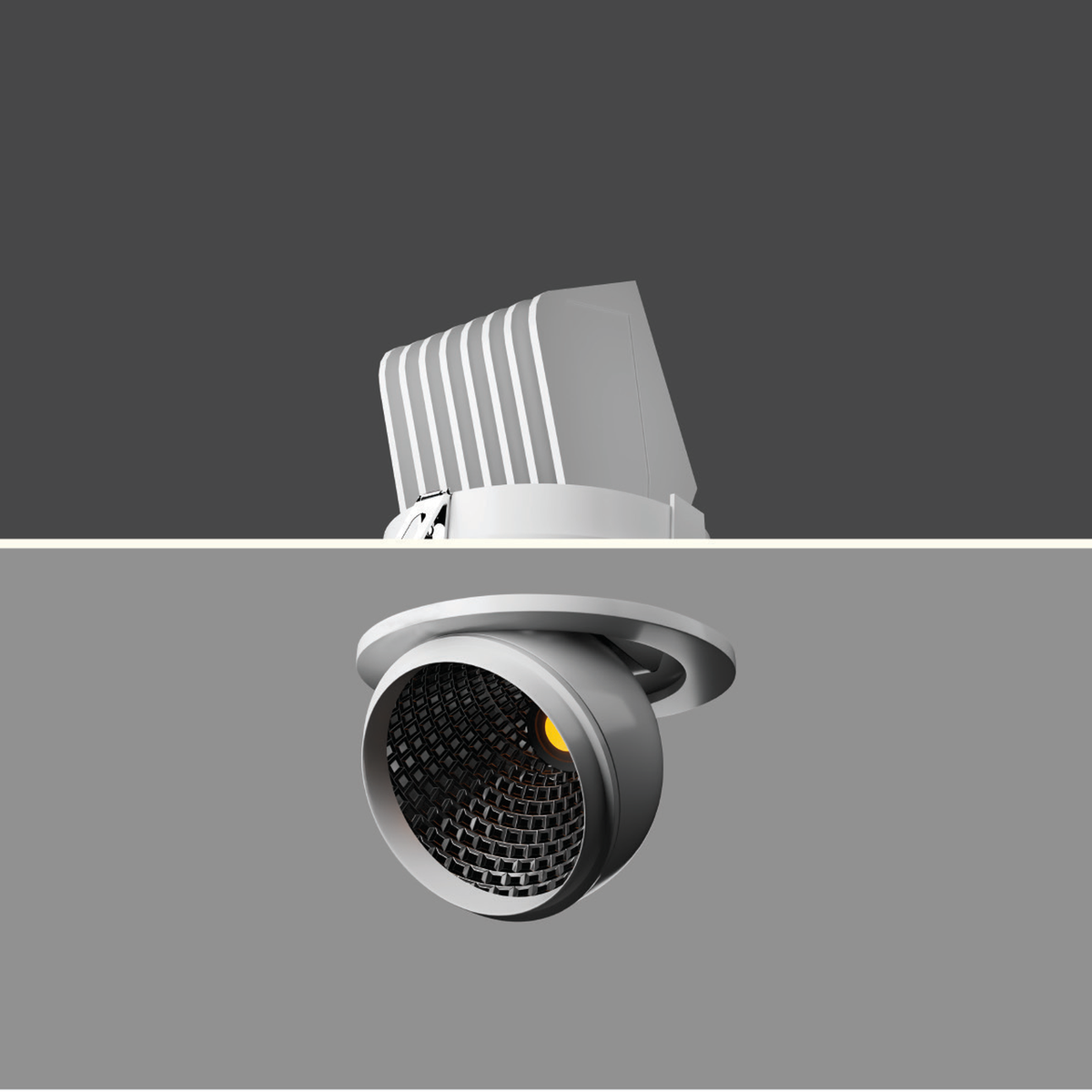

The white-body installation image is a RECLINER 02 family reference without a stated wattage. It does not establish the exact size of each option. A black-body image is unavailable, so the gallery image does not show the selected black finish.

Light colour and control

• Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 30W, 40W.
• CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 30W, 40W.
• Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 30W, 40W.
• DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 30W.
• DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 30W.

DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.

Configuration prices excluding GST

30W

40W

Prices apply to the listed body finishes and beam angles. Unconfirmed configurations are not offered as purchasable variants.

What is included

The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.

Before you order

GST is additional. Check the selected wattage’s ceiling cutout, fitting dimensions and available ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
