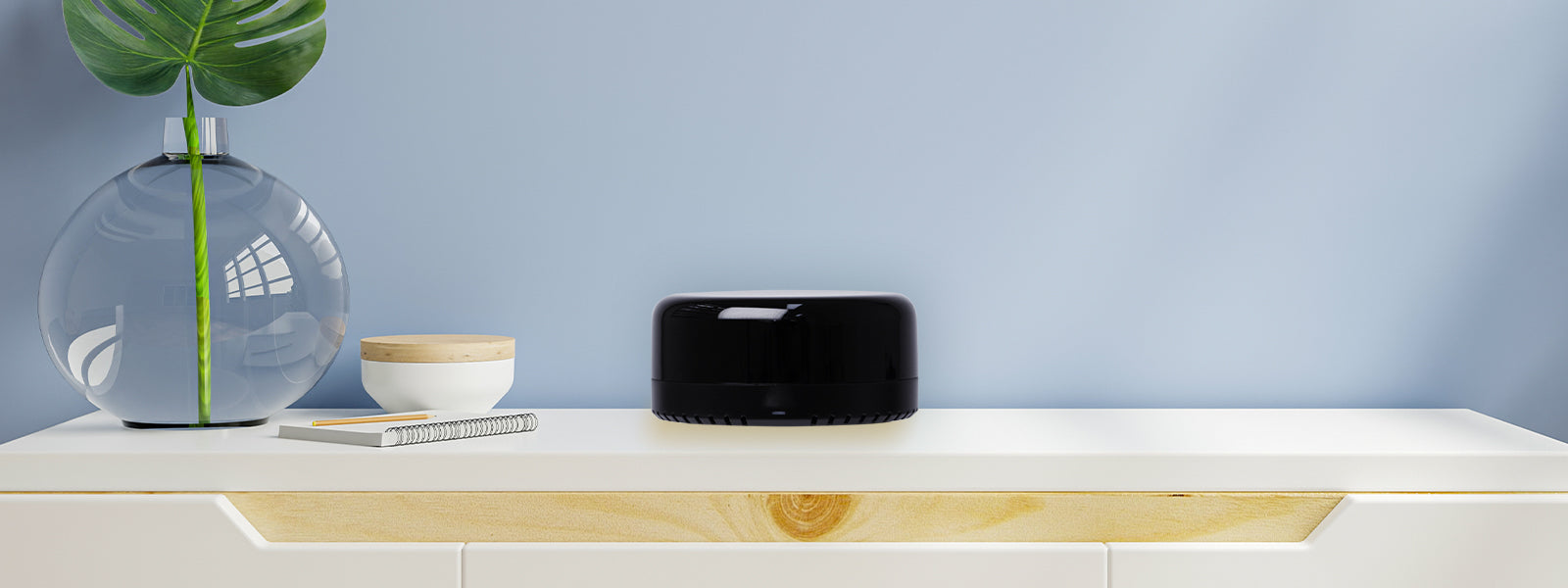

Remotec BXT-130 Casambi IR Blaster
Tax excluded. Shipping calculated at checkout
Remotec BXT-130 Casambi IR Blaster
The Remotec BXT-130 is a Casambi-enabled infrared blaster that brings conventional IR-controlled appliances into a Casambi Bluetooth mesh network. It can learn commands from existing infrared remote controls and reproduce those commands when triggered from Casambi.
It is suitable for controlling infrared-equipped devices such as televisions, projectors, AV equipment, wall-mounted air conditioners, fans and other compatible IR appliances from the same Casambi system used for lighting control.
Key Features
- Casambi Bluetooth mesh compatible
- Supports up to 8 control channels / functions
- Configurable combinations of toggle and push-button controls through Casambi profiles
- Infrared learning with 16 default learning locations
- Supports AC, AV, fans, lighting and other infrared-controlled appliances
- Wide-angle infrared coverage with 7 IR emitters
- IR learning frequency support up to 455 kHz
- IR operating distance up to 15 m
- RF operating distance up to 50 m
- Can be incorporated into compatible Casambi scenes and automations
- Compact Micro-USB powered design
Technical Specifications
| Brand | Remotec |
| Model | BXT-130 |
| Reference / SKU | BW8455UN-0001 |
| Product Type | Casambi IR Blaster / Bluetooth to IR Controller |
| Network | Casambi Bluetooth Mesh |
| Control Capacity | Up to 8 channels / functions |
| IR Learning | Up to 455 kHz; 16 default learning locations |
| IR Emitters | 7 |
| IR Coverage | Wide-angle / omnidirectional room coverage; direct line of sight to the controlled appliance is recommended |
| IR Operating Distance | Up to 15 m |
| RF Operating Distance | Up to 50 m |
| Power Supply | 5V DC via Micro-USB |
| Dimensions | Ø80 × 40 mm |
| Typical Applications | TVs, projectors, AV equipment, split / wall-mounted AC units, fans and other IR-controlled devices |
Commissioning Notes
The BXT-130 is paired to the Casambi network from the Casambi App. Its profile can be selected to provide different combinations of toggle and push-button controls. The default profile uses 8 toggle buttons.
To teach a command, place the appliance's original infrared remote close to the BXT-130 during learning and store the required IR command in the appropriate learning location. Toggle controls can be used for separate ON and OFF commands. When scene control is required, a toggle-button profile should be used because push buttons cannot be configured as Casambi scene controls.
The IR blaster should be positioned where it has a clear line of sight to the appliances it controls.
