SHAFT 6W–12W Multi-Aperture Recessed Downlight
Tax excluded. Shipping calculated at checkout
SHAFT · 6W / 12W
SHAFT is a round recessed LED downlight with a multi-aperture optical arrangement, a 36° beam and CRI 80+. Choose 6W or 12W, a white or black body, and fixed 3000K, 4000K or 6000K light with a True LED driver or True DALI DT 6 driver.

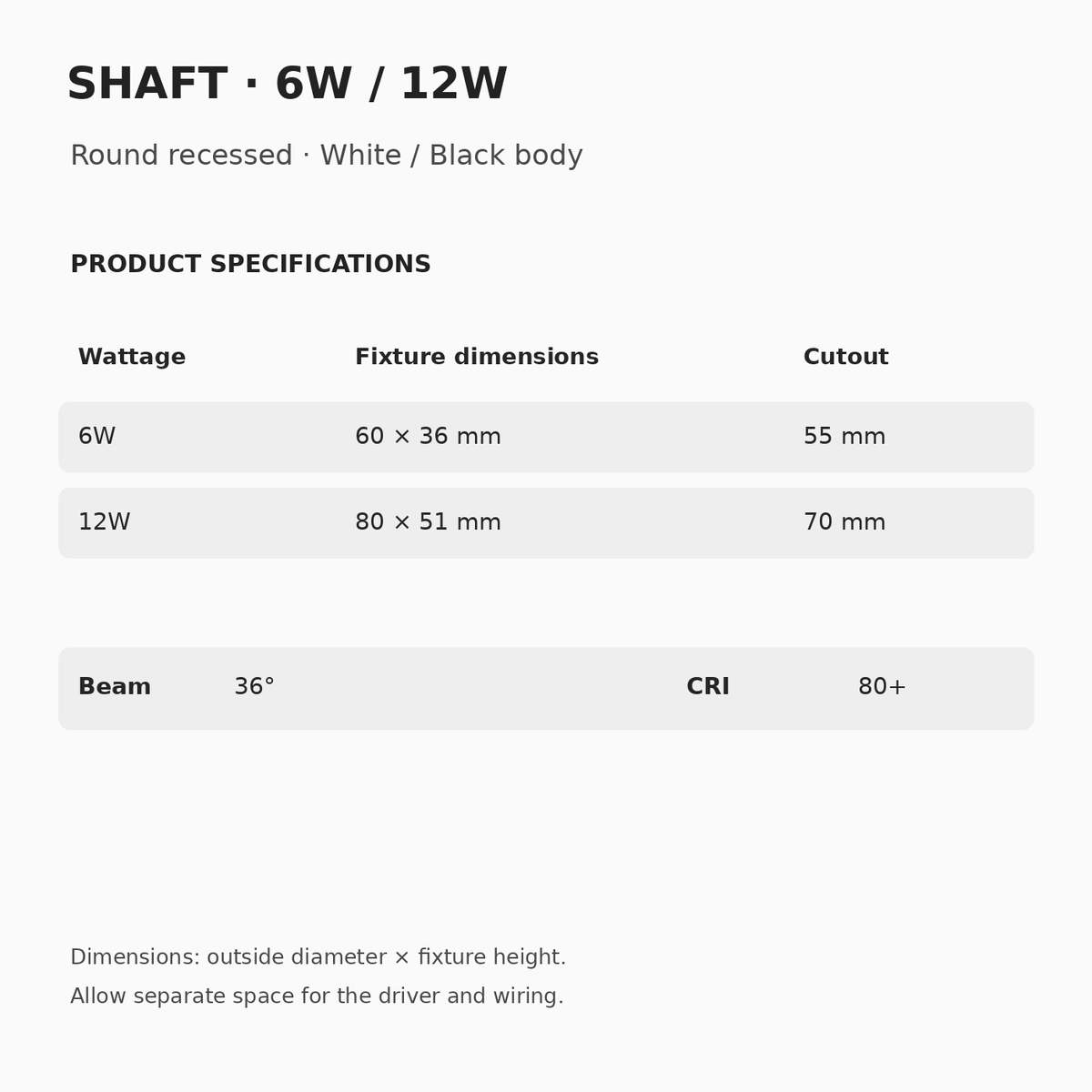

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 6W | 60 × 36 mm | 55 mm |
| 12W | 80 × 51 mm | 70 mm |
Beam options: 36°. CRI: 80+. These specifications apply to every listed wattage.
The listed outside diameter × fixture height is 60 × 36 mm for 6W and 80 × 51 mm for 12W. Matching ceiling cutouts are 55 mm and 70 mm. Confirm the selected mounting template before cutting. Allow separate space for the selected driver, wiring and installation clearance.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

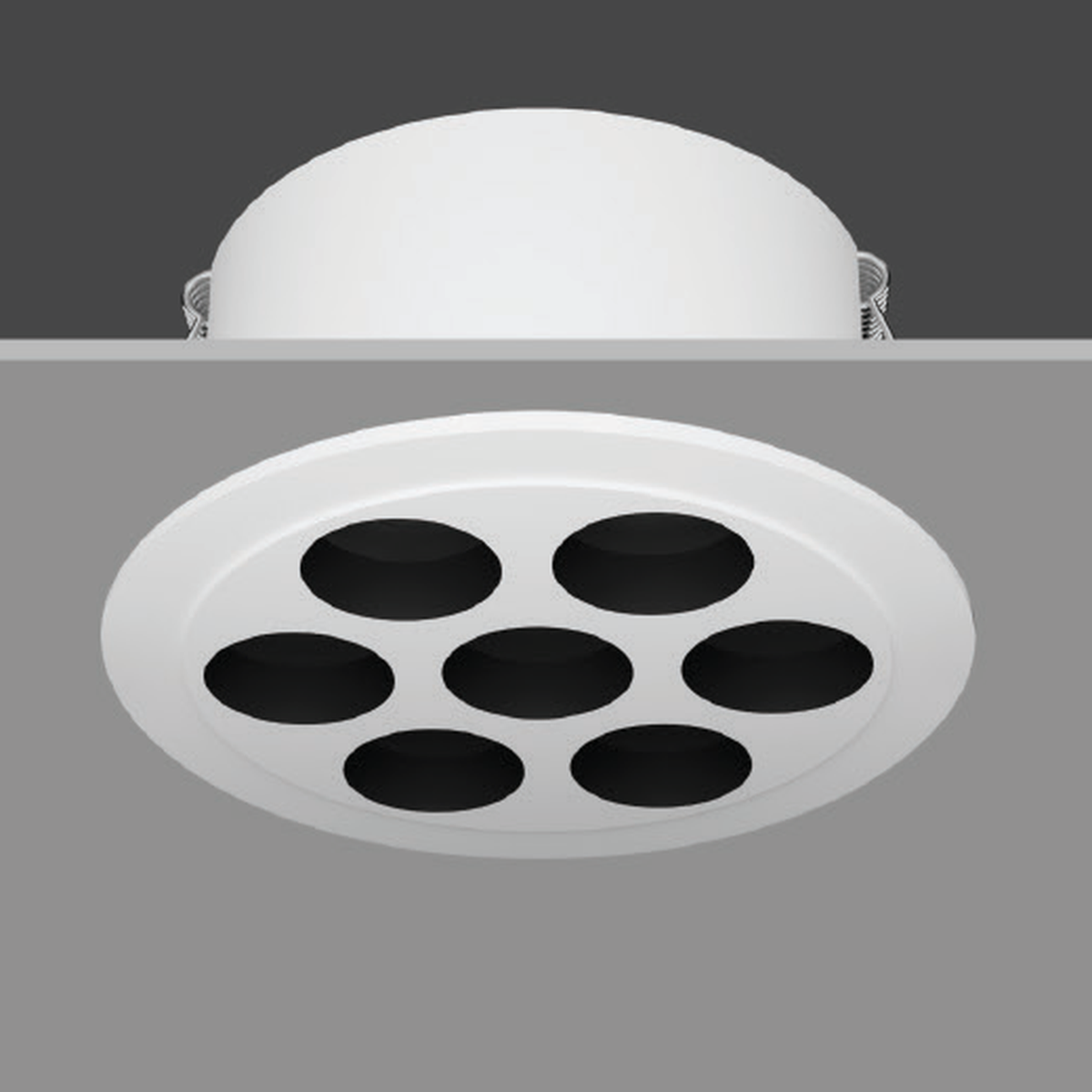

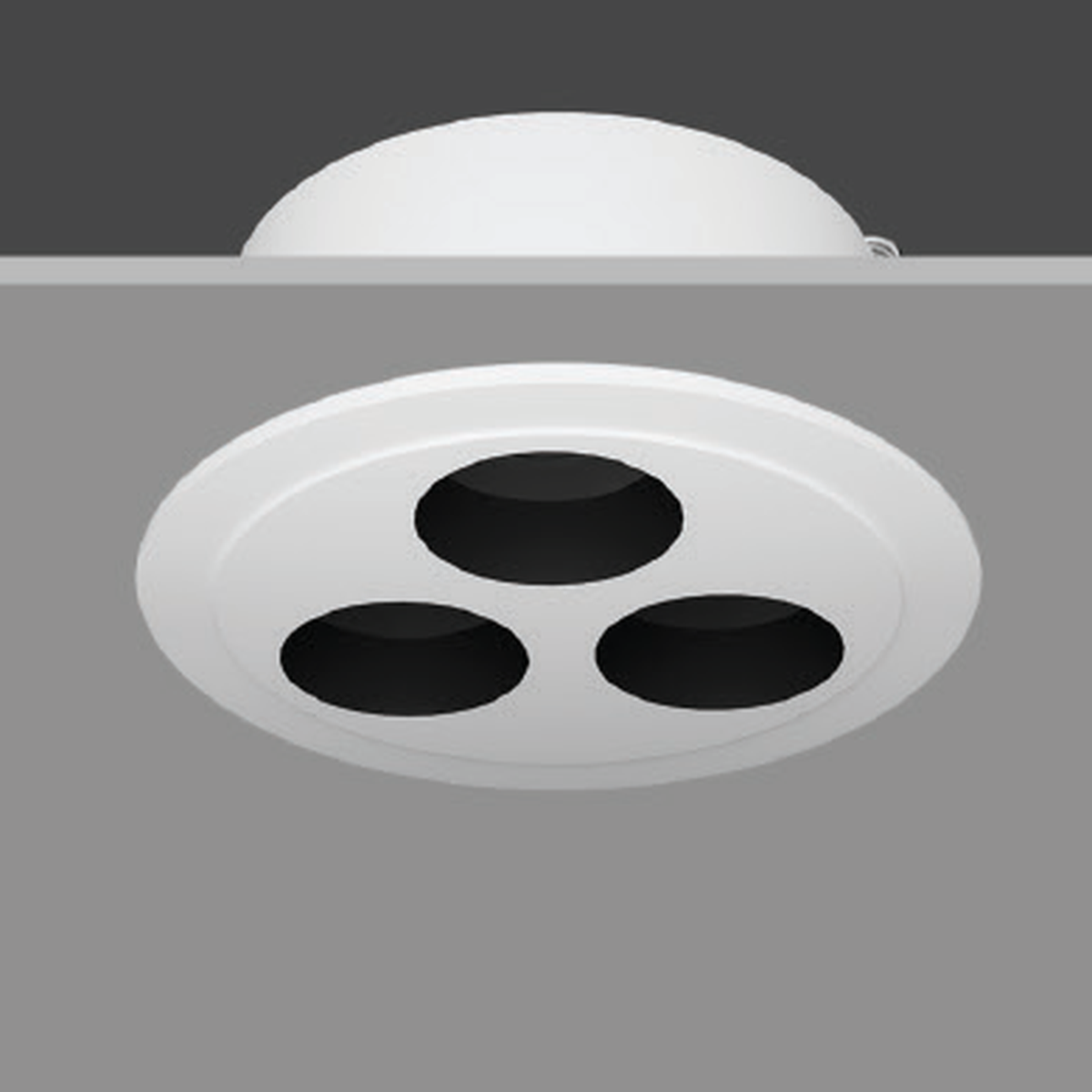

The original catalogue identifies separate 6W and 12W white-body photographs. Each photograph is assigned only to the matching white-body wattage. Black-body photographs are unavailable; the gallery does not show the selected black finish.
Light colour and control
- Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 6W, 12W.
- DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 6W, 12W.
DALI DT6 requires a compatible DALI control system. RF, smart and DALI DT8 configurations are not offered for this model. Confirm controller and accessory requirements before ordering.
Configuration prices excluding GST
6W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹2,035.00 |
| CCT-RF remote | Not offered |
| Alexa/Tuya smart | Not offered |
| DALI / True DT6 | ₹4,314.20 |
| DALI Tunable / True DT8 | Not offered |
12W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹3,069.00 |
| CCT-RF remote | Not offered |
| Alexa/Tuya smart | Not offered |
| DALI / True DT6 | ₹5,307.50 |
| DALI Tunable / True DT8 | Not offered |
Prices apply to the listed body finishes. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Check the selected wattage’s ceiling cutout, fitting dimensions and available ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
Choose options
