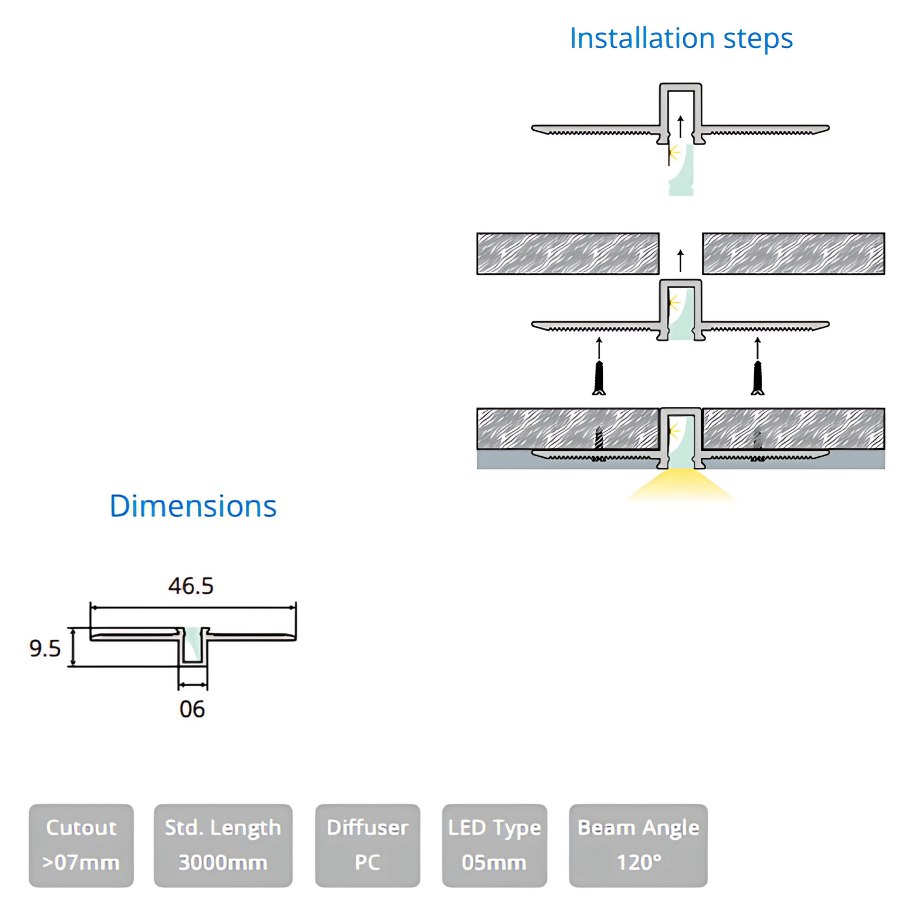

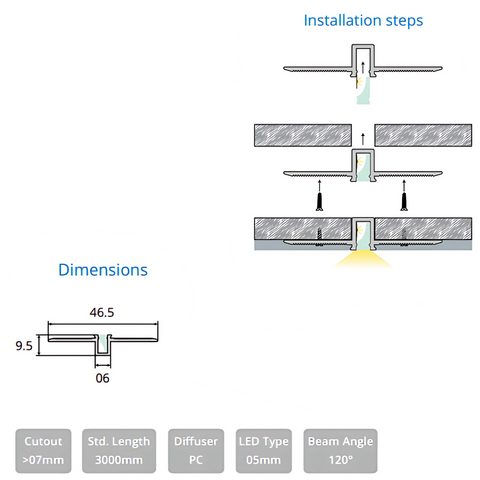

Installation Steps: The top section clearly illustrates a recessed installation method. The profile is designed to be embedded within a surface, likely plasterboard. It features "wings" or flanges that are plastered over, ensuring a seamless, flush finish where only the central light aperture is visible. The diagram shows it being inserted into a cutout, secured with screws, and then the surrounding material (e.g., plaster) finishing flush with the profile's edges.
Dimensions: A cross-sectional diagram provides the measurements: 9.5mm in overall height. The base (the part inserted into the cutout) is 6mm wide, while the total width including the plaster-in wings is 46.5mm. This wider flange is crucial for the seamless "plaster-in" effect.
Cutout Requirement: The "Cutout >07mm" specification indicates the minimum width of the slot needed for the main body of the profile.
Standard Length: It comes in a "Std. Length 3000mm" (3 meters).
Diffuser Type: It specifies "Diffuser PC" (Polycarbonate), indicating a durable and rigid material for light diffusion. This is a common choice for linear diffusers, providing good light transmission and impact resistance.
LED Type: Designed for "LED Type 05mm" (likely referring to the width or type of LED strip it accommodates).
Beam Angle: A "Beam Angle 120°" indicates a wide, general illumination, suitable for broad and uniform light distribution.
Accessories: No explicit accessory image is shown, but the design implies that the plaster-in wings are integral to its mounting and finishing.
Overall Impression:

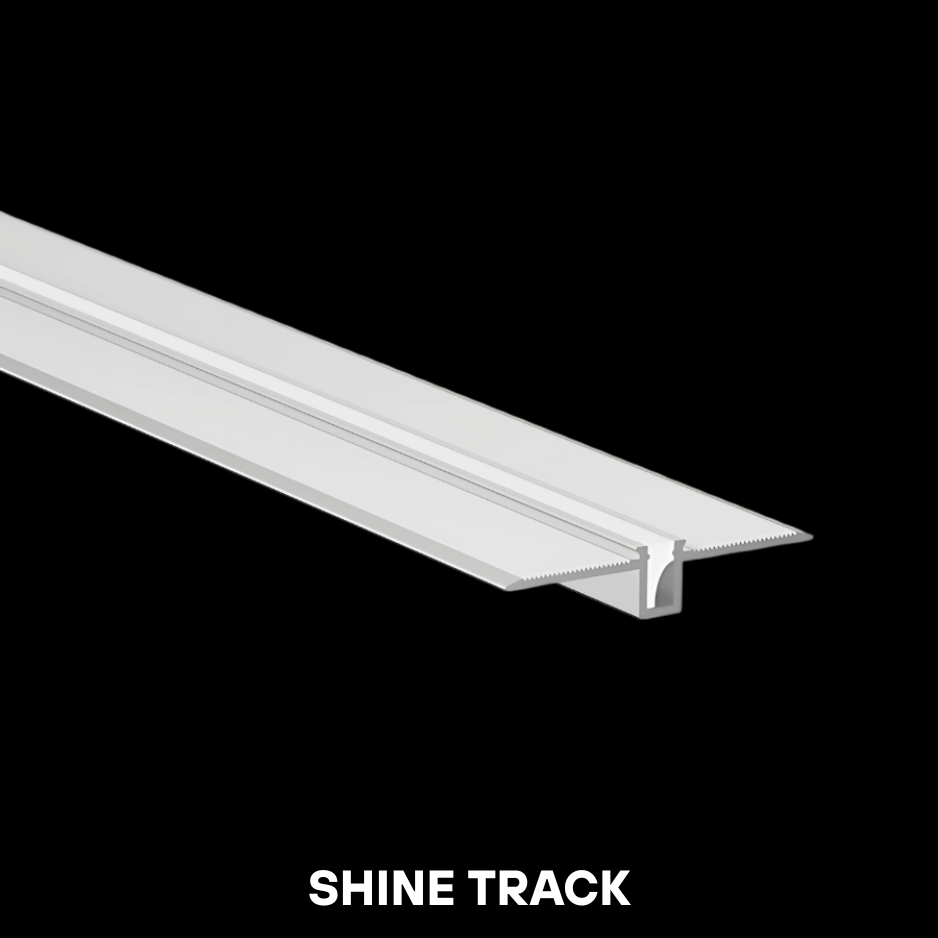

The "SHINE TRACK" is a sophisticated "plaster-in" or "trimless" recessed linear lighting profile. Its design, with broad flanges, allows for complete integration into drywall or similar surfaces, resulting in a perfectly flush finish where the light appears to emerge directly from the surface itself. This product is ideal for achieving a minimalist and architectural aesthetic in ceilings and walls, providing continuous lines of wide-angle illumination without any visible trim or bezel. It's a premium solution for clean, contemporary lighting designs.
