SHUTTER-02 20W & 30W LED Track Spotlights
Tax excluded. Shipping calculated at checkout
SHUTTER-02
SHUTTER-02 is an LED track spotlight offered in 20W and 30W, each with a 38° beam and CRI 80+. Choose white or black body finish with fixed-white, RF tunable white, Alexa/Tuya smart, True DALI DT6 or True DALI DT8 control.

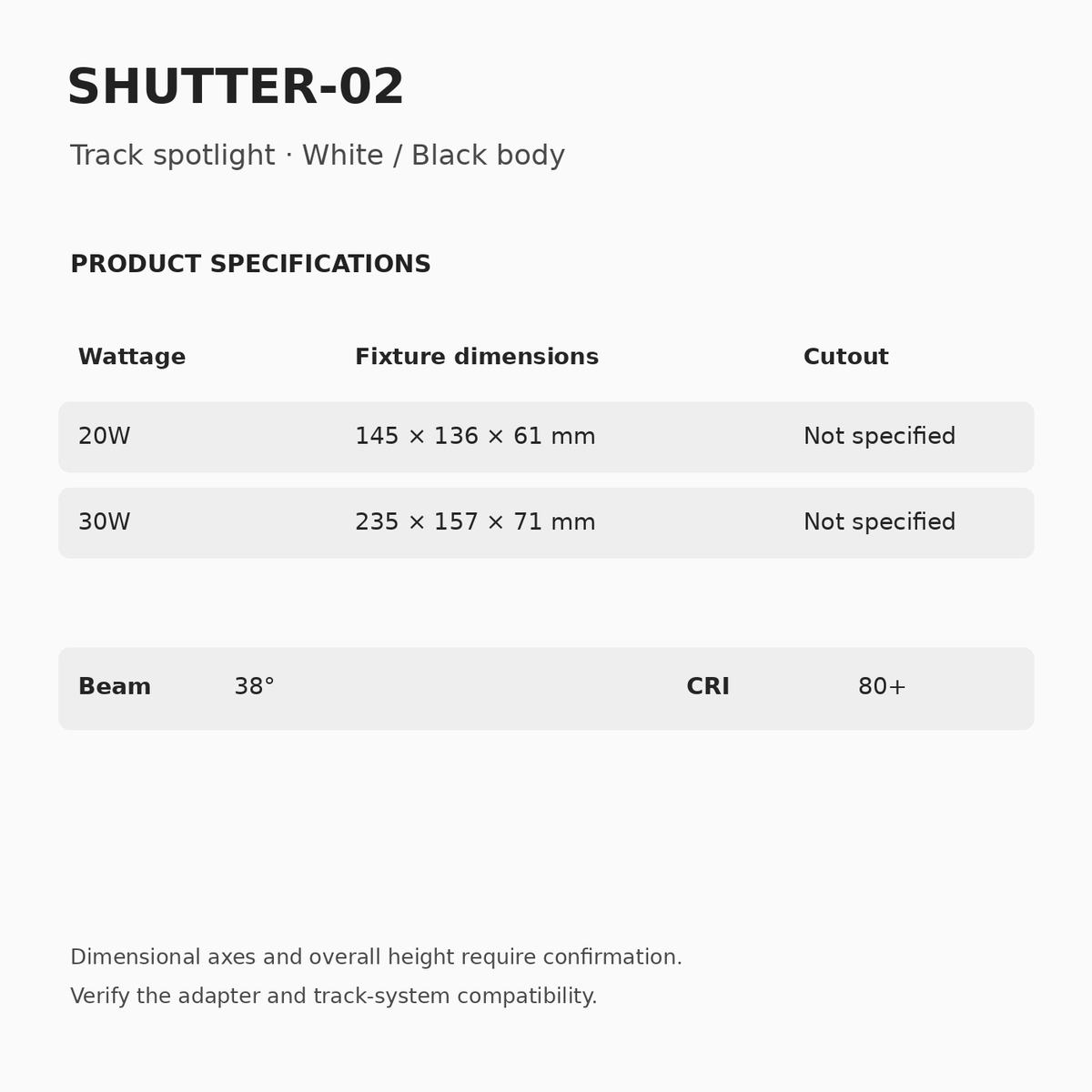

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 20W | 145 × 136 × 61 mm | Not specified |
| 30W | 235 × 157 × 71 mm | Not specified |
Beam options: 38°. CRI: 80+. These specifications apply to every listed wattage.
The 20W fitting is listed as 145 × 136 × 61 mm and the 30W fitting as 235 × 157 × 71 mm. The individual dimensional axes are not identified, so overall height and outside diameter/width need confirmation. Confirm the adapter, track-system and electrical compatibility before ordering.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

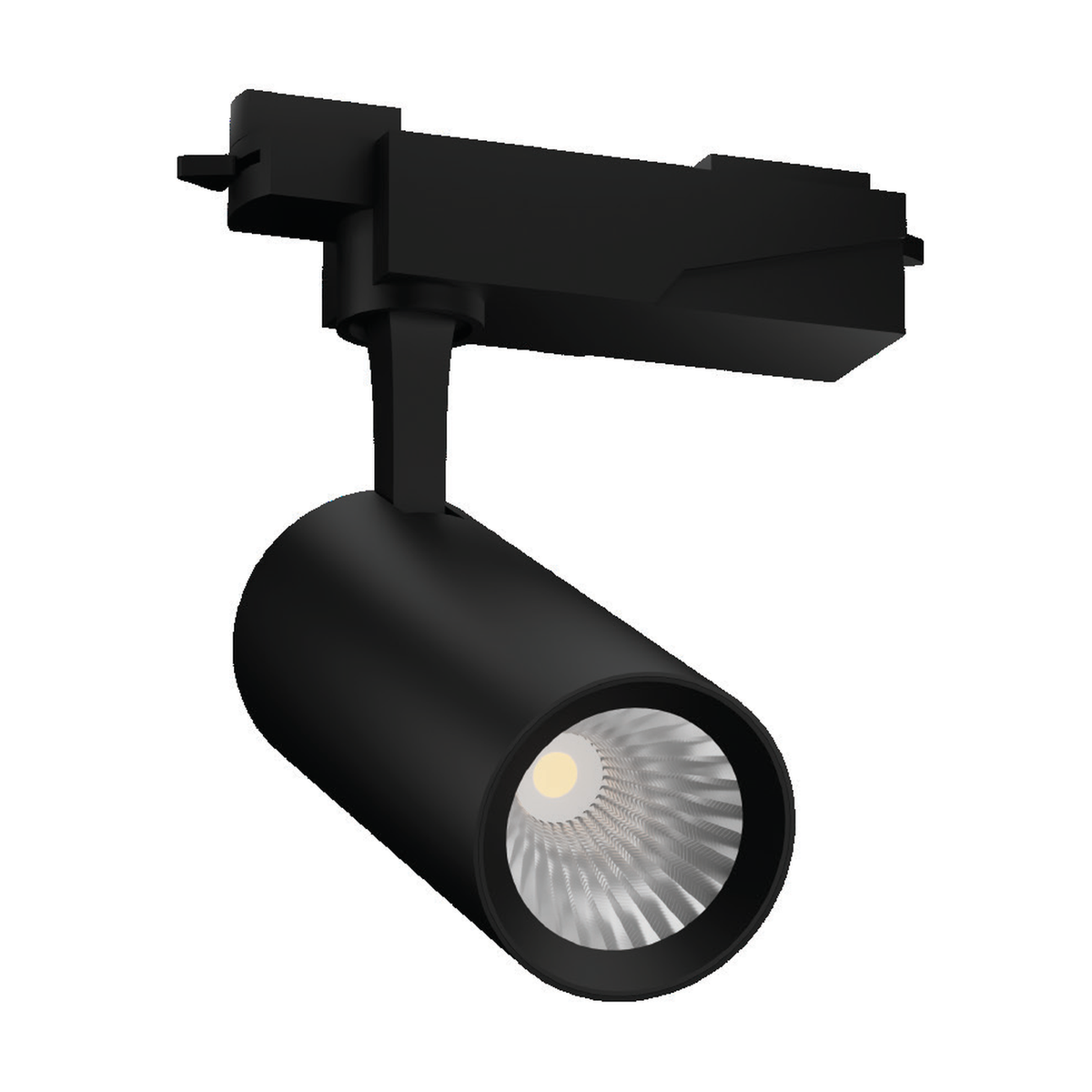

The black-body product image is a SHUTTER-02 family reference without a stated wattage. It does not establish the exact size of each option. A white-body image is unavailable, so the gallery image does not show the selected white finish.
Light colour and control
- Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 20W, 30W.
- CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 20W, 30W.
- Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 20W, 30W.
- DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 20W, 30W.
- DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 20W, 30W.
DALI configurations require a compatible DALI track and control system. Confirm controller and accessory requirements for your installation.
Configuration prices excluding GST
20W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹2,750.00 |
| CCT-RF remote | ₹5,067.70 |
| Alexa/Tuya smart | ₹5,274.50 |
| DALI / True DT6 | ₹5,348.20 |
| DALI Tunable / True DT8 | ₹7,449.20 |
30W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹3,168.00 |
| CCT-RF remote | ₹5,485.70 |
| Alexa/Tuya smart | ₹5,692.50 |
| DALI / True DT6 | ₹5,766.20 |
| DALI Tunable / True DT8 | ₹8,024.50 |
Prices apply to the listed body finishes. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Check the selected wattage’s dimensions, mounting space and track-system compatibility with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
Choose options
