SLENDER-M 12W–20W Linear Recessed Spotlight

SLENDER-M · 12W / 20W

SLENDER-M is a linear recessed LED spotlight with a 36° beam, CRI 80+ and white or black body. Choose 12W or 20W and a supported fixed-white True-driver, RF tunable-white, Alexa/Tuya smart or True DALI configuration. Confirm movement and aiming requirements before ordering.

Product specifications

Beam options: 36°. CRI: 80+. These specifications apply to every listed wattage.

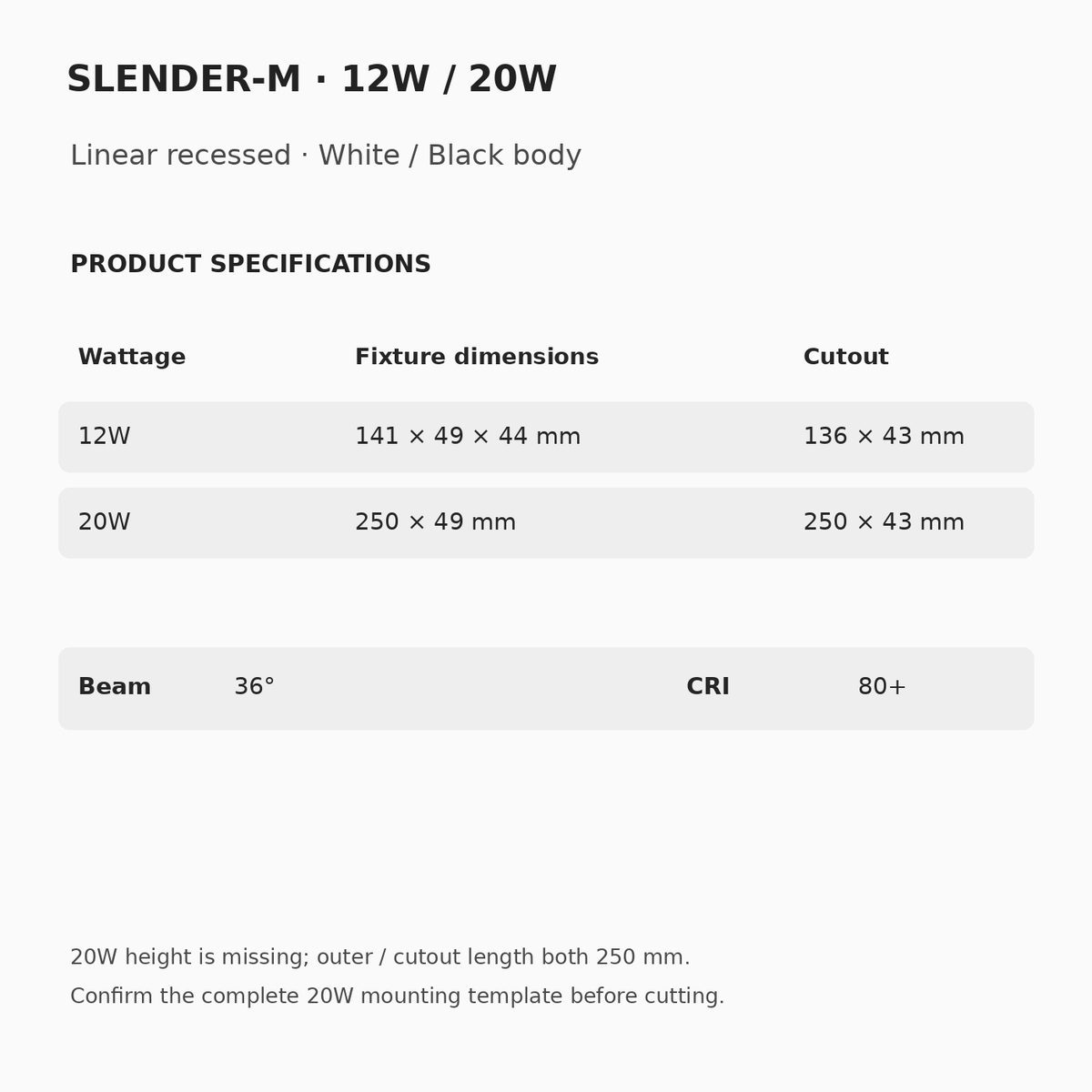

The 12W fixture is listed as 141 × 49 × 44 mm with a 136 × 43 mm ceiling cutout. For 20W, the source lists 250 × 49 mm and a 250 × 43 mm cutout, omitting height and repeating 250 mm for outer length and cutout length. Do not cut from the table alone: confirm the complete 20W mounting template and installation depth. Allow separate space for the selected driver, wiring and installation clearance.

Body and reflector finish

The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

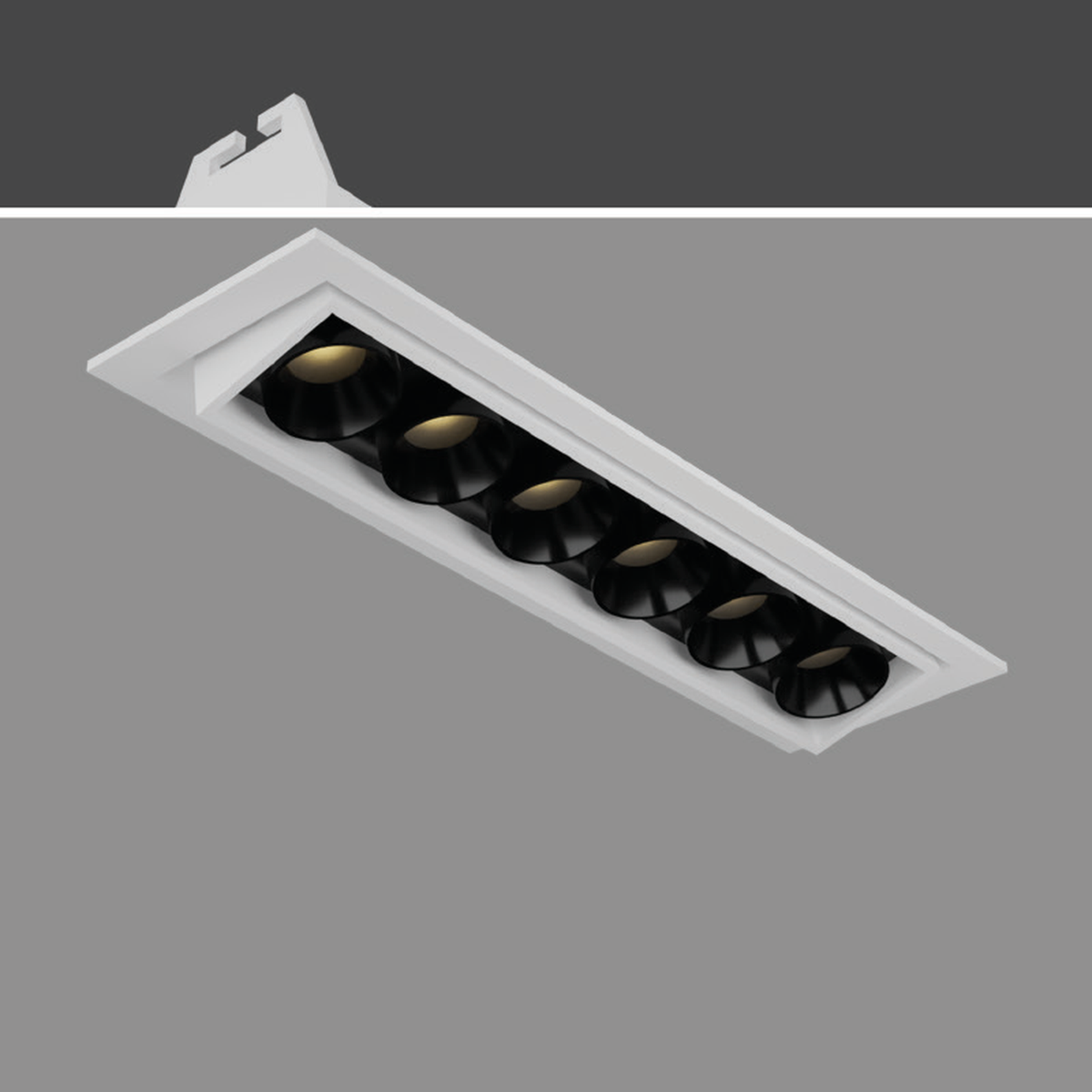

The original white-body photograph is a family reference; its wattage is not identified. It is not assigned to wattage or finish variants. Black-body photographs are unavailable.

Light colour and control

• Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 12W, 20W.
• CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 12W, 20W.
• Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 12W, 20W.
• DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 12W, 20W.
• DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 12W, 20W.

DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.

Configuration prices excluding GST

12W

20W

Prices apply to the listed body finishes. Unconfirmed configurations are not offered as purchasable variants.

What is included

The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.

Before you order

GST is additional. Confirm the complete 20W mounting template and depth before cutting; verify the selected wattage’s dimensions and ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
