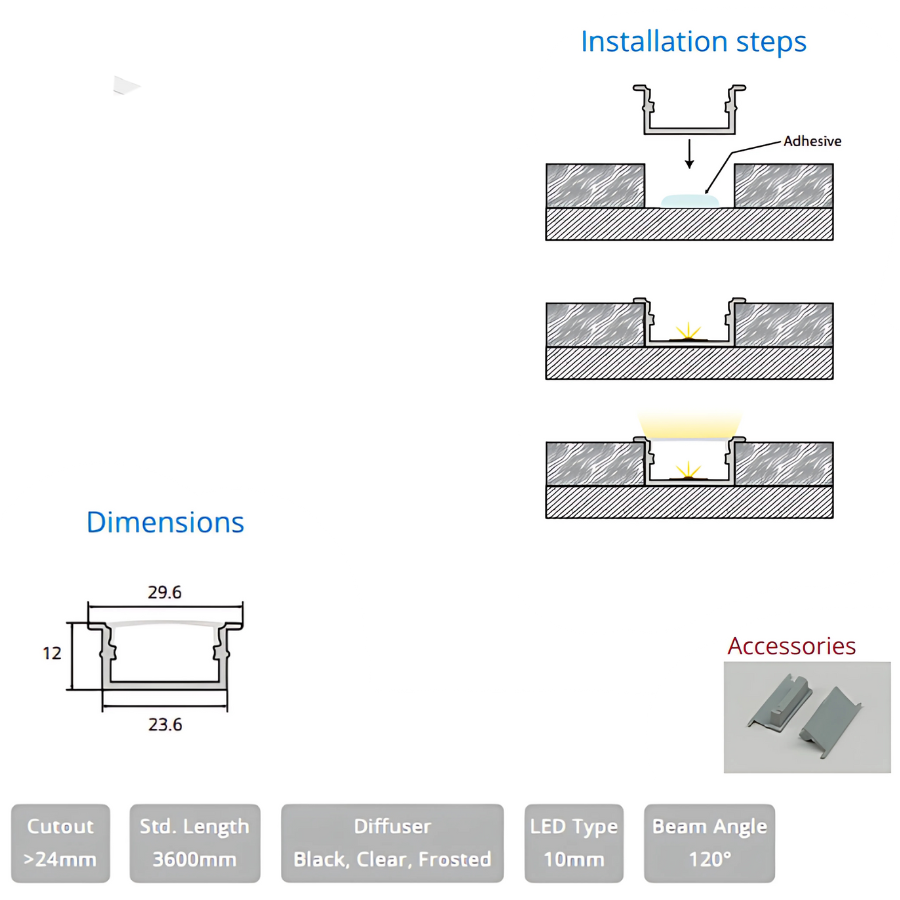

Installation Steps: The top section clearly illustrates a straightforward recessed installation process. The U-shaped profile, with a distinct top lip and a slightly broader base, is designed to be inserted into a pre-cut groove in a surface. The diagram shows it being secured using "Adhesive," suggesting a clean, trimless installation where the profile blends seamlessly with the surface. The final step shows the light emitting upwards, indicating a flush, integrated lighting solution.
Dimensions: A cross-sectional diagram provides the measurements: 12mm in height. The base width that slots into the cutout is 23.6mm, and the overall width of the top lip is 29.6mm. These dimensions indicate a relatively wide and shallow profile, suitable for a substantial light output.
Cutout Requirement: The "Cutout >24mm" specification confirms the required width for the recess, corresponding closely to the base width of the profile.
Standard Length: It comes in a "Std. Length 3600mm" (3.6 meters), which is a longer standard length than typical, allowing for fewer visible joints over extended runs and a more seamless appearance.
Diffuser Options: Available diffusers include "Black, Clear, Frosted," offering versatility in light diffusion and aesthetic.
LED Type: Designed for "LED Type 10mm" (likely referring to the width or type of LED strip it accommodates), which is a common size for brighter and more robust LED strips.
Beam Angle: A "Beam Angle 120°" indicates a wide, general illumination, suitable for broad and uniform light distribution.
Accessories: An image shows small clips, which are likely mounting clips for securing the profile within the cutout, potentially in conjunction with the adhesive.
Overall Impression:

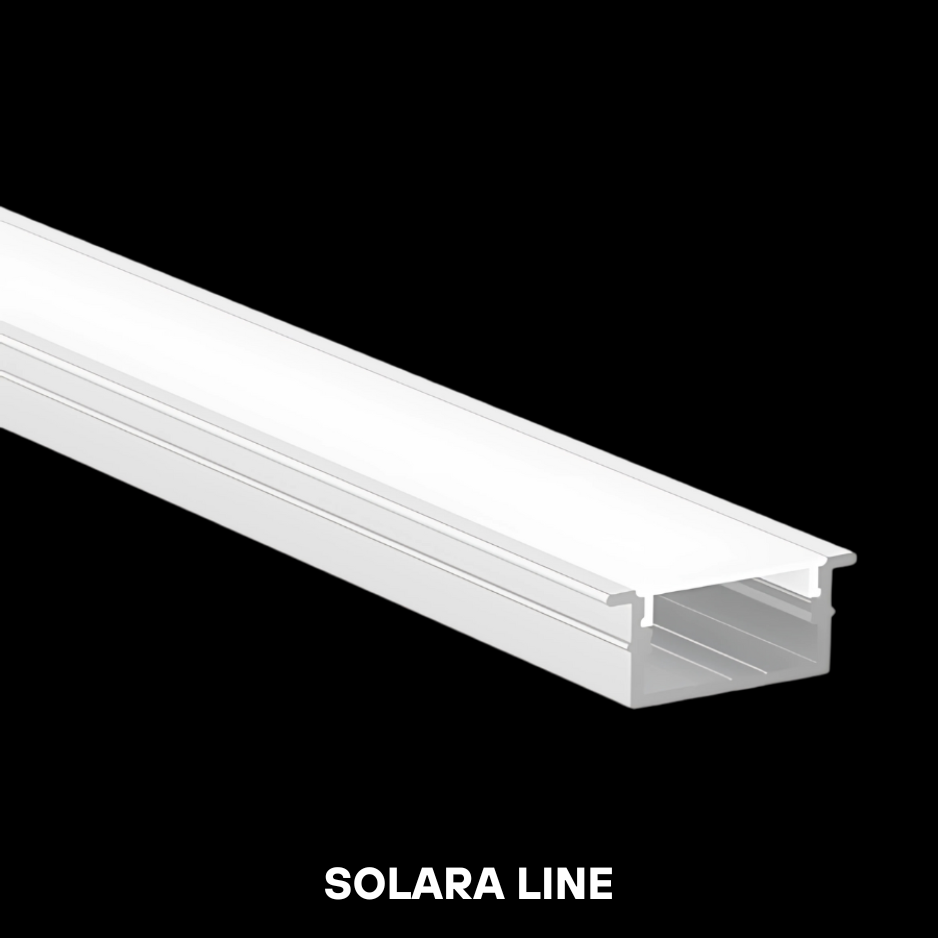

The "SOLAR LINE" profile is a robust and versatile recessed linear lighting solution. Its wider channel and ability to accommodate 10mm LED strips suggest it's designed for applications requiring significant and uniform light output. The installation method, indicating adhesive use, points towards a clean, trimless finish. With a longer standard length and multiple diffuser options, it is highly adaptable for creating continuous, seamless lines of wide-angle illumination in modern architectural and interior design settings, providing a bright, consistent "solar line" of light.
