VELOX-C/SF 7W–24W Spotlight
Tax excluded. Shipping calculated at checkout
VELOX-C/SF · 7W–24W
VELOX-C/SF is an LED spotlight family in 7W, 12W and 24W, with a 36° beam, CRI 80+ and white or black body. The source illustrates both flush-plate and surface-canopy mounting forms under one model; confirm the required mounting form and matching components before ordering.

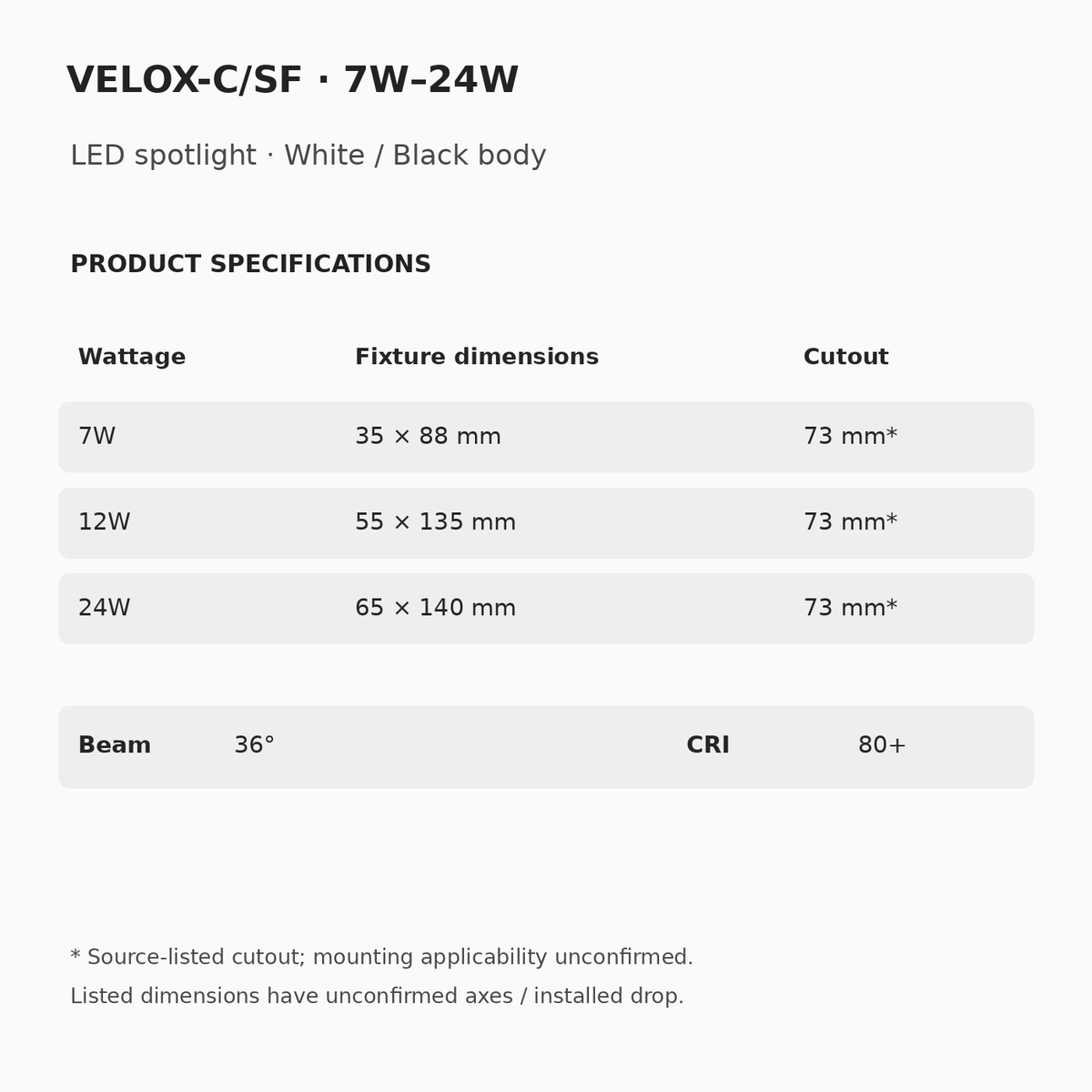

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 7W | 35 × 88 mm | 73 mm (verify) |
| 12W | 55 × 135 mm | 73 mm (verify) |
| 24W | 65 × 140 mm | 73 mm (verify) |
Beam options: 36°. CRI: 80+. These specifications apply to every listed wattage.
The listed dimensions are 35 × 88 mm for 7W, 55 × 135 mm for 12W, and 65 × 140 mm for 24W. The source gives a 73 mm cutout for all three wattages without distinguishing mounting form. Confirm the applicable mounting template and clearances before cutting. Dimensional axes and total installed drop are not confirmed. Allow separate space for the selected driver, wiring and installation clearance.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

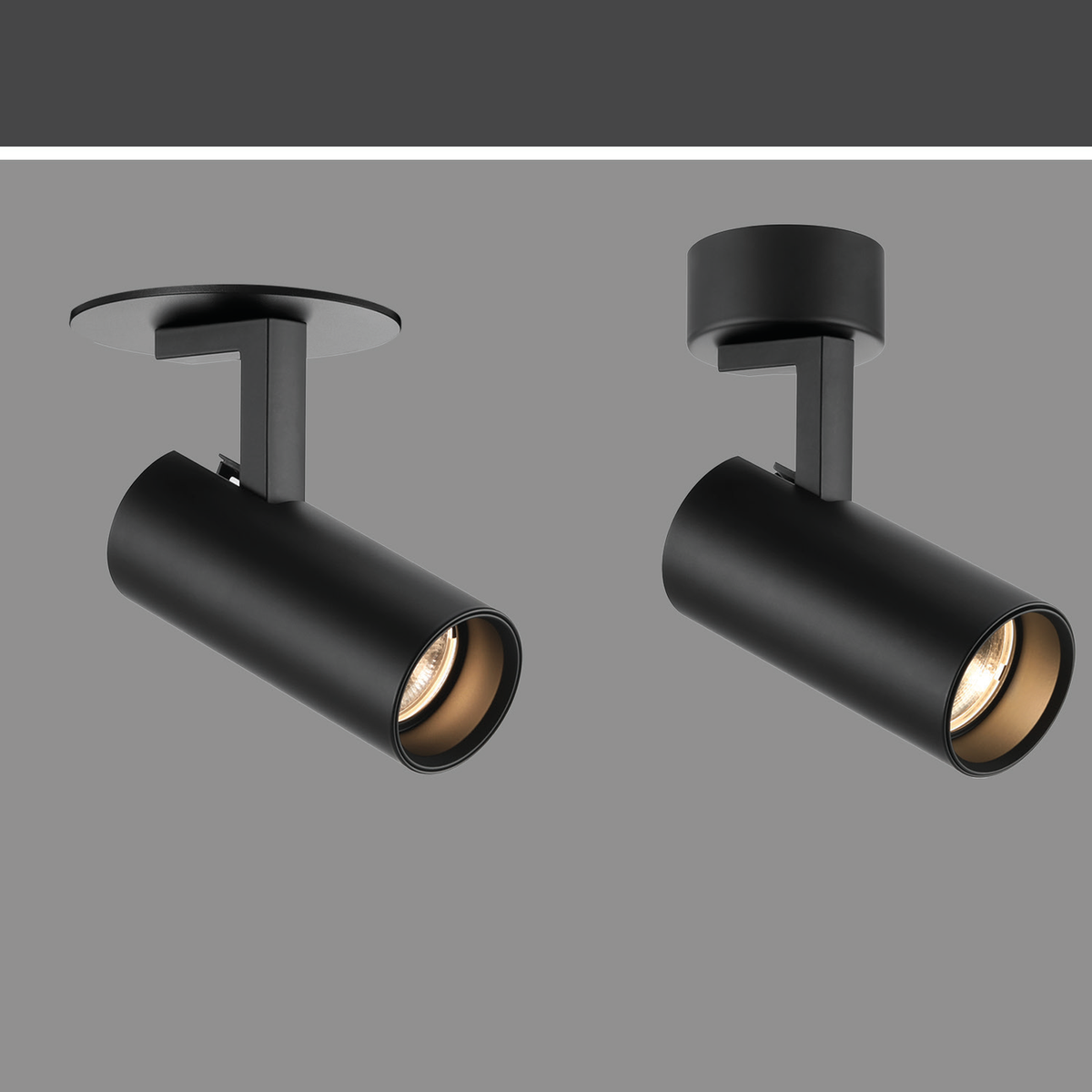

The original family image shows two black-body mounting forms. Neither pictured form is identified with a wattage, so the image is a family reference and is not assigned to wattage or finish variants. A white-body photograph is unavailable. Confirm the mounting form before ordering.
Light colour and control
- Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 7W, 12W, 24W.
- CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 7W, 12W.
- Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 7W, 12W.
- DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 7W, 12W, 24W.
- DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 7W, 12W.
DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.
Configuration prices excluding GST
7W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹3,542.00 |
| CCT-RF remote | ₹5,009.40 |
| Alexa/Tuya smart | ₹5,215.10 |
| DALI / True DT6 | ₹5,821.20 |
| DALI Tunable / True DT8 | ₹7,274.30 |
12W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹4,614.50 |
| CCT-RF remote | ₹6,041.20 |
| Alexa/Tuya smart | ₹6,246.90 |
| DALI / True DT6 | ₹6,853.00 |
| DALI Tunable / True DT8 | ₹8,456.80 |
24W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹8,008.00 |
| CCT-RF remote | Not offered |
| Alexa/Tuya smart | Not offered |
| DALI / True DT6 | ₹10,606.20 |
| DALI Tunable / True DT8 | Not offered |
Prices apply to the listed body finishes. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Confirm the required mounting form, its installation template and the listed dimensions with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
