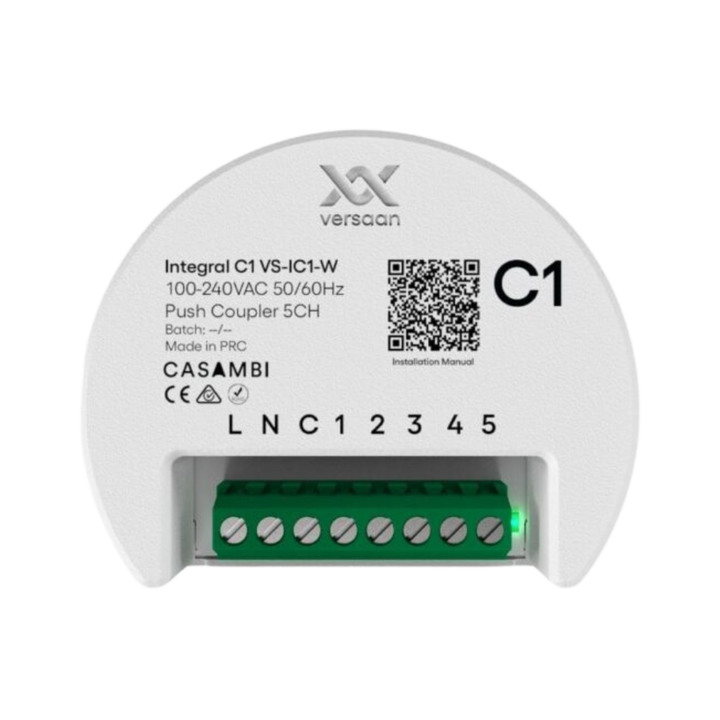

Versaan Integral C1 Casambi Push Coupler
The Versaan Integral C1 is a compact Casambi push-button interface designed for installation in switch boxes and other confined spaces. It provides five push-button inputs, allowing conventional momentary wall switches to become programmable controls within a Casambi wireless lighting network.
Key Features
- 5 programmable push-button inputs
- Casambi wireless control with Long Range support
- Push buttons can be configured for on/off, dimming, scenes and other Casambi functions
- Compact enclosure suitable for switch-box installation
- Loop-in / loop-out wiring
- Built-in identification LED for commissioning
- Optional Integral Surface Kit available for surface mounting
Technical Specifications
| Brand | Versaan |
| Model / SKU | VS-IC1-W |
| Series | Integral C1 |
| Control | Casambi |
| Supply | 100–240VAC, 50/60Hz |
| Inputs | 5 × Push Buttons |
| Input Type | Live / Energised |
| Wireless Range | 98m / Long Range 180m (open area, line-of-sight) |
| Dimensions | 52 × 42.51 × 22 mm |
| Operating Temperature | 0°C to 55°C |
| Wiring | Loop in / Loop out |
| Terminal Capacity | 1.5 mm² |
| Material | Flame-retardant ABS + PC |
| IP Rating | IP20 |
| Transceiver Frequency | 2.4GHz ISM Band |
| Warranty | 5 Years |
| Colour | White |
