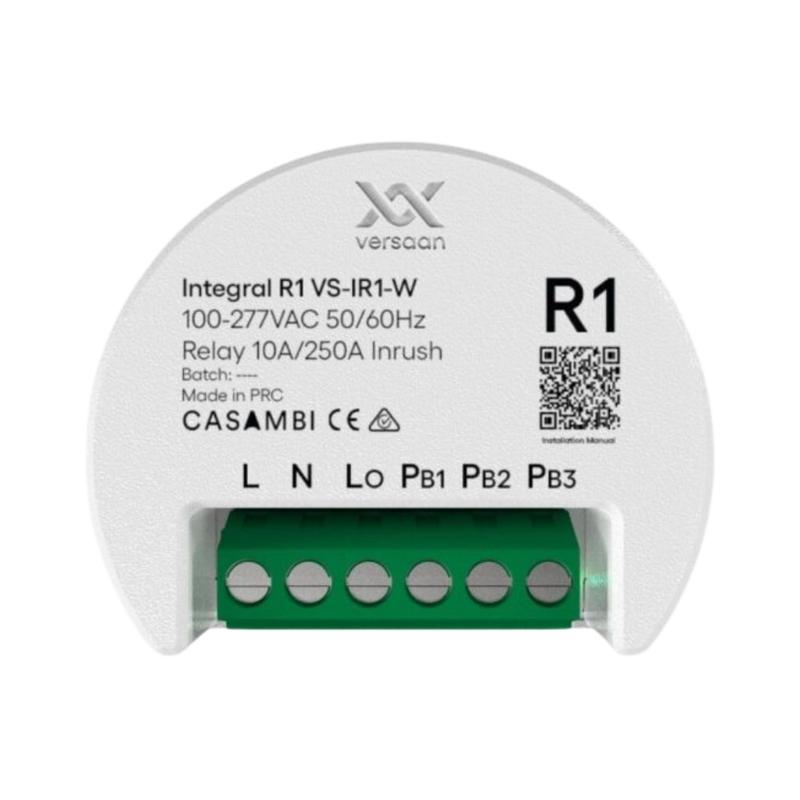

Versaan Integral R1 Casambi Relay Controller
The Versaan Integral R1 is a compact Casambi wireless relay controller designed for reliable on/off control of lighting and other compatible electrical loads. It supports loads up to 10A and high inrush currents, making it well suited to LED lighting applications.
Key Features
- 1-channel Casambi relay output
- 10A switching capacity for capacitive, inductive and resistive loads
- High inrush capability: 250A/1ms and 140A/10ms
- 3 programmable push-button inputs
- Casambi wireless control with Long Range support
- Compact enclosure suitable for switch-box installation
- Loop-in / loop-out wiring
- Optional Integral Surface Kit available for surface mounting
Technical Specifications
| Brand | Versaan |
| Model / SKU | VS-IR1-W |
| Series | Integral R1 |
| Control | Casambi including Long Range |
| Supply | 100–277VAC, 50/60Hz |
| Output | 1 × Relay, 10A |
| Supported Load Types | Capacitive, Inductive & Resistive |
| Maximum Inrush Current | 250A/1ms, 140A/10ms |
| Push-Button Inputs | 3 |
| Wireless Range | 98m / Long Range 180m (open area, line-of-sight) |
| Dimensions | 52 × 42.51 × 22 mm |
| Operating Temperature | 0°C to 55°C |
| Wiring | Loop in / Loop out |
| Terminal Capacity | 2.5 mm² |
| Material | Flame-retardant ABS + PC |
| IP Rating | IP20 |
| Transceiver Frequency | 2.4GHz ISM Band |
| Warranty | 5 Years |
| Colour | White |
