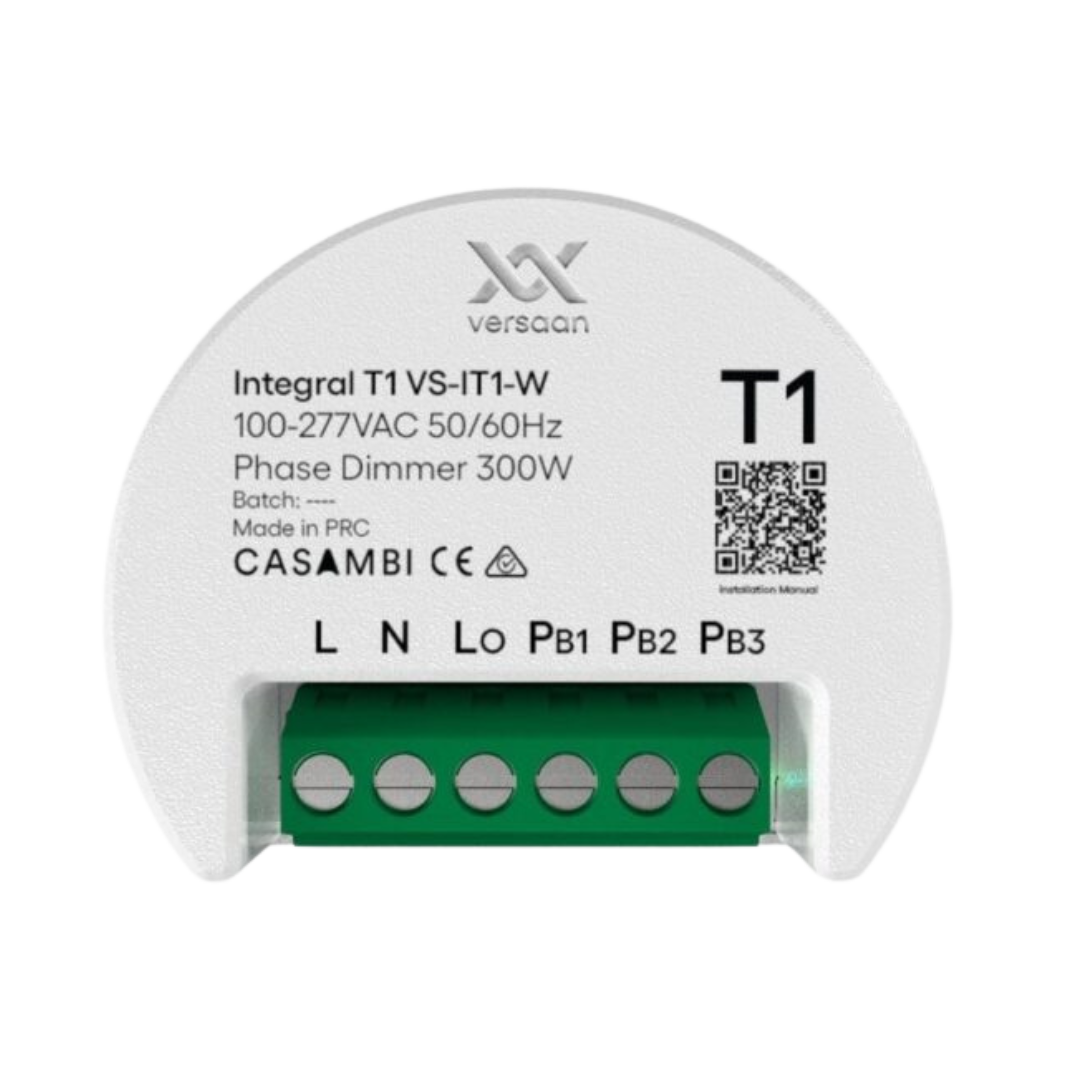

Versaan Integral T1 Casambi Phase Dimmer
The Versaan Integral T1 is a compact high-performance Casambi wireless phase dimmer for traditional dimmable luminaires. It provides trailing-edge phase dimming up to 300W and supports high inrush currents, while three push-button inputs provide flexible local control alongside Casambi scenes and automation.
Key Features
- Trailing-edge phase dimming up to 300W
- Casambi wireless control with Long Range support
- 3 programmable push-button inputs
- Maximum inrush current: 90A @ 1ms
- Protection against overvoltage, overcurrent, overheat, short circuit and surge
- Soft start and zero-crossing protection
- Compact enclosure suitable for switch-box installation
- Loop-in / loop-out wiring
- Optional Integral Surface Kit available for surface mounting
Technical Specifications
| Brand | Versaan |
| Model / SKU | VS-IT1-W |
| Series | Integral T1 |
| Control | Casambi including Long Range |
| Supply | 100–277VAC, 50/60Hz |
| Output | 300W Phase Dim |
| Dimming Type | Trailing Edge |
| Maximum Phase-Dim Output | 1.36A Capacitive / 1.36A Resistive |
| Maximum Inrush Current | 90A @ 1ms |
| Push-Button Inputs | 3 |
| Wireless Range | 98m / Long Range 180m (open area, line-of-sight) |
| Dimensions | 52 × 42.51 × 22 mm |
| Operating Temperature | 0°C to 55°C |
| Wiring | Loop in / Loop out |
| Terminal Capacity | 2.5 mm² |
| Material | Flame-retardant ABS + PC |
| IP Rating | IP20 |
| Transceiver Frequency | 2.4GHz ISM Band |
| Warranty | 5 Years |
| Colour | White |
