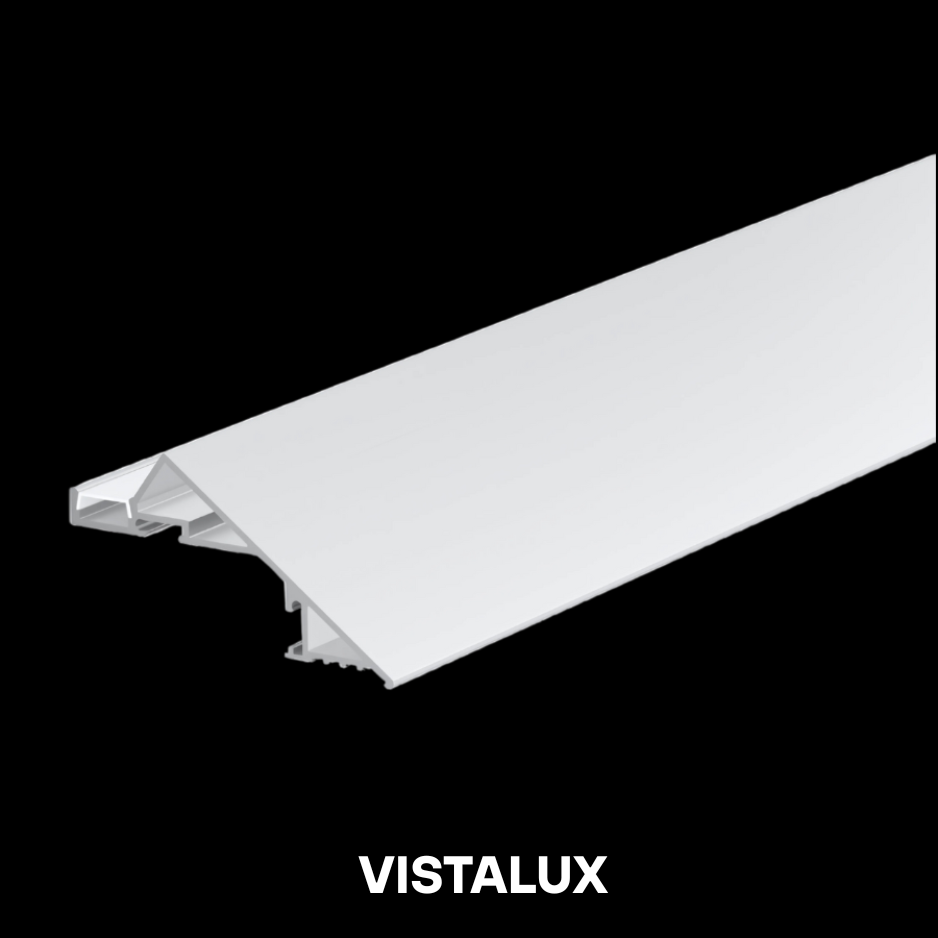

VISTALUX 3600MM

The VISTALUX 3600MM is a compact and elegant angled recessed aluminum LED profile, designed for modern false ceilings, coves, and architectural edge lighting. With a clean triangular form and sharp beam direction, it offers a sleek finish and powerful indirect lighting effect.

Product Specifications:

• Overall Dimensions:

  • Width: 72.1 mm

  • Height: 38.1 mm (main body), 21.3 mm (inner side)

• Standard Length: 3600 mm

• LED Strip Compatibility: 8 mm width

• Beam Angle: 120°

• Diffuser Options:

  • Black

  • Clear

  • Frosted

  • Milky

Key Features:

• Angled Output Design – Projects light diagonally, perfect for ceiling edges and accent lighting.

• Flush PoP Finish – Seamlessly blends into gypsum or PoP structures, concealing the profile completely.

• Slim and Minimalist Look – Offers a clean architectural detail ideal for high-end residential and commercial spaces.

• Enhanced Light Diffusion – Multiple diffuser types allow control over brightness, glare, and ambiance.

• High Efficiency – Ideal for ambient and mood lighting with even light distribution.

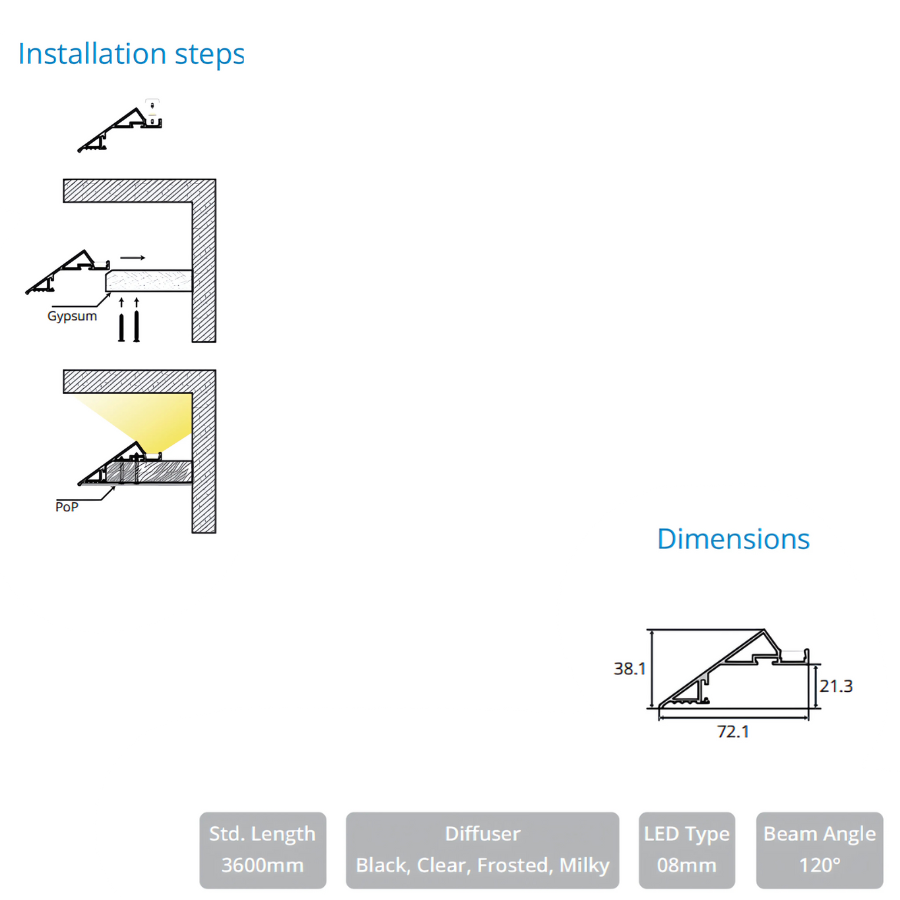

Installation Steps (as shown):

1. Profile Preparation – LED strip and diffuser are pre-installed in the profile.

2. Gypsum/PoP Recessing – The profile is fitted into a prepared gypsum structure and locked in place.

3. Finishing with PoP – Edges are concealed with plaster for a hidden-light appearance.

4. Lighting Activated – Light reflects off the ceiling for a soft indirect effect.

Applications:

• False ceiling edges and trims

• Cove and soffit lighting

• Feature walls and corners

• Retail stores, offices, hotels, and residences

• Architectural light detailing
