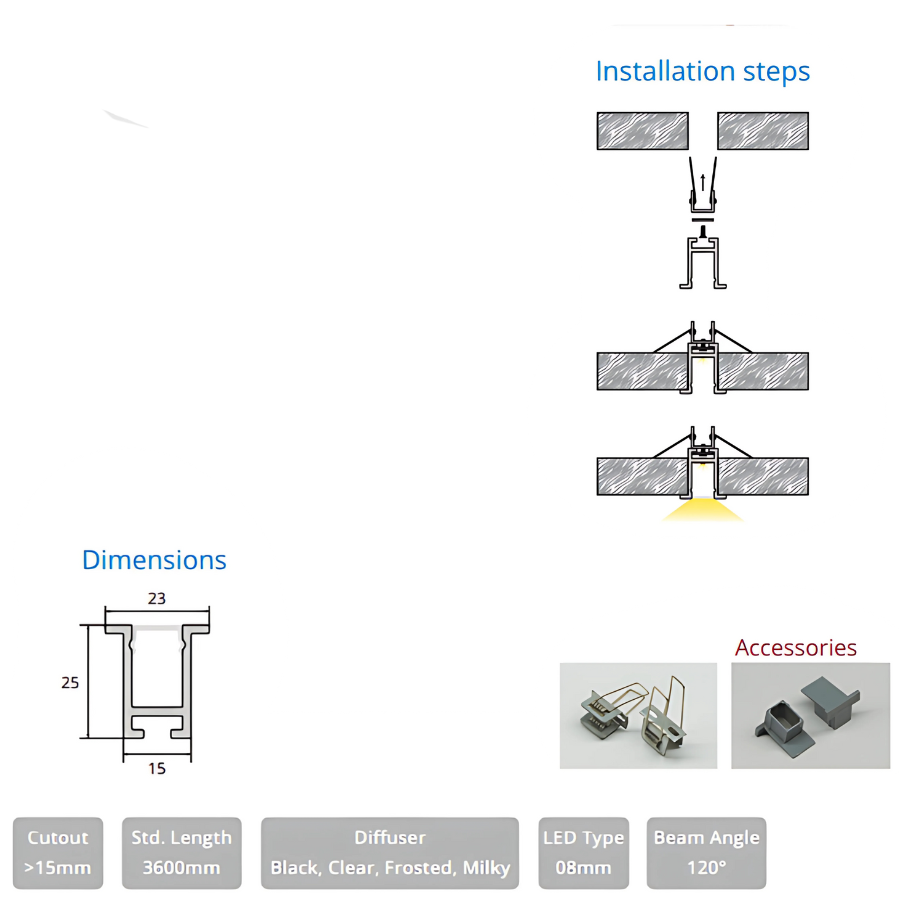

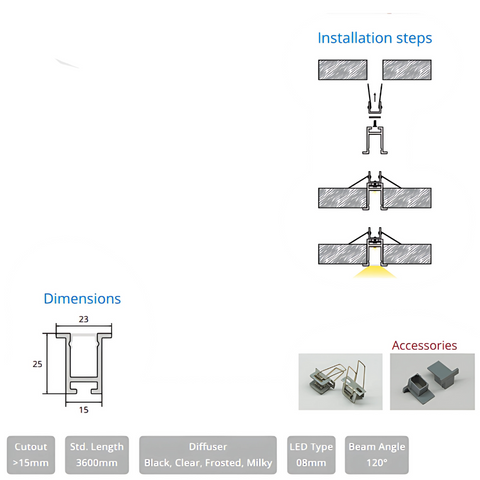

Installation Steps: The top section clearly illustrates a recessed installation method. The profile, shaped like a "U" with a distinct wide top flange, is designed to be inserted into a cutout in a surface (likely ceiling or wall). The diagram shows clips being used to secure it firmly, resulting in a flush installation where only the top surface of the profile and its diffuser are visible. The final step shows light emitting from the installed profile.
Dimensions: A cross-sectional diagram provides the measurements: 25mm in height. The base width that slots into the cutout is 15mm, while the overall width of the top flange is 23mm. These dimensions indicate a relatively deep and stable profile, suitable for a clean, recessed appearance.
Cutout Requirement: The "Cutout >15mm" specification confirms the required width for the recess, corresponding to the base of the profile.
Standard Length: It comes in a "Std. Length 3600mm" (3.6 meters), which is a longer standard length than typical, allowing for fewer visible joints over extended runs and a more seamless appearance.
Diffuser Options: Available diffusers include "Black, Clear, Frosted, Milky," offering extensive versatility in light diffusion and aesthetic. The "Milky" option suggests a very even, diffused light output that effectively hides individual LED points.
LED Type: Designed for "LED Type 08mm" (likely referring to the width or type of LED strip it accommodates), allowing for a good balance of light output and discreet integration.
Beam Angle: A "Beam Angle 120°" indicates a wide, general illumination, ideal for broad and uniform light distribution, consistent with a "Glow" name.
Accessories: Images show two types of accessories:
Spring clips: These are likely used for secure and easy installation within the cutout.
End caps: These provide a clean, finished appearance for the ends of the profile when it's not butted against another section.
Overall Impression:

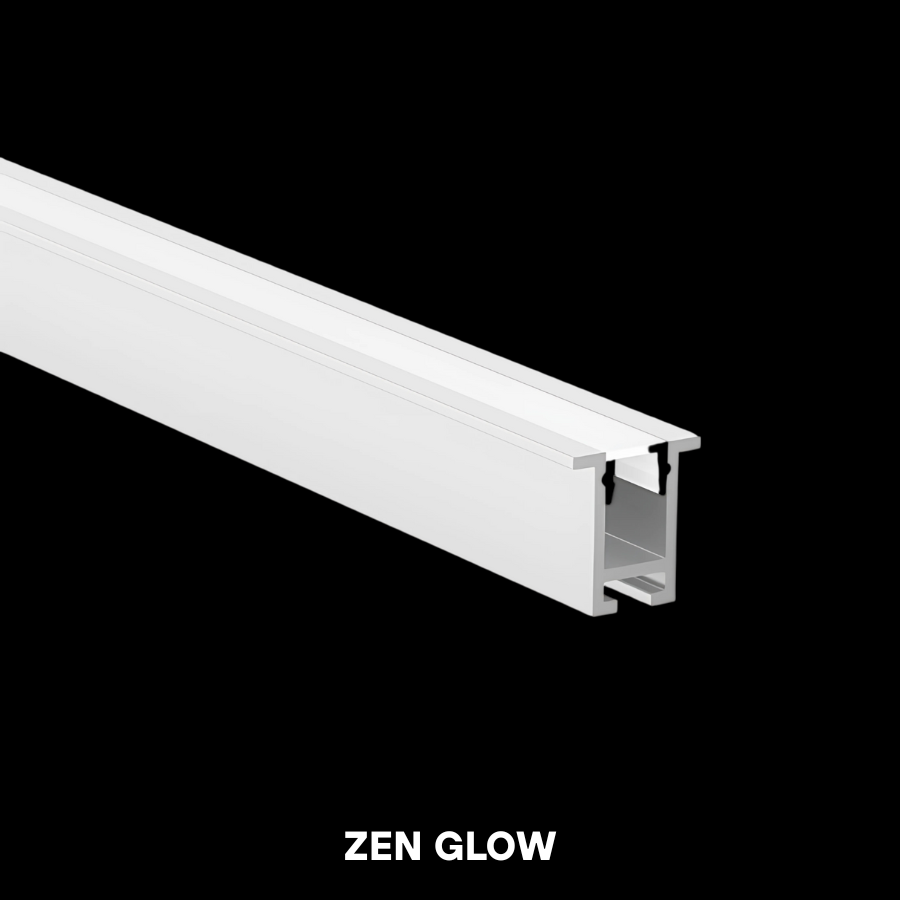

The "ZEN GLOW" is a well-designed and versatile recessed linear lighting profile. Its relatively deep and wide profile, combined with secure clipping mechanisms, ensures a stable and flush installation. The comprehensive range of diffuser options, wider LED compatibility (8mm), and longer standard length make it highly adaptable for creating continuous, seamless lines of wide-angle illumination in a variety of architectural and interior design settings. The "Zen Glow" name evokes a sense of calm, even, and subtle illumination, fitting its integrated design.
