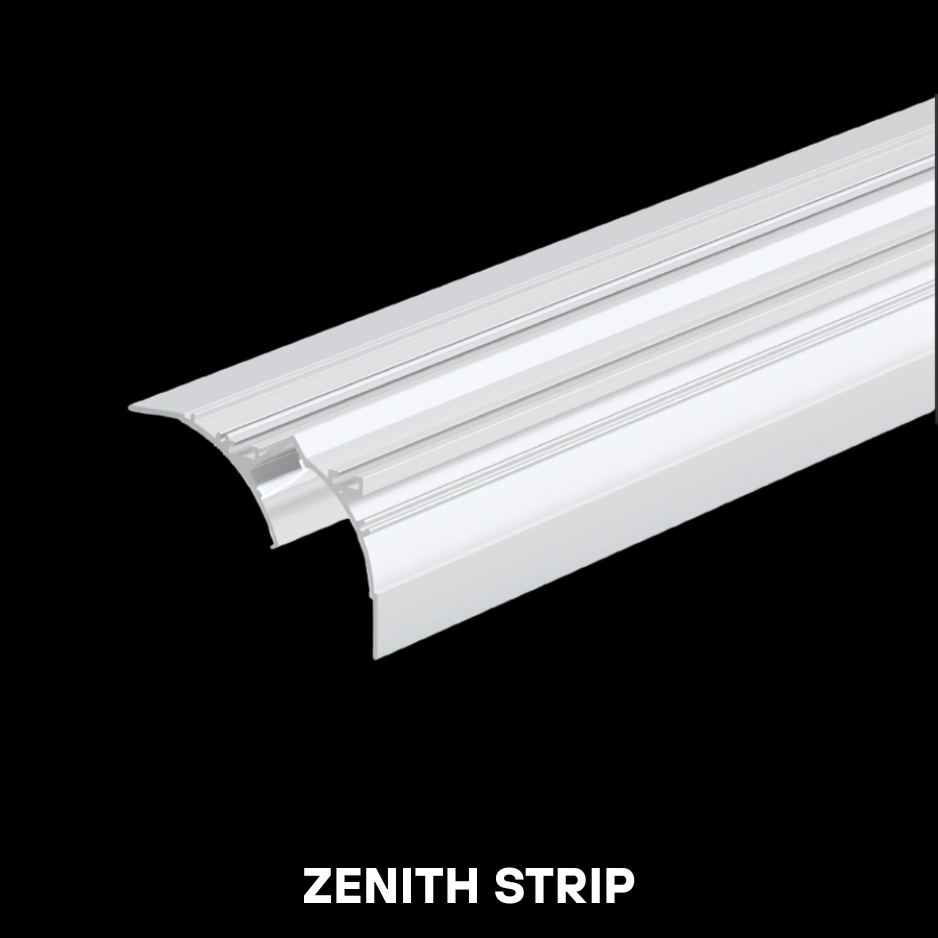

ZENITH STRIP 3600MM

The ZENITH STRIP 3600MM is a premium-grade, large-sized curved aluminum LED profile, purpose-built for seamless integration in cove and corner ceiling applications. Its bold curvature and wide dimensions make it ideal for delivering high-performance, indirect ambient lighting in large spaces.

Product Specifications:

• Overall Dimensions:

  • Width: 95.3 mm

  • Height: 71 mm

• Standard Length: 3600 mm

• LED Strip Compatibility: 10 mm width

• Beam Angle: 120°

• Diffuser Options:

  • Black

  • Clear

  • Frosted

Key Features:

• Oversized Curved Profile – Designed for broader light spread and architectural prominence in large-scale spaces.

• Seamless Recessed Finish – Cleanly integrates into ceilings with PoP (Plaster of Paris) for a flush, elegant look.

• Customizable Light Output – Multiple diffuser choices allow control over brightness, diffusion, and ambiance.

• Superior Thermal Management – Robust aluminum construction ensures extended LED strip lifespan and performance.

• Wide 120° Beam Spread – Provides uniform illumination over larger surface areas, ideal for mood and general lighting.

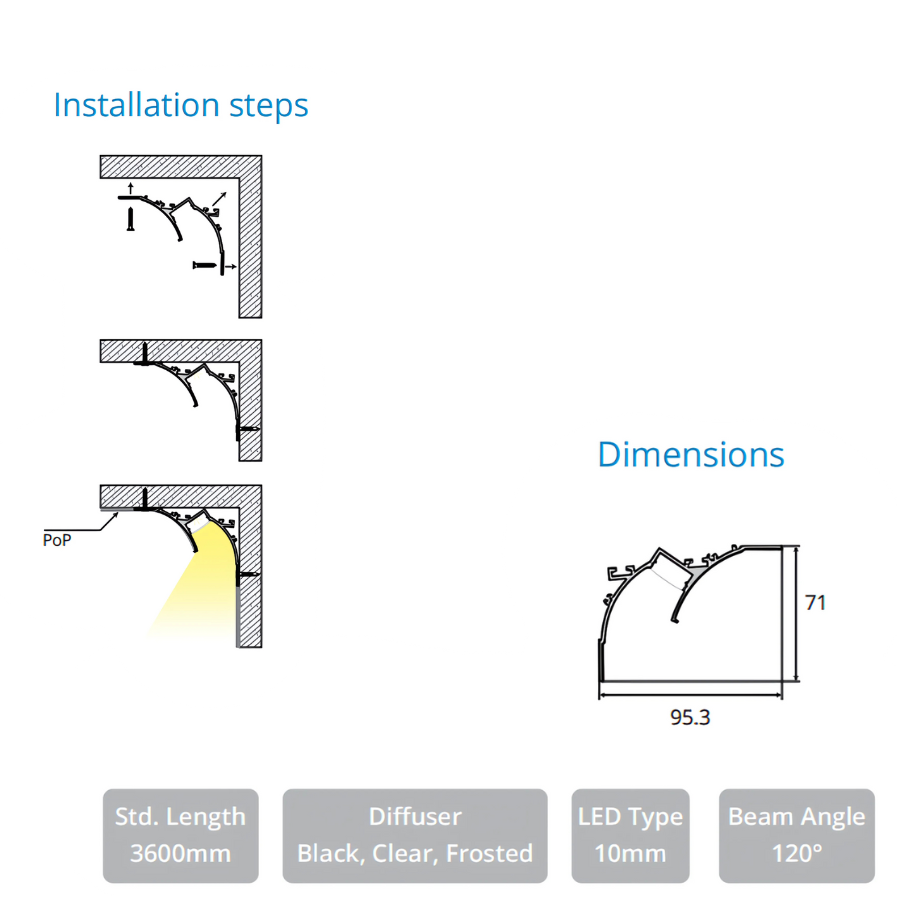

Installation Steps (as illustrated):

1. Initial Profile Placement – Insert the LED strip and snap in the selected diffuser.

2. Mount into Ceiling – Recess the profile into the ceiling structure.

3. Apply PoP Finishing – Smoothly blend the profile into the surrounding surface for a hidden-light effect.

4. Enjoy Indirect Illumination – Emits a wide beam of soft, glare-free light for elegant ambient lighting.

Applications:

• High-end residential coves and false ceilings

• Commercial lobbies, lounges, and corridors

• Hospitality lighting (hotels, restaurants, resorts)

• Retail store atmospheres and premium showrooms

• Designer ceilings and premium interiors
