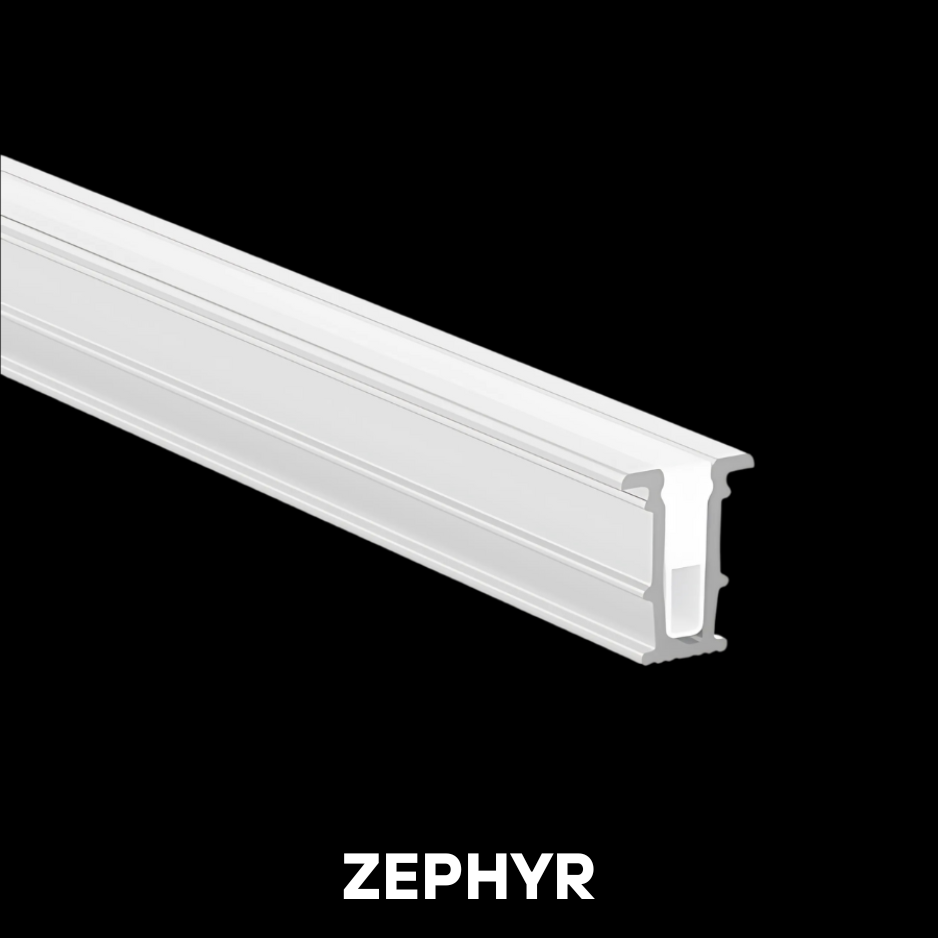

ZEPHYR 09MM

The ZEPHYR 09MM is a recessed linear LED aluminum profile designed for minimalist and seamless lighting applications. It features a narrow build and flexible installation, perfect for modern interiors requiring clean, embedded lighting effects.

Key Features:

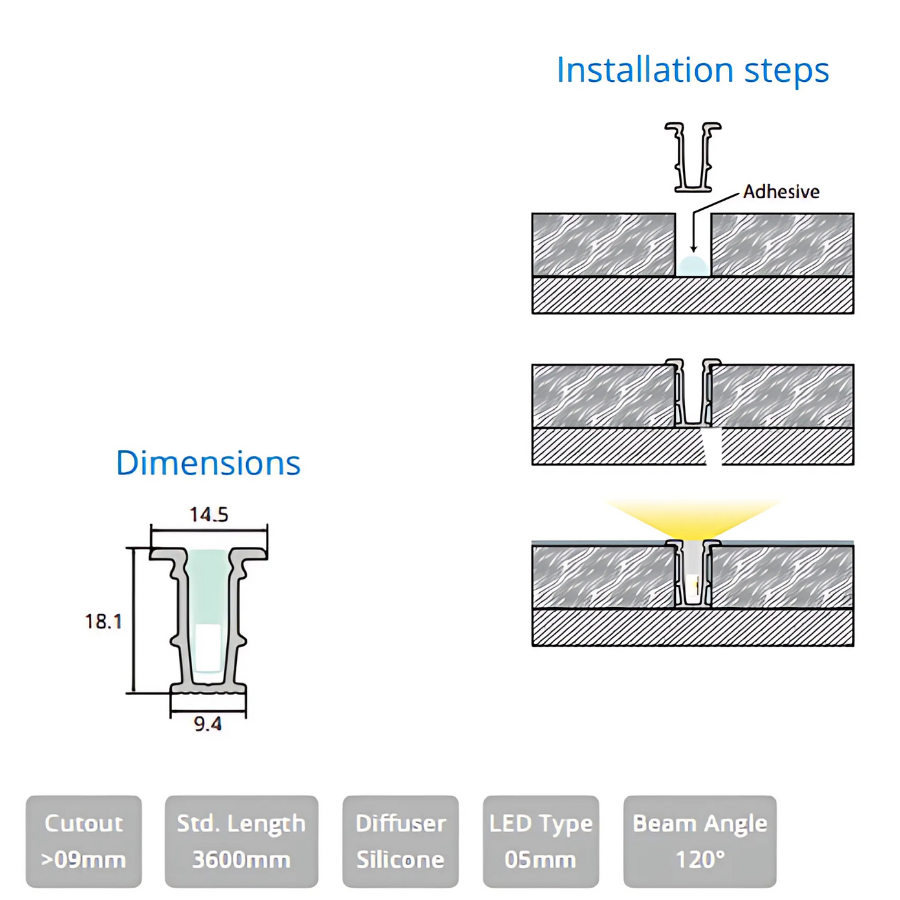

🛠️ Installation Steps (Top Right):

• The profile is installed directly into a pre-cut channel using adhesive.

• Once placed into the cutout, it fits flush with the surface, creating a clean and integrated lighting finish.

• Emits uniform illumination once the LED strip is powered on.

📐 Dimensions (Bottom Left):

• Width: 14.5 mm

• Height: 18.1 mm

• Base Width: 9.4 mm

• Cutout Requirement: >9 mm

⚙️ Construction Details:

• Compact and slim body suitable for tight grooves in wooden panels, false ceilings, furniture, or wall fixtures.

Technical Specifications:

Applications:

• Ideal for residential and commercial spaces like:

  • Modular furniture

  • Kitchen cabinets

  • Display shelves

  • Wall panel grooves

  • Retail and hospitality interiors

This model is perfect for designers seeking low-profile lighting with high visual comfort and a premium flush finish.
