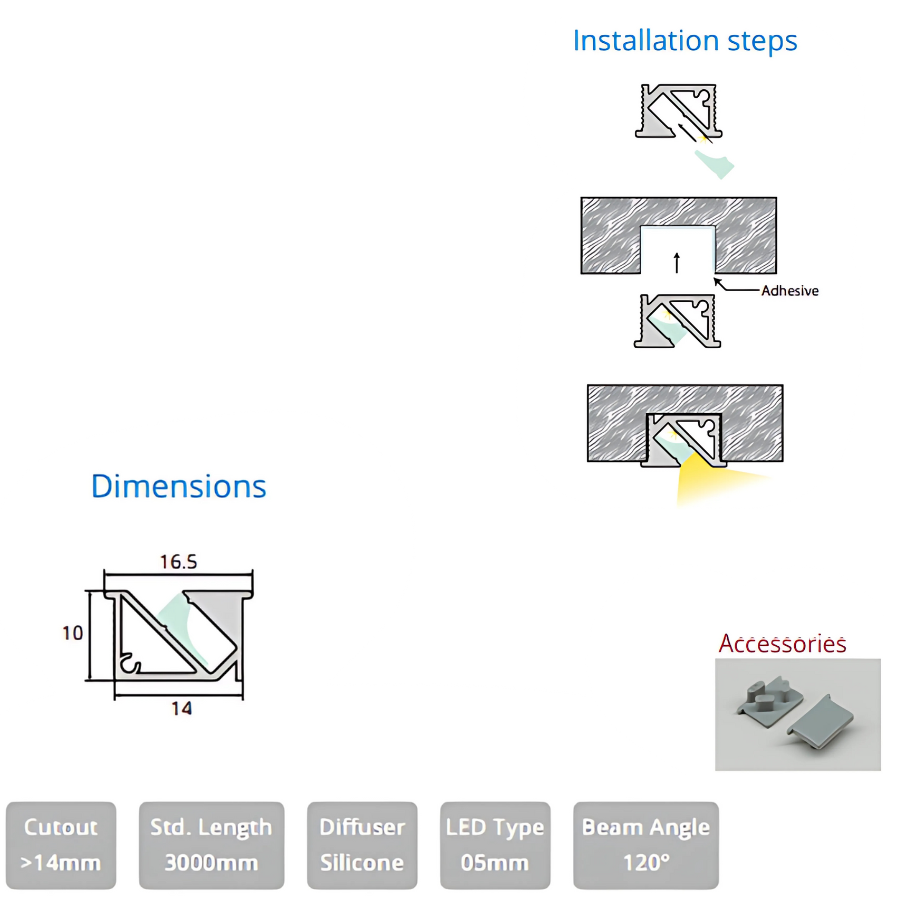

Installation Steps: The top section illustrates a simple recessed installation process. The profile appears to be designed to be inserted into a cutout in a surface (like a wall or ceiling) and secured, possibly with adhesive as indicated, allowing the light to emit from a subtle, angled opening.
Dimensions: A cross-sectional diagram provides precise measurements: 10mm in height, 14mm in width at the base, and 16.5mm at its widest point. This confirms it's an extremely slim and low-profile fixture.
Cutout Requirement: The "Cutout >14mm" specification indicates the minimum size of the recess needed for installation, matching the base width of the profile.
Standard Length: It comes in a "Std. Length 3000mm" (3 meters).
Diffuser Type: Uniquely, it specifies a "Diffuser Silicone," suggesting a flexible and possibly highly durable or water-resistant material for light diffusion.
LED Type: Designed for "LED Type 05mm" (likely referring to the width or type of LED strip it accommodates).
Beam Angle: A "Beam Angle 120°" indicates a wide, general illumination, suitable for broad lighting coverage.
Accessories: An image shows small clips, which are likely mounting clips for securing the profile within the cutout.
Overall Impression:

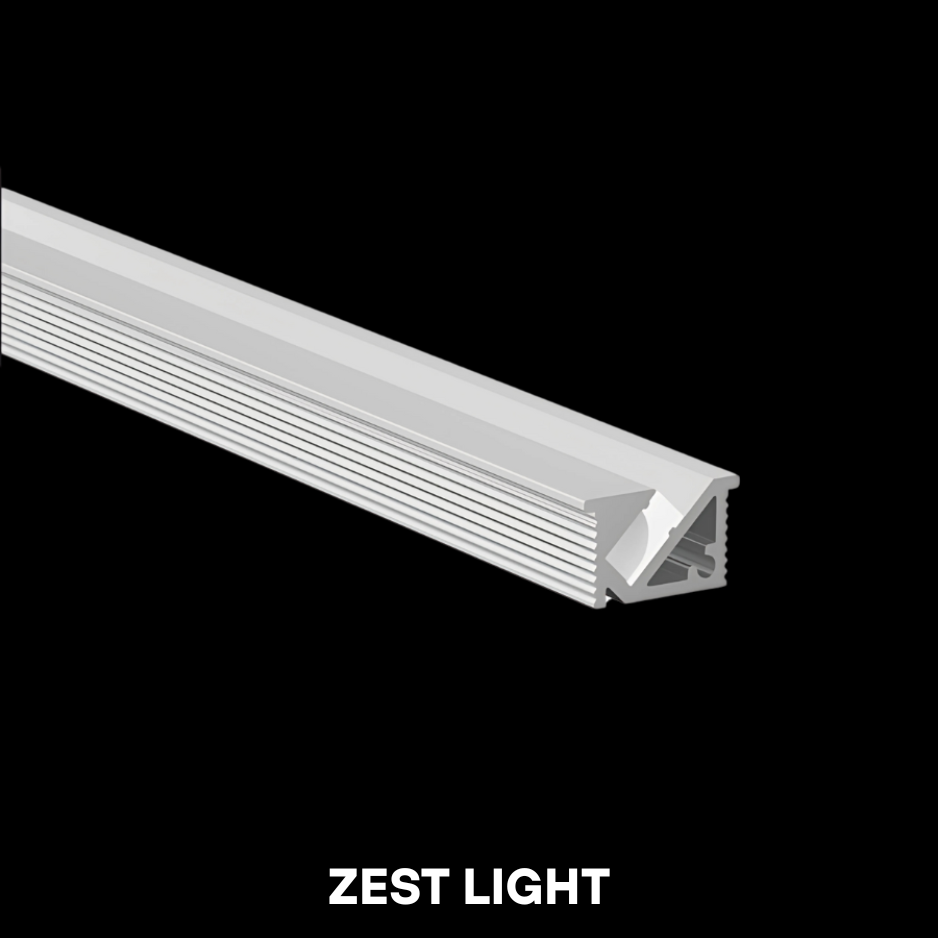

The ZEST LIGHT profile is an exceptionally compact and discreet recessed lighting solution. Its minimal dimensions and silicone diffuser make it suitable for applications where a subtle, continuous line of wide-angle light is desired without a prominent fixture. The design suggests it could be ideal for highlighting architectural features, providing ambient light from hidden coves, or integrating into furniture and display units. The silicone diffuser might also imply suitability for environments where a more robust or flexible diffuser material is beneficial.
