ZODIAC 8W–30W Round Recessed LED Downlight
Tax excluded. Shipping calculated at checkout
ZODIAC · 8W / 15W / 20W / 30W
ZODIAC is a round recessed LED downlight family in 8W, 15W, 20W and 30W, with a 38° beam, CRI 80+ and white or black body. Choose the listed True-driver, RF, Smart, True DALI DT6 and True DALI DT8 configurations.

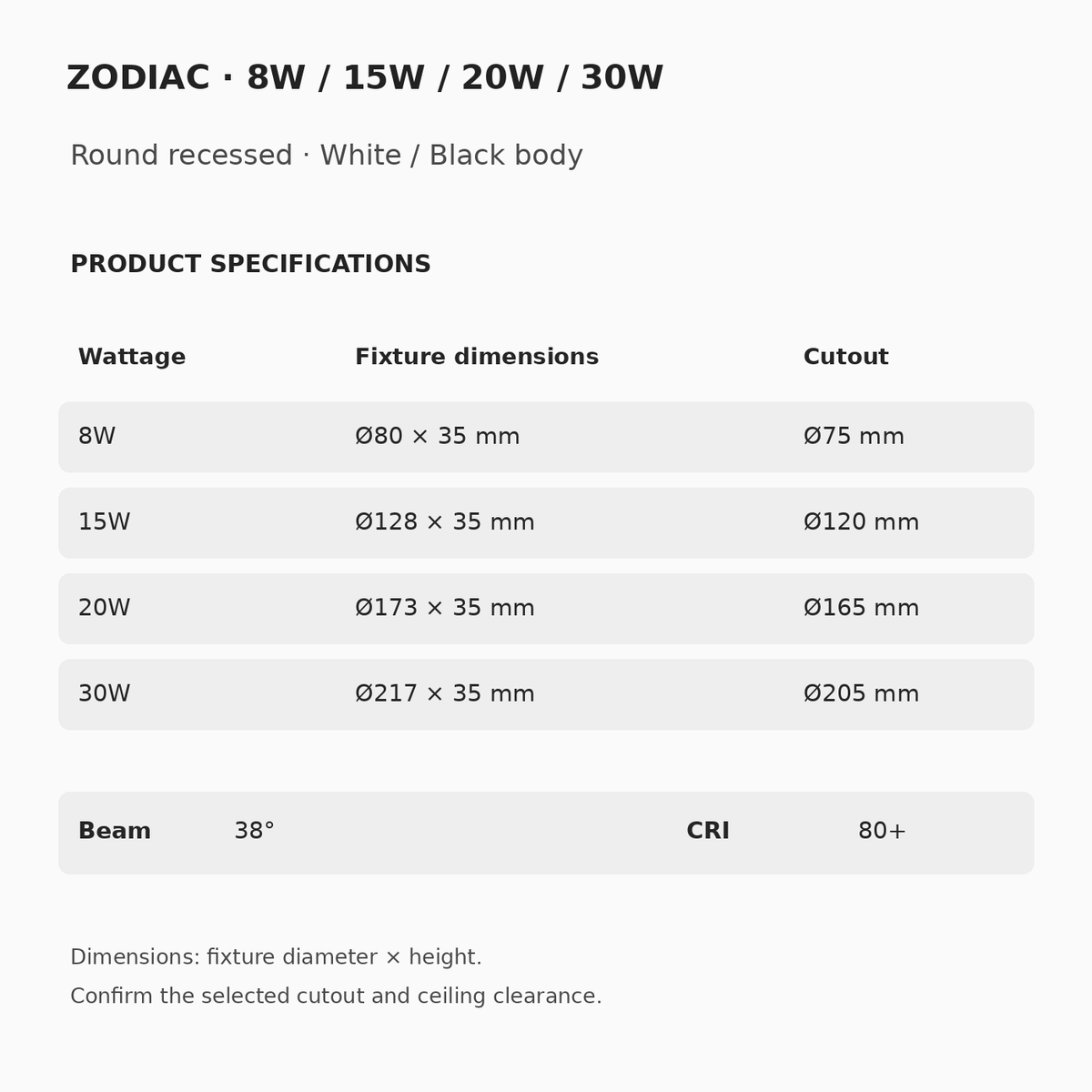

Product specifications
| Wattage | Dimensions | Cutout |
|---|---|---|
| 8W | Ø80 × 35 mm | Ø75 mm |
| 15W | Ø128 × 35 mm | Ø120 mm |
| 20W | Ø173 × 35 mm | Ø165 mm |
| 30W | Ø217 × 35 mm | Ø205 mm |
Beam options: 38°. CRI: 80+. These specifications apply to every listed wattage.
Fixture dimensions are diameter × height. All sizes are 35 mm high. Match the wattage-specific ceiling cutout and confirm the selected mounting template before cutting. Allow separate space for the selected driver, wiring and installation clearance.
Body and reflector finish
The Body Finish selector specifies the white or black body colour. Separate trim and reflector finishes, independent body/reflector combinations and finish-specific surcharges are not confirmed for this listing.

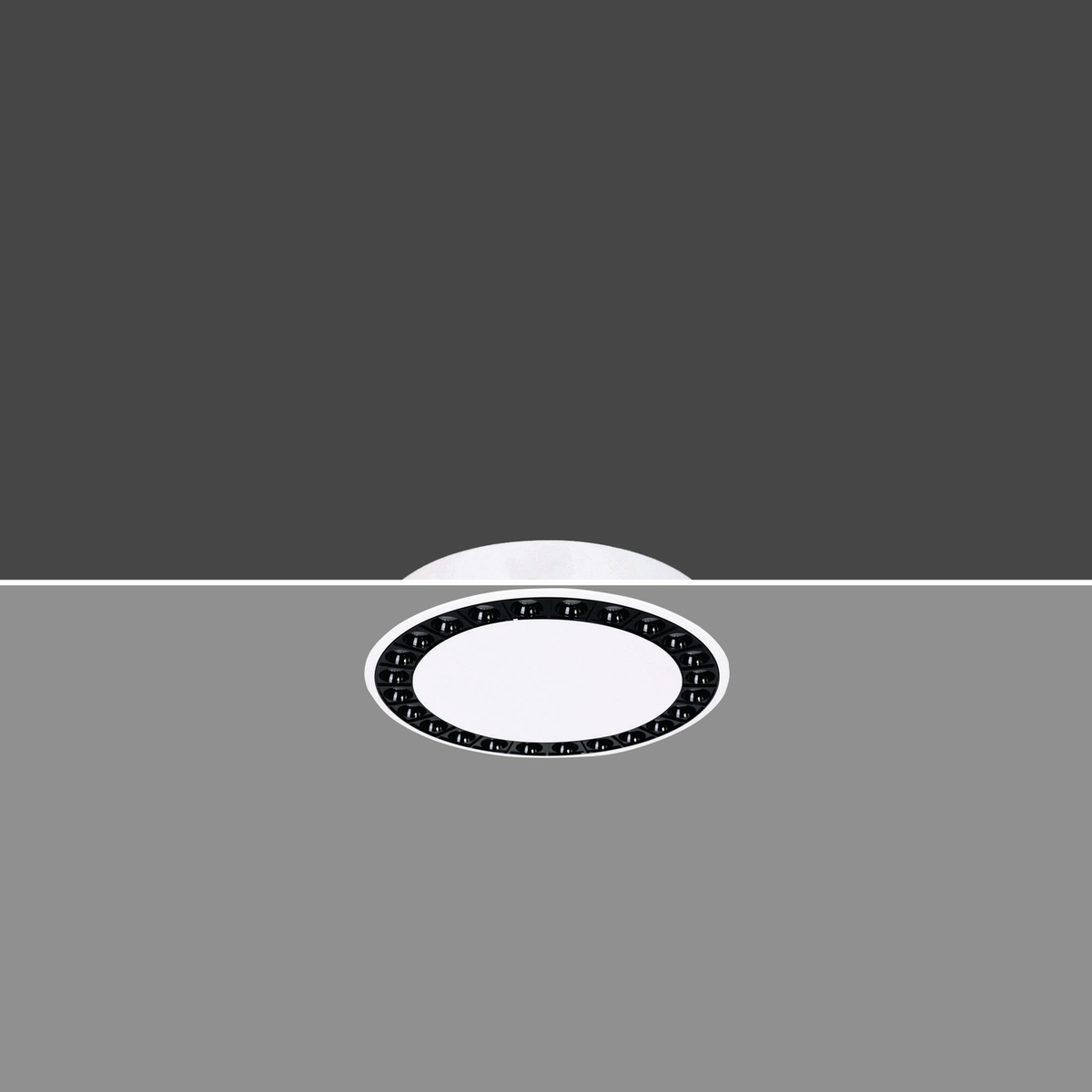

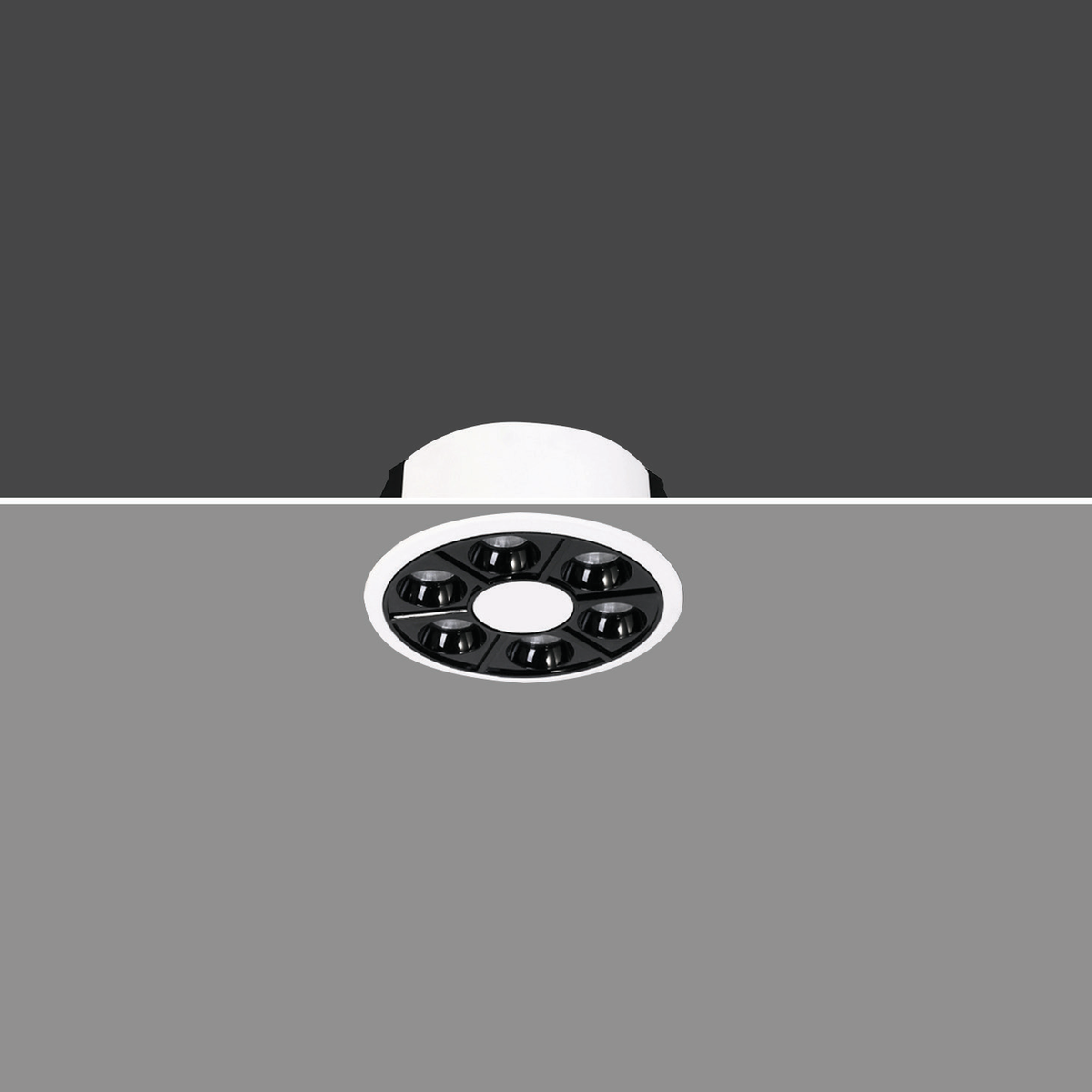

The original white-body photographs show the smaller and larger ZODIAC optical layouts without assigning an individual wattage to either image. They remain unassigned family references. Black-body photographs are unavailable.
Light colour and control
- Fixed white: 3000K, 4000K or 6000K with a True LED driver. Available for 8W, 15W, 20W, 30W.
- CCT-RF: Tunable white with RF remote control. The numeric tuning range is not confirmed. Available for 8W, 15W, 20W, 30W.
- Smart: Alexa/Tuya smart-control configuration. No fixed colour temperature is specified for this option. Available for 8W, 15W, 20W, 30W.
- DALI DT6: Fixed white with a True DT6 driver. Choose 3000K, 4000K or 6000K. Available for 8W, 15W, 20W, 30W.
- DALI DT8: Tunable white with a True DT8 driver. The numeric tuning range is not confirmed. Available for 8W, 15W, 20W, 30W.
DALI configurations require a compatible DALI control system. Confirm controller and accessory requirements for your installation.
Configuration prices excluding GST
8W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹1,694.00 |
| CCT-RF remote | ₹3,470.50 |
| Alexa/Tuya smart | ₹3,676.20 |
| DALI / True DT6 | ₹3,973.20 |
| DALI Tunable / True DT8 | ₹5,426.30 |
15W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹2,458.50 |
| CCT-RF remote | ₹5,529.70 |
| Alexa/Tuya smart | ₹5,735.40 |
| DALI / True DT6 | ₹4,697.00 |
| DALI Tunable / True DT8 | ₹7,485.50 |
20W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹3,388.00 |
| CCT-RF remote | ₹8,145.50 |
| Alexa/Tuya smart | ₹8,352.30 |
| DALI / True DT6 | ₹5,986.20 |
| DALI Tunable / True DT8 | ₹9,856.00 |
30W
| Configuration | Unit price |
|---|---|
| Fixed white / True driver | ₹5,423.00 |
| CCT-RF remote | ₹10,906.50 |
| Alexa/Tuya smart | ₹11,113.30 |
| DALI / True DT6 | ₹7,980.50 |
| DALI Tunable / True DT8 | ₹12,617.00 |
Prices apply to the listed body finishes. Unconfirmed configurations are not offered as purchasable variants.
What is included
The configuration price covers the selected light and corresponding driver/control configuration. Confirm any separately required controllers and accessories before ordering.
Before you order
GST is additional. Check the selected wattage’s ceiling cutout, fitting dimensions and available ceiling space with your installer. Confirm body finish, light colour and control requirements. Contact Imperial Emporio for project quantities, dispatch estimates and warranty terms.
